2.3 Efficiency

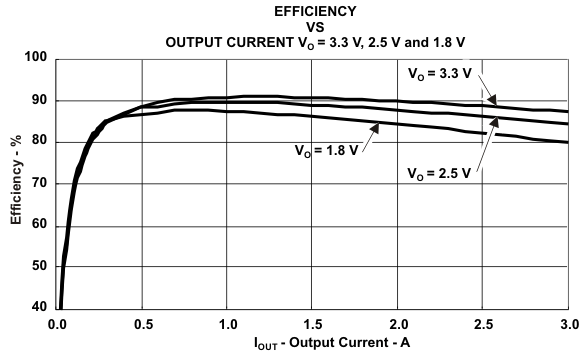

Figure 2-2 shows the efficiency for the TPS54325EVM at an ambient temperature of 25°C. The EVM was modified for operation at 3.3-, 2.5- and 1.8-V output using the R1 and R4 values inTable 1-3.

GUID-204D6654-D6B2-4381-8979-97B1798C2C77-low.gifFigure 2-2 TPS54325EVM Efficiency
