8.2.3 Application Curves

Figure 48 and Figure 49 show the measured LI to LO turn-on and turn-off delay of one UCC27712-Q1 device. Channel 3 depicts LI and Channel 4 LO.

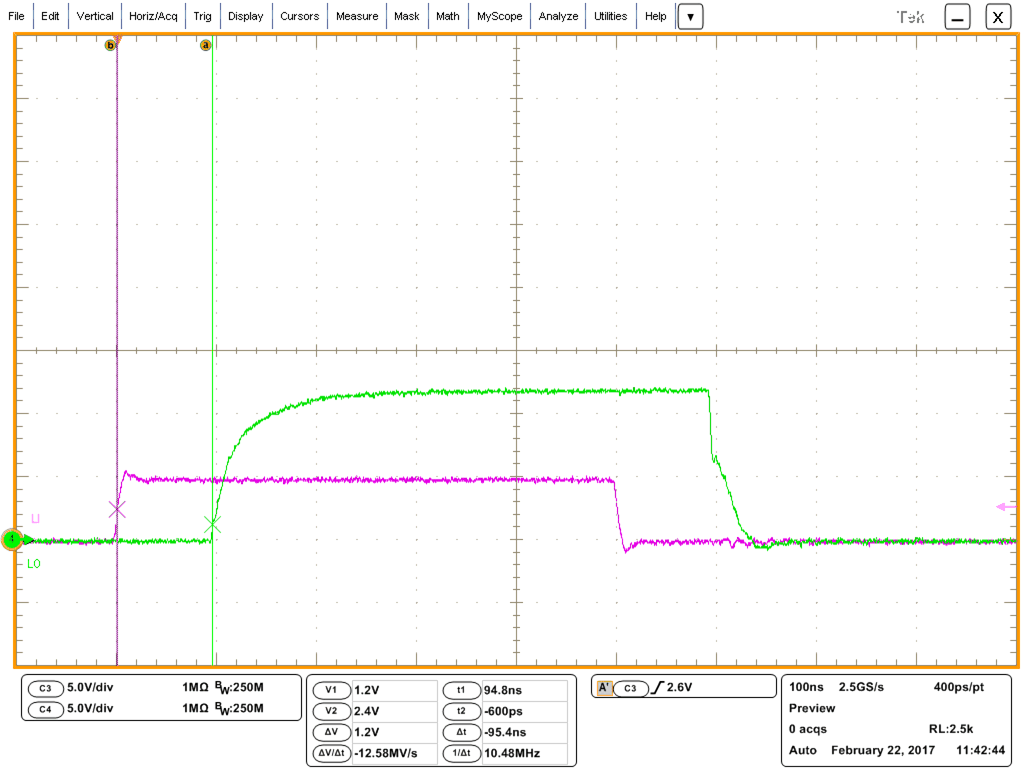

UCC27712-Q1 app1_slusce9.gifFigure 48. LI to LO Turn-On Propagation Delay

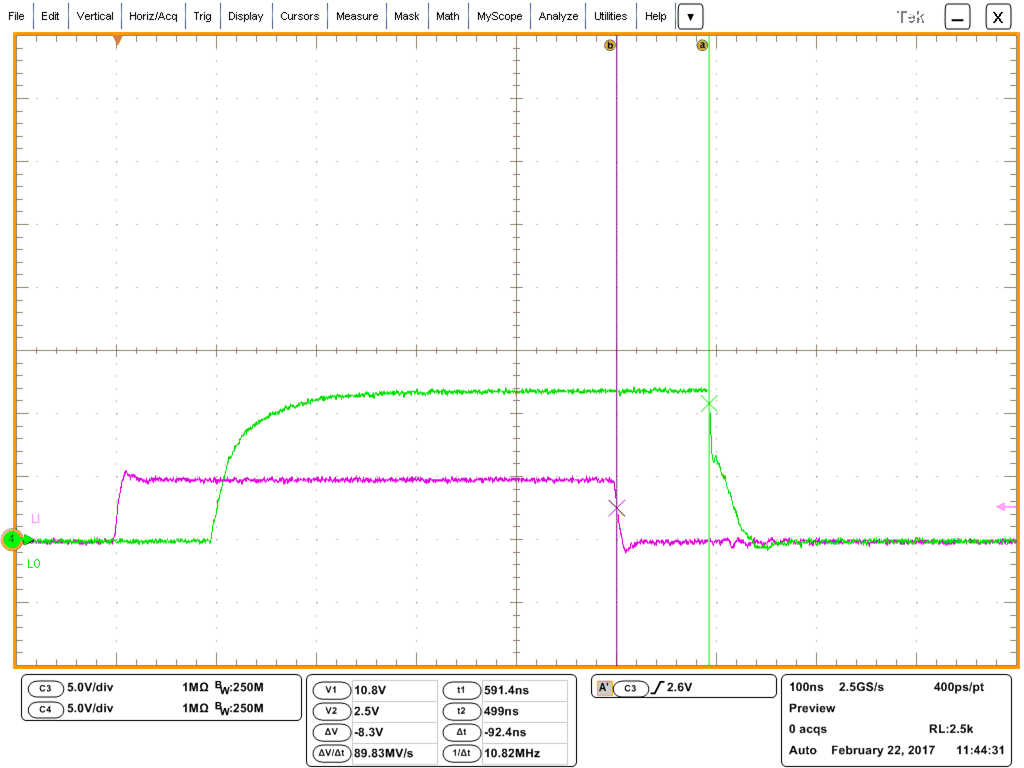

UCC27712-Q1 app2_slusce9.gifFigure 49. LI to LO Turn-Off Propagation Delay

Figure 50 and Figure 51 show the measured HI to HO turn-on and turn-off delay of one UCC27712-Q1 device. Channel 1 depicts HI and Channel 2 HO.

UCC27712-Q1 app3_slusce9.gifFigure 50. HI to HO Turn-On Propagation Delay
UCC27712-Q1 igbtscope_slusce9.gifFigure 52. MOSFET Sync-Buck Operating at 400 V and 150 W
UCC27712-Q1 app4_slusce9.gifFigure 51. HI to HO Turn-Off Propagation Delay

Figure 52 shows UCC27712-Q1 operating in a high voltage sync-buck. Channel 1 depicts inductor current, Channel 2 high side MOSFET VGS, Channel 3 low side MOSFET VGS, and Channel 4 high voltage switch node.
