Minimum Input Pulse Operation

The UCC27712-Q1 device has a minimum turn-on, turn-off pulse transfer function to the output pin from the input pin. This function ensures UCC27712-Q1 is in the correct state when the input signal is very narrow. The function is summarized in Figure 36 and Figure 37. The tON which is 25 ns typical is shown in Figure 36 and tOFF which is 35ns typical is shown in Figure 37

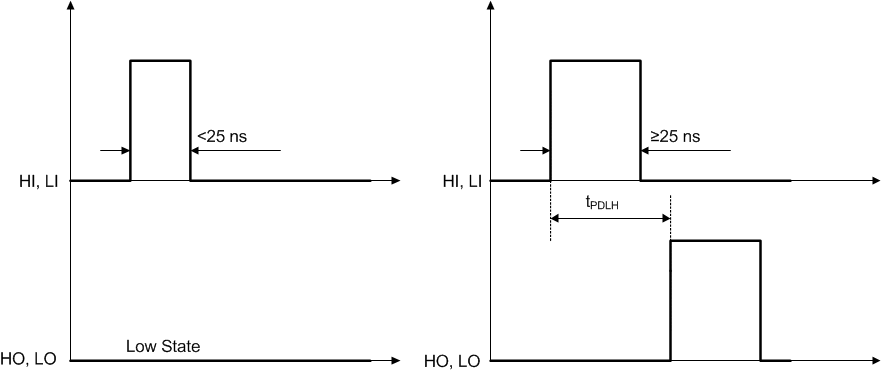

UCC27712-Q1 minton_slusce9.gifFigure 36. Minimum Turn-On Pulse
UCC27712-Q1 mintoff_slusce9.gifFigure 37. Minimum Turn-Off Pulse
