7 Parameter Measurement Information

7.1 Control Methods and Test Circuits

UC28023 UC28025 voltage_mode_control_slus557.gif Figure 7. Voltage Mode Control

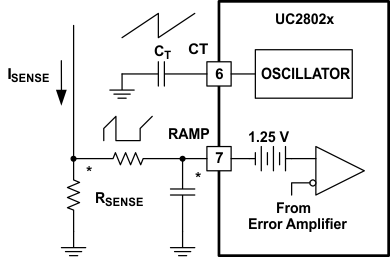

UC28023 UC28025 peak_current_mode_control_slus557.gif
A small filter may be required to suppress switch noise.
Figure 8. Peak Current Mode Control
UC28023 UC28025 oscillator_circuit_slus557.gif Figure 9. Oscillator Circuit
UC28023 UC28025 feedforward_technique_off_line_slus557.gif Figure 10. Feedforward Technique for Off-Line Voltage-Mode Applications
