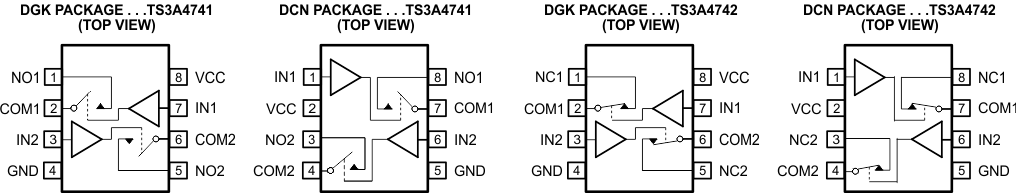

5 Pin Configuration and Functions

TS3A4741 TS3A4742 po_cds228.gif

Pin Functions

PIN I/O DESCRIPTION
NAME TS3A4741 TS3A4742
MSOP SOT MSOP SOT
COM1 2 7 2 7 I/O Common
COM2 6 4 6 4 I/O Common
GND 4 5 4 5 Ground
IN1 7 1 7 1 I Digital control to connect COM to NO or NC
IN2 3 6 3 6 I Digital control to connect COM to NO or NC
NC1 1 8 I/O Normally closed
NC2 5 3 I/O Normally closed
NO1 1 8 I/O Normally open
NO2 5 3 I/O Normally open
VCC 8 2 8 2 I Power supply
