7 Parameter Measurement Information

TS3A4741 TS3A4742 swtimes_cds228.gif Figure 14. Switching Times

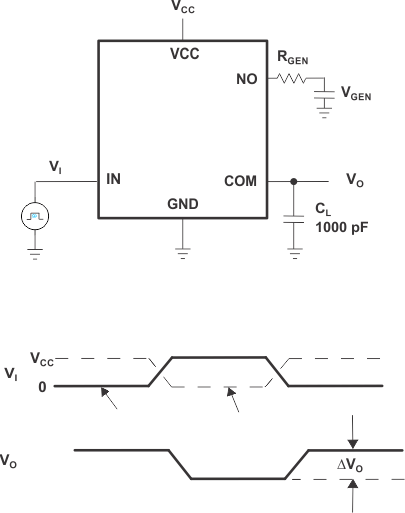

TS3A4741 TS3A4742 chinj_cds228.gif Figure 15. Charge Injection (QC)

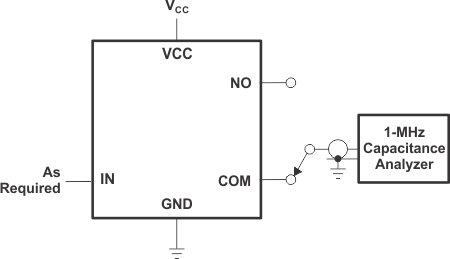

TS3A4741 TS3A4742 nocap_cds228.gif Figure 16. NO and COM Capacitance

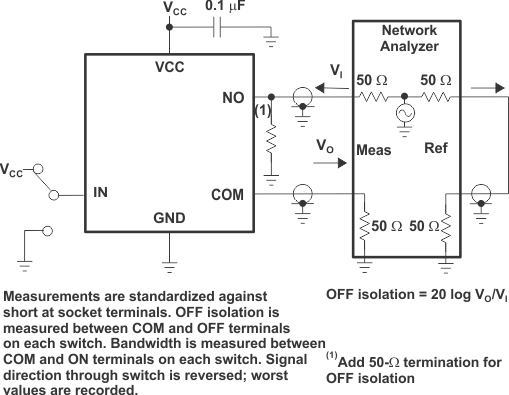

TS3A4741 TS3A4742 offiso_cds228.gif Figure 17. OFF Isolation, Bandwidth, and Crosstalk
TS3A4741 TS3A4742 pmi_cds228.gif
A. CL includes probe and jig capacitance.
Figure 18. Total Harmonic Distortion (THD)
