10.4 EMI

The TPSM846C24 is compliant with EN55022 Class A radiated emissions. Figure 22 to Figure 25 show typical examples of radiated emissions plots for the TPSM846C24. The EMI plots were taken using an EVM with a resistive load and input power was provided using a lead acid battery. All graphs show plots of the antenna in the horizontal and vertical positions.

TPSM846C24 EMI12VVert.gif
Figure 22. Radiated Emissions 12-V Input, 1.2-V Output,
35-A Load Vertical Antenna
TPSM846C24 EMI12VHoriz.gif
Figure 23. Radiated Emissions 12-V Input, 1.2-V Output,
35-A Load Horizontal Antenna

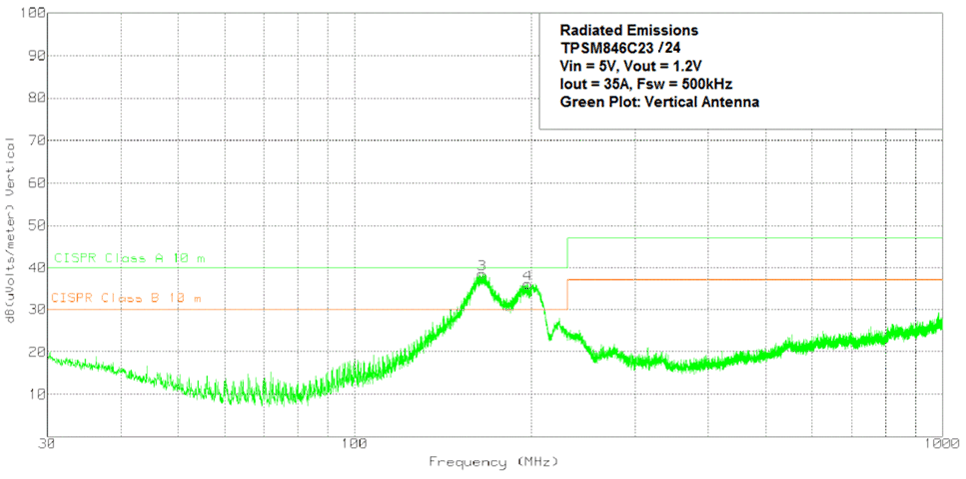

TPSM846C24 EMI5VVert.gifFigure 24. Radiated Emissions 5-V Input, 1.2-V Output,
35-A Load Vertical Antenna
TPSM846C24 EMI5VHoriz.gifFigure 25. Radiated Emissions 5-V Input, 1.2-V Output,
35-A Load Horizontal Antenna
