9.2.3 Application Performance Curves

TA = 25°C, VIN = 3.6 V, unless otherwise noted.

VOUT = 1.2 V
Figure 9-2 Efficiency, PWM/PSM Mode (2.0 MHz)
VOUT = 1.8 V
Figure 9-4 Efficiency, PWM/PSM Mode (2.0 MHz)
VOUT = 3.3 V
Figure 9-6 Efficiency, PWM/PSM Mode (2.0 MHz)
VOUT = 1.2 V
Figure 9-8 Load Regulation, PWM/PSM Mode (2.0 MHz)
VOUT = 1.2 V IOUT = 500 mA
Figure 9-10 Line Regulation, Forced PWM Mode (2.0 MHz)

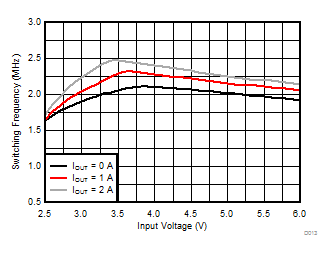

VOUT = 1.2 V MODE = High after PWM/PSM Selection
Figure 9-12 Switching Frequency, Forced PWM Mode (2.0 MHz)
VOUT = 1.2 V MODE = Open
Figure 9-14 Switching Frequency, Forced PWM Mode (2.5 MHz)
VOUT = 1.2 V IOUT = 30 mA
Figure 9-16 Output Ripple, Power Save Operation

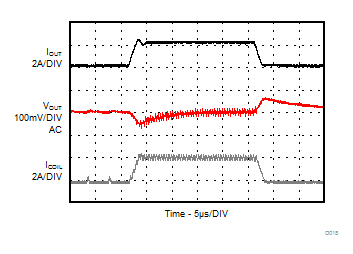

VOUT = 1.2 V IOUT = 0 A to 2 A, 1 A / µs
Figure 9-18 Load Transient, Forced PWM Mode (2.0 MHz)
VOUT = 1.2 V ROUT = 0.6 Ω (2 A)
Figure 9-20 Startup and Shutdown with Load
VOUT = 1.2 V
Figure 9-3 Efficiency, Forced PWM Mode (2.0 MHz)

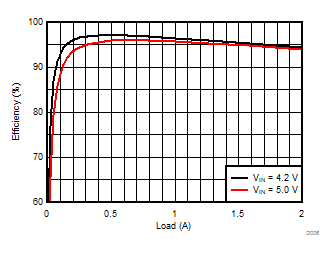

VOUT = 1.8 V
Figure 9-5 Efficiency, Forced PWM Mode (2.0 MHz)
VOUT = 3.3 V
Figure 9-7 Efficiency, Forced PWM Mode (2.0 MHz)

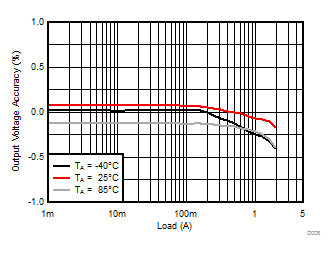

VOUT = 1.2 V
Figure 9-9 Load Regulation, Forced PWM Mode (2.0 MHz)
VOUT = 1.2 V MODE = AGND
Figure 9-11 Switching Frequency, PWM/PSM Mode (2.0 MHz)
VOUT = 1.2 V RMode = 8.2 kΩ
Figure 9-13 Switching Frequency, Forced PWM Mode (1.5 MHz)
VOUT = 1.2 V IOUT = 2 A
Figure 9-15 Output Ripple, PWM Operation (2.0 MHz)
VOUT = 1.2 V IOUT = 0 A to 2 A, 1 A / µs
Figure 9-17 Load Transient, PWM/PSM Mode (2.0 MHz)
VOUT = 1.2 V ROUT = No Load
Figure 9-19 Startup and Shutdown without Load
VOUT = 1.2 V ROUT = 0.8 Ω (1.5 A) with 1-ms short
Figure 9-21 Short Circuit Protection, HICCUP
