9.2.2 Additional Application Circuits

The TPS61165 can be configured to drive three high-brightness LEDs using an external PWM dimming network. Figure 16 shows an example application circuit.

TPS61165 dvr_3_hi_lvs790.gifFigure 16. Drive Three High-Brightness LEDs With External PWM Dimming Network

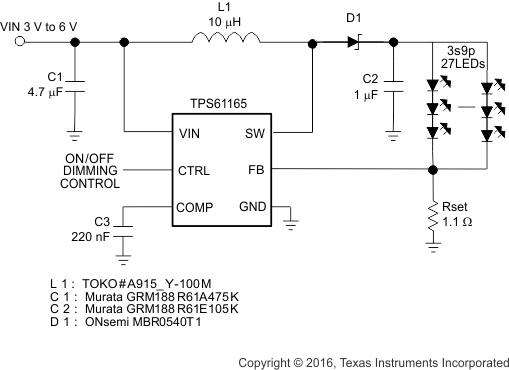

The TPS61165 can be configured to drive nine strings of three LEDs for media form factor displays. Figure 17 shows an example application circuit.

TPS61165 dvr_27_led_lvs790.gifFigure 17. Drive 27 LEDs for Media Form-Factor Display

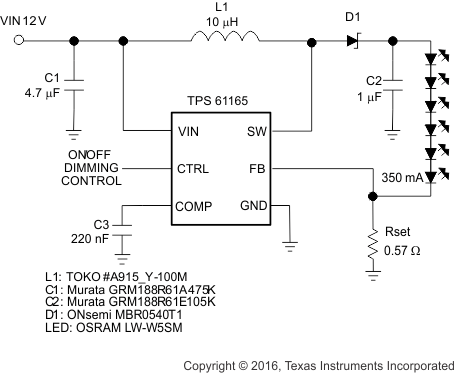

The TPS61165 can be configured to drive six high-brightness LEDs in series. Figure 18 provides an example applications circuit.

TPS61165 dvr_6_hi_lvs790.gifFigure 18. Drive Six High-Brightness LEDs

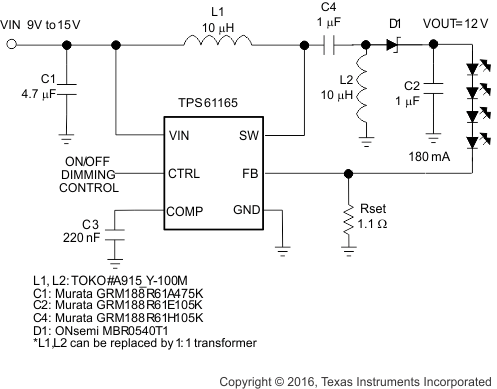

The TPS61165 can be configured to drive four high-brightness LEDs using SEPIC topology. An example application circuit can be found in Figure 19.

TPS61165 dvr_4_hi_lvs790.gifFigure 19. Drive Four High-Brightness LED With SEPIC Topology
