6.6 Typical Characteristics

VIN = 5 V, TA = 25°C (unless otherwise noted)
TPS55330 G001_SLVSBD4.pngFigure 1. Error Amplifier Transconductance vs Temperature
TPS55330 G003_SLVSBD4.pngFigure 3. Feedback Voltage Reference vs Temperature
TPS55330 G005_SLVSBD4.pngFigure 5. Frequency vs FREQ Resistance

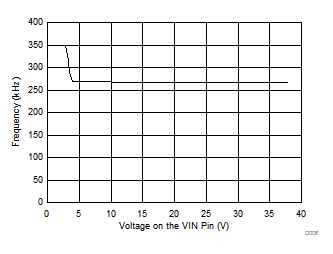

TPS55330 D006_slvsbv5.gif
TA = 25°C
Figure 7. Minimum Switching Frequency for Quick Recovery from Frequency Foldback
TPS55330 G008_SLVSBD4.pngFigure 9. COMP Clamp Voltage vs Temperature

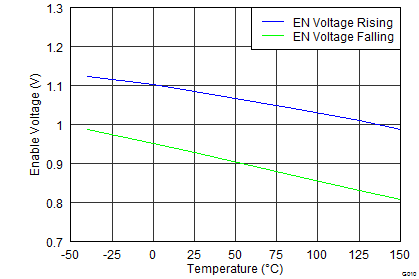

TPS55330 G010_SLVSBD4.pngFigure 11. Enable Voltage vs Temperature
TPS55330 G012_SLVSBD4.pngFigure 13. Minimum On Time vs Temperature
TPS55330 G014_SLVSBD4.pngFigure 15. Supply Current vs Temperature

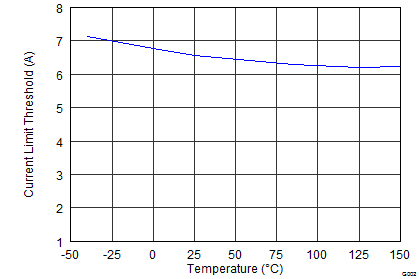

TPS55330 G002_SLVSBD4.pngFigure 2. Switch Current Limit vs Temperature
TPS55330 G004a_SLVSBD4.pngFigure 4. RDS(ON) vs Temperature
TPS55330 G006_SLVSBD4.pngFigure 6. Frequency vs Temperature

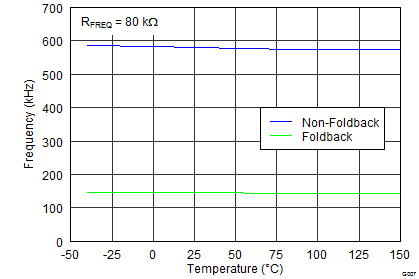

TPS55330 G007_SLVSBD4.png
Figure 8. Non-Foldback Frequency vs Foldback Frequency
TPS55330 G009_SLVSBD4.pngFigure 10. Input Voltage UVLO vs Temperature
TPS55330 G011_SLVSBD4.pngFigure 12. Maximum Duty Cycle vs Temperature

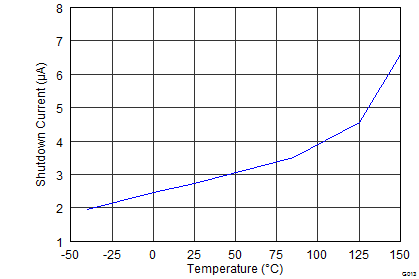

TPS55330 G013_SLVSBD4.pngFigure 14. Shutdown Current vs Temperature
