Typical Characteristics

at TJ = 25°C and VDD = 5V (unless otherwise noted)

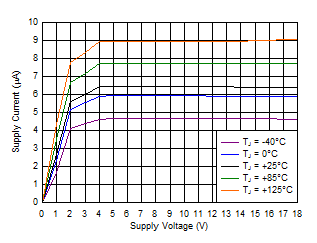

Figure 5-2 Supply Current (IDD) vs Supply Voltage (VDD)
Figure 5-4 Hysteresis (Vhys) vs Temperature
Figure 5-6 Propagation Delay vs Temperature (Low-to-High Transition at Sense)
Figure 5-8 Supply Current (IDD) vs Output Sink Current

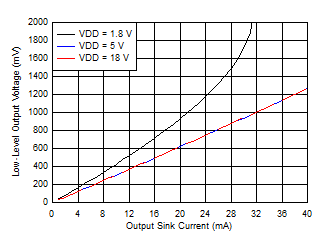

Figure 5-10 Output Voltage Low (VOL) vs Output Sink Current (0°C)

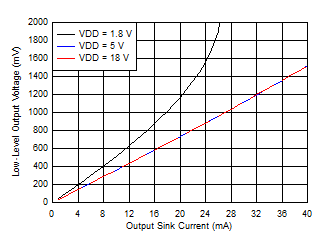

Figure 5-12 Output Voltage Low (VOL) vs Output Sink Current (85°C)
Figure 5-3 Rising Input Threshold Voltage (VIT+) vs Temperature
Figure 5-5 Propagation Delay vs Temperature (High-to-Low Transition at Sense)
SENSE = negative spike below VIT–
Figure 5-7 Minimum Pulse Width vs Threshold Overdrive Voltage
Figure 5-9 Output Voltage Low (VOL) vs Output Sink Current (–40°C)
Figure 5-11 Output Voltage Low (VOL) vs Output Sink Current (25°C)
Figure 5-13 Output Voltage Low (VOL) vs Output Sink Current (125°C)
