Timing Requirements

–40 ≤ TJ ≤ +125°C, VVDD = 3.3 V, VVPWR = 48 V, VDGND = VAGND, DGND, KSENSA and KSENSB connected to AGND, and all outputs are unloaded, PoEPn = 0, Positive currents are into pins, RS = 0.255 Ω, to KSENSA (SEN1 or SEN2) or to KSENSB (SEN3 or SEN4), RSENS = 22 Ω, RDRAIN = 47 Ω, typical values are at 25°C. All voltages are with respect to AGND, operating registers loaded with default values (unless otherwise noted)
MIN TYP MAX UNIT
fSCL SCL clock frequency 10 400 kHz
tLOW LOW period of SCL clock 1.3 µs
tHIGH HIGH period of SCL clock 0.6 µs
tfo SDAO output fall time, SDAO, 2.3 → 0.8 V, Cb = 10 pF, 10-kΩ pullup to 3.3 V 21 250 ns
SDAO output fall time, SDAO, 2.3 → 0.8 V, Cb = 400 pF, 1.3-kΩ pullup to 3.3 V 60 250 ns
CI2C SCL capacitance 10 pF
CI2C_SDA SDAI, SDAO capacitance 6 pF
tSU,DATW Data set-up time (write operation) 100 ns
tSU,DATR Data set-up time (read operation), SDAO, 2.3 ↔ 0.8 V, Cb = 400 pF, 1.3-kΩ pull up to 3.3 V 600 ns
tHD,DATW Data hold time (write operation) 0 ns
tHD,DATR Data hold time (read operation) 150 600 ns
tfSDA Input fall times of SDAI, 2.3 → 0.8 V 20 250 ns
trSDA Input rise times of SDAI, 0.8 → 2.3 V 20 300 ns
tr Input rise time of SCL, 0.8 → 2.3 V 20 300 ns
tf Input fall time of SCL, 2.3 → 0.8 V 20 200 ns
tBUF Bus free time between a stop and start condition 1.3 µs
tHD,STA Hold time after (repeated) start condition 0.6 µs
tSU,STA Repeated start condition set-up time 0.6 µs
tSU,STO Stop condition set-up time 0.6 µs
tFLT_INT(1) Fault to INT assertion, Time to internally register an interrupt in response to a fault 150 µs
tARA_INT ARA to INT negation 500 ns
tDG Suppressed spike pulse width, SDAI and SCL 50 ns
tRDG RESET input minimum pulse width (deglitch time) 5 µs
tWDT_I2C I2C Watchdog trip delay 1.1 2.2 3.3 s
tSTP_AOUT Delay STOP bit to AOUT high during I2C address programming 1.25 µs
These parameters are provided for reference only, and do not constitute part of TI's published specifications for purposes of TI's product warranty.

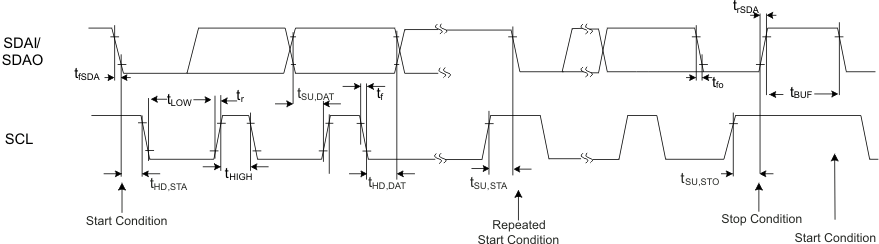

TPS23861 fig2_lusba4.gifFigure 1. I2C Timings
