9.2.3 Application Curves

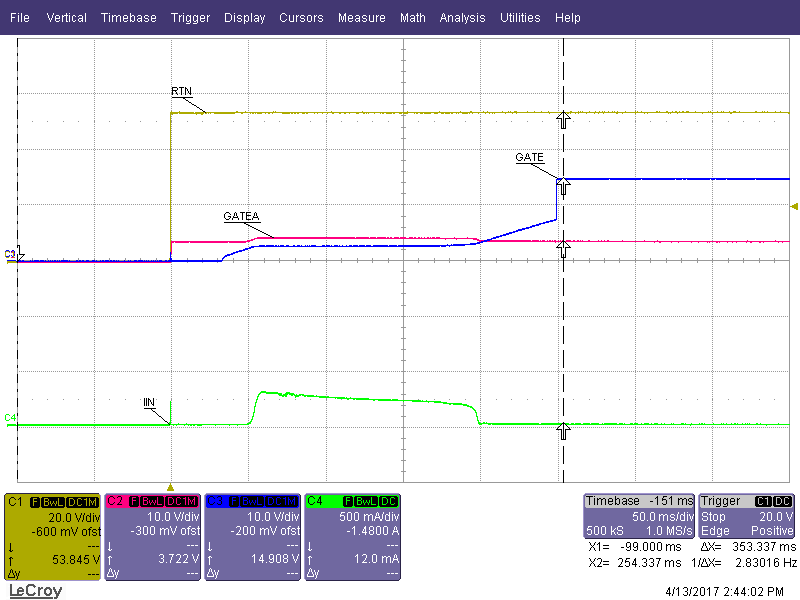

TPS23525 HotPlug_54V.png
No Load, Scope GND = -48V_A
Figure 15. Start Up (Vin = 54 V)

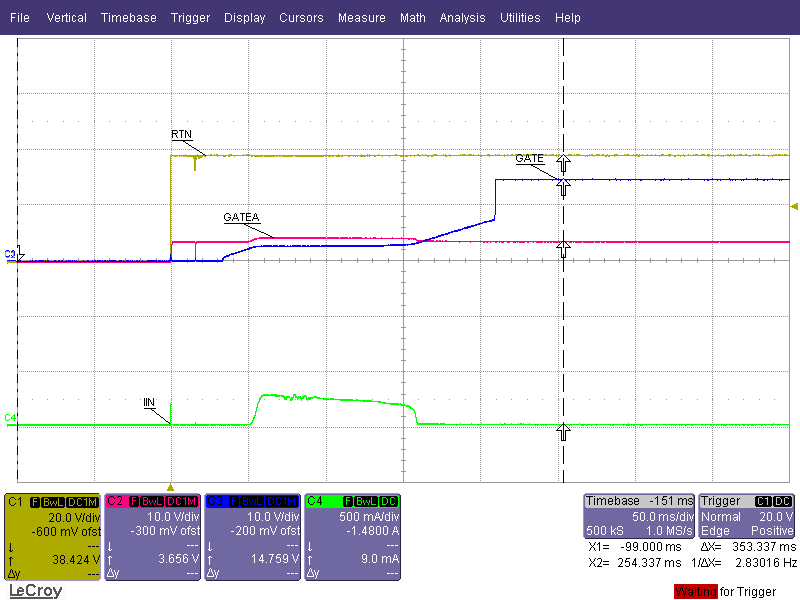

TPS23525 HotPlug_38V.png
No Load, Scope GND = -48V_A
Figure 17. Start Up (Vin = 38 V)
TPS23525 HotPlug2_54V_54V.png
VinA = 54 V, VinB = 54 V, No Load, Scope GND = RTN
Figure 19. Hot Plug Channel A and B Together
TPS23525 HotPlug_After_5A.png
VinA = 54 V; VinB = 38 V, Scope GND = RTN, Iload = 5 A
Figure 21. Hot Plug A after B
TPS23525 HotPlug_After_5A3.png
VinA = 54 V; VinB = 38 V, Scope GND = RTN, Iload = 5 A
Figure 23. Hot Plug A after B
TPS23525 HotShort_after54V2.png
Scope GND = -48V_B, No Load, After Inductor
Figure 25. Output Hot Short (VinB = 54 V)
TPS23525 HotShort_after_54V2.png
Scope GND = -48V_B, 5A Load, Zoomed in
Figure 27. Output Hot Short (VinB = 54 V)
TPS23525 HotShort_after_60Va.png
Scope GND = -48V_B, 5-A Load, Zoomed In
Figure 29. Output Hot Short (VinB = 60 V)
TPS23525 LoadStepOC.png
Scope GND = -48V_A
Figure 31. Load Step Overcurrent
TPS23525 StartIntoShort2.png
Scope Gnd = -48V_A, Vin = 54 V
Figure 33. Start Into Short
TPS23525 BrownOut.png
Scope GND = -48V_A, Iload = 5 A
Figure 35. 1-ms Brown Out
TPS23525 SupplySwitch.png
VinB = 53 V, Iload = 5 A, Scope GND = RTN
Figure 37. Supply Switch Over (Raise VinA)
TPS23525 VinShortDual.png
VinA = 54.5 V; VinB = 54 V, Iload = 5 A, Scope GND=RTN
Figure 39. VinA Short
TPS23525 VinUnplug_Dual.png
VinA = 54.5 V; VinB = 54 V, Iload = 5 A, Scope GND=RTN
Figure 41. Unplug VinA
TPS23525 ReverseHP_single.png
VinB Floating
Figure 43. Plug in VinA backwards
TPS23525 UV_OV_Falling.png
Scope GND = -48V_A, No Load
Figure 45. Under Voltage and Over Voltage (Falling)
TPS23525 Neg2kV_LightningStrike2.png
Scope GND = RTN, 5-A load, Per IEC61000-4-5
Figure 47. -2 kV (2 Ω) Lightning Surge (zoomed in)
TPS23525 Pos2kV_LightningStrike2.png
Scope GND = RTN, 5-A load, Per IEC61000-4-5
Figure 49. +2 kV (2 Ω) Lightning Surge (zoomed in)
TPS23525 LargeL_HotShort.png
Lin = 20 µH, Scope GND = -48V_A
Figure 51. Hot Short (Vin = 54 V)
TPS23525 LargeL_LoadStep.png
Lin = 20 µH, Scope GND = -48V_A,
Figure 53. Load Step (0 A - 11 A)
TPS23525 LargeL_StartIntoShort.png
Lin = 20 µH, Scope GND = -48V_A
Figure 55. Start Into Short
TPS23525 HotPlug_54Va.png
No Load, Scope GND = -48V_A
Figure 16. Start Up (Vin = 54 V)
TPS23525 HotPlug_60V.png
No Load, Scope GND = -48V_A
Figure 18. Start Up (Vin = 60 V)
TPS23525 HotPlug2_54_5V_54V.png
VinA = 54.5 V, VinB = 54 V, No Load, Scope GND = RTN
Figure 20. Hot Plug Channel A and B Together
TPS23525 HotPlug_After_5A2.png
VinA = 54 V; VinB = 38 V, Scope GND = RTN, Iload = 5 A
Figure 22. Hot Plug A after B
TPS23525 HotPlug_After_NoLoad.png
VinA = 54.5 V; VinB = 54 V, Scope GND = RTN, No load
Figure 24. Hot Plug A after B

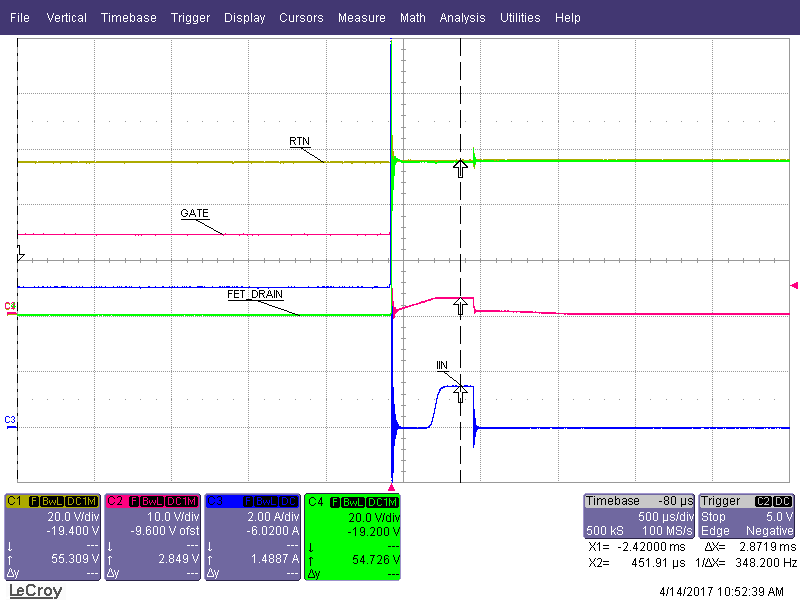

TPS23525 HotShort_after_54V.png
Scope GND = -48V_B, 5-A Load, After Inductor
Figure 26. Output Hot Short (VinB = 54 V)

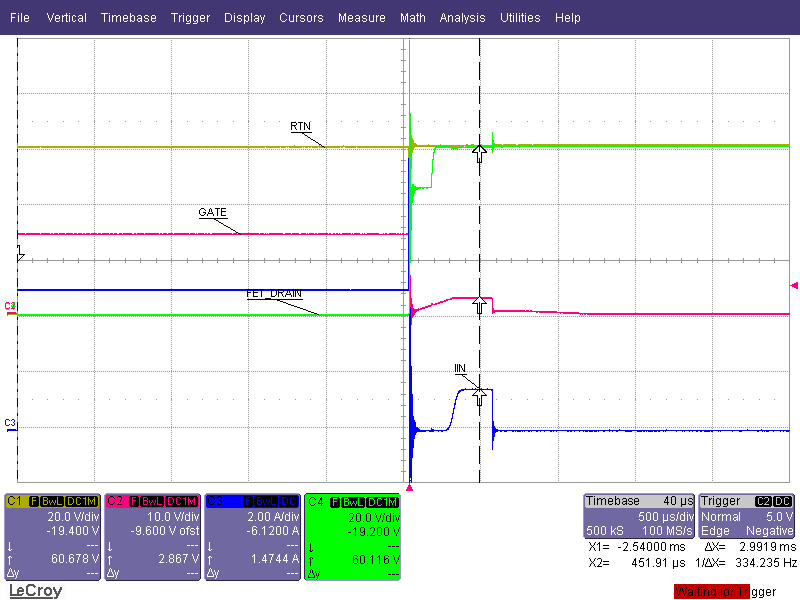

TPS23525 HotShort_after_60V.png
Scope GND = -48V_B, 5-A Load
Figure 28. Output Hot Short (VinB = 60 V)
TPS23525 GradualOC.png
Scope GND = -48V_A
Figure 30. Gradual Over Current (VinA = 54 V)
TPS23525 StartIntoShort.png
Scope Gnd = -48V_A, Vin = 54 V
Figure 32. Start Into Short
TPS23525 RemoveShort.png
Scope Gnd = -48V_A, Vin = 54 V
Figure 34. Apply Short and Remove Short
TPS23525 BrownOut2.png
Scope GND = -48V_A, Iload = 5 A
Figure 36. 1-ms Brown Out
TPS23525 SupplySwitch2.png
VinB = 53 V (Raise VinA), Scope GND = RTN, Iload = 5 A
Figure 38. Supply Switch Over (zoomed in)
TPS23525 VinShortDual2.png
VinA = 54.5 V; VinB = 54 V, Iload = 5 A, Scope GND=RTN
Figure 40. VinA Short
TPS23525 ReverseHP_Dual.png
VinB = 60 V
Figure 42. Plug in VinA backwards
TPS23525 UV_OV_Rising.png
Scope GND = -48V_A, No Load
Figure 44. Under Voltage and Over Voltage (Rising)
TPS23525 Neg2kV_LightningStrike.png
Scope GND = RTN, 5-A load, Per IEC61000-4-5
Figure 46. -2 kV (2 Ω) Lightning Surge
TPS23525 Pos2kV_LightningStrike.png
Scope GND = RTN, 5-A load, Per IEC61000-4-5
Figure 48. +2 kV (2 Ω) Lightning Surge (zoomed in)
TPS23525 largeL_HotPlug.png
Lin = 20 µH, Scope GND = -48V_A
Figure 50. Start-Up (Vin = 54 V)
TPS23525 LargeL_HotShort38.png
Lin = 20 µH, Scope GND = -48V_A
Figure 52. Hot Short (Vin = 38 V)
TPS23525 LargeL_OC.png
Lin = 20 µH, Scope GND = -48V_A
Figure 54. Load Step Into Overcurrent
TPS23525 LargeL_BrownOut.png
Lin = 20 µH, Scope GND = -48V_A
Figure 56. 1-ms Brown Out
