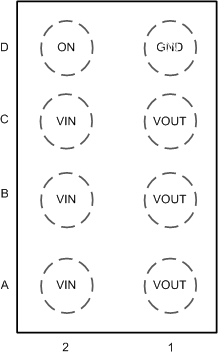

5 Pin Configuration and Functions

YZP Package
8-Pin DSBGA
Laser Marking View
TPS22970 slvsdf2_pin_configuration.gif

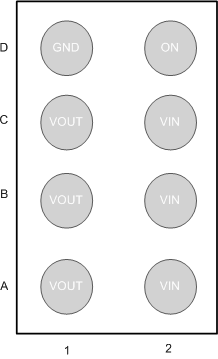

YZP Package
8-Pin DSBGA
Bump View
TPS22970 slvsdf2_pin_configuration2.gif

Pin Functions

PIN TYPE DESCRIPTION
NAME NO.
GND D1 GND Ground
ON D2 I Switch control input. Do not leave floating
VIN A2 I Switch input
B2
C2
VOUT A1 O Switch output
B1
C1
