8 Detailed Description

8.1 Overview

The TPS22907 is a single-channel, 1-A load switch in a small, space-saving DSBGA-4 package. This device implements a P-channel MOSFET to provide a low ON-resistance for a low-voltage drop across the device. A controlled rise time is used in applications to limit the inrush current.

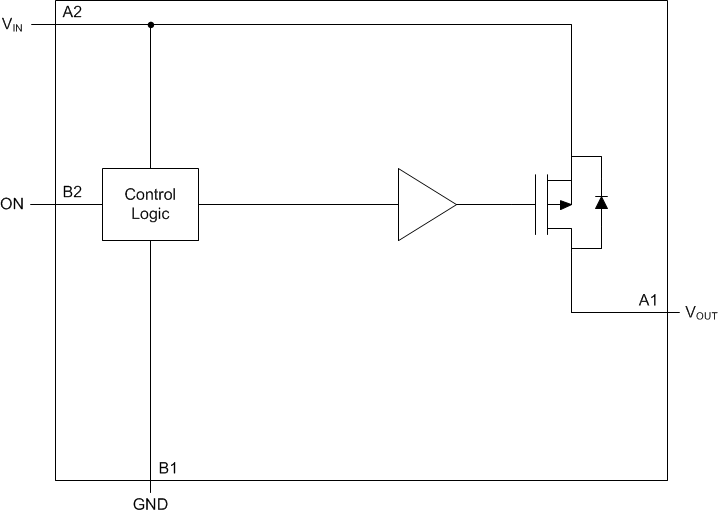

8.2 Functional Block Diagram

TPS22907 BlockDiagram.gif

8.3 Feature Description

Table 1. Device Feature List

DEVICE RON (Typical)
VIN = 1.8 V		 SLEW RATE (Typical)
VIN = 1.8 V		 MAXIMUM OUTPUT CURRENT ENABLE
TPS22907 58 mΩ 36 μs 1 A Active high

8.3.1 On and Off Control

The ON pin controls the state of the switch. Asserting ON high enables the switch. ON is active high and has a low threshold, making it capable of interfacing with low-voltage signals. The ON pin is compatible with standard GPIO logic threshold. It can be used with any microcontroller with 1.2-V, 1.8-V, 2.5-V, or 3.3-V GPIOs.

8.4 Device Functional Modes

Table 2. Function Table

ON (Control Input) VIN to VOUT
L OFF
H ON
