Bus Definitions

The TMP464 device has a two-wire interface that is compatible with the I2C or SMBus interface. Figure 13 through Figure 18 illustrate the timing for various operations on the TMP464 device. The bus definitions are as follows:

    Bus Idle:Both SDA and SCL lines remain high.
    Start Data Transfer:A change in the state of the SDA line (from high to low) when the SCL line is high defines a start condition. Each data transfer initiates with a start condition.
    Stop Data Transfer:A change in the state of the SDA line (from low to high) when the SCL line is high defines a stop condition. Each data transfer terminates with a repeated start or stop condition.
    Data Transfer:The number of data bytes transferred between a start and stop condition is not limited and is determined by the master device. The receiver acknowledges the data transfer.
    Acknowledge:Each receiving device, when addressed, is obliged to generate an acknowledge bit. A device that acknowledges must pull down the SDA line during the acknowledge clock pulse in such a way that the SDA line is stable low during the high period of the acknowledge clock pulse. Take setup and hold times into account. On a master receive, data transfer termination can be signaled by the master generating a not-acknowledge on the last byte that is transmitted by the slave.

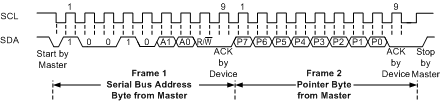

TMP464 Tmng_PtSet.gifFigure 13. Two-Wire Timing Diagram for Write Pointer Byte
TMP464 Tmng_PtSt2ByWr_SBOS762.gifFigure 14. Two-Wire Timing Diagram for Write Pointer Byte and Value Word

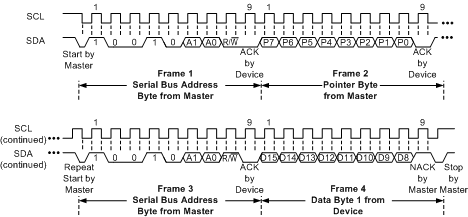

TMP464 Tmng_PtSt1ByRd_SBOS762.gif
The master must leave SDA high to terminate a single-byte read operation.
Figure 15. Two-Wire Timing Diagram for Pointer Set Followed by a Repeat Start and Single-Byte Read Format
TMP464 Tmng_PtSt2ByRd_v2_SBOS762.gifFigure 16. Two-Wire Timing Diagram for Pointer Byte Set Followed by a Repeat Start and Word (Two-Byte) Read

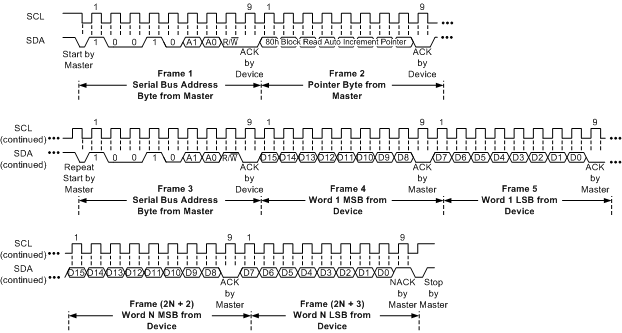

TMP464 Tmng_PtSt4ByRd_SBOS762.gifFigure 17. Two-Wire Timing Diagram for Pointer Byte Set Followed by a Repeat Start and Multiple-Word (N-Word) Read

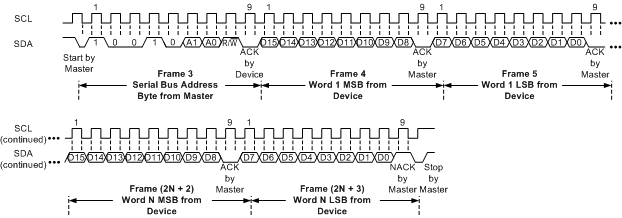

TMP464 Tmng_MultByRd.gifFigure 18. Two-Wire Timing Diagram for Multiple-Word (N-Word) Read Without a Pointer Byte Set
