Typical Characteristics

at TA = 25°C and V+ = 3.6 V (unless otherwise noted)
TMP464 D002_SBOS762.gif
Typical behavior of 75 devices over temperature at V+ = 1.8 V
Figure 2. Local Temperature Error vs Ambient Temperature
TMP464 D005_SBOS762_150C_1p8V-3p6V_Visio.gif
Typical behavior of 30 devices over temperature with V+ from 1.8 V to 3.6 V
Figure 4. Remote Temperature Error Power Supply Sensitivity vs Device Junction Temperature
TMP464 D007_SBOS762.gif
No physical capacitance during measurement
Figure 6. Remote Temperature Error vs Series Resistance
TMP464 D009_SBOS762.gif

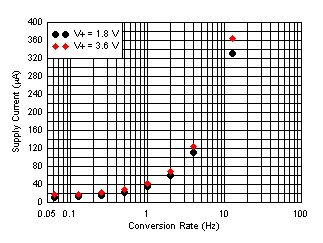

Figure 8. Quiescent Current vs Conversion Rate °
TMP464 D011_SBOS762.gif
Figure 10. Quiescent Current vs Supply Voltage
(at Default Conversion Rate of 16 Conversions Per Second)
TMP464 D004_SBOS762.gif
Typical behavior of 75 devices over temperature at V+ = 1.8 V with the remote diode junction at 150°C.
Figure 3. Remote Temperature Error vs Device Junction Temperature
TMP464 D006_SBOS762.gif

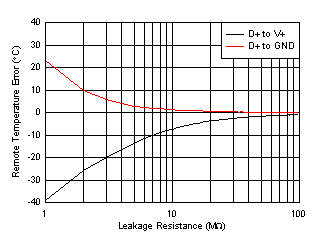

Figure 5. Remote Temperature Error vs Leakage Resistance
TMP464 D008_SBOS762.gif
No physical series resistance on D+, D– pins during measurement
Figure 7. Remote Temperature Error vs
Differential Capacitance
TMP464 D010_SBOS762.gif
Figure 9. Shutdown Quiescent Current
vs SCL Clock Frequency
TMP464 D012_SBOS762.gif
Figure 11. Shutdown Quiescent Current vs Supply Voltage
