Typical Characteristics

TA = 25°C, RL = 10 MΩ to VS/2 ,CL = 20 pF, VCM = VS / 2 V unless otherwise specified.
TLV8544 TLV8542 TLV8541 VOS_HSTG_1p8_VP.gif
VS = 1.8 V VCM = V+ Data from 1500 4-channel devices
Figure 1. Offset Voltage Production Distribution
TLV8544 TLV8542 TLV8541 VOS_HSTG_3p3_VP.gif
VS = 3.3 V VCM = V+ Data from 1500 4-channel devices
Figure 3. Offset Voltage Production Distribution
TLV8544 TLV8542 TLV8541 SNOSD29_IQ_Vs_Vcm_1p8V_3Temp.gif
VS = 1.8 V TA = –40, 25, 125°C Per Channel
Figure 5. Supply Current vs Common Mode Voltage
TLV8544 TLV8542 TLV8541 Vos-vs-Vcm-3T-Vs1p8V-Tim.gif
VS = 1.8 V TA = –40, 25, 125°C
Figure 7. Typical Offset Voltage vs Common Mode Voltage

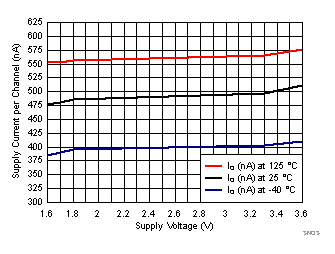

TLV8544 TLV8542 TLV8541 SNOSD29_IQ_Vs_Vs_3Temp_FNL_PCK.gif
VS = 1.6 to 3.6V TA = –40, 25, 125°C VCM = V-
Figure 9. Supply Current vs Supply Voltage, Low VCM

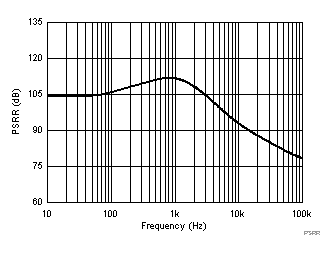

TLV8544 TLV8542 TLV8541 PSRR_vs_Freq_SNOSD29.gif
VS= 3.3V TA = 25°C VCM = V–
Figure 11. PSRR vs Frequency

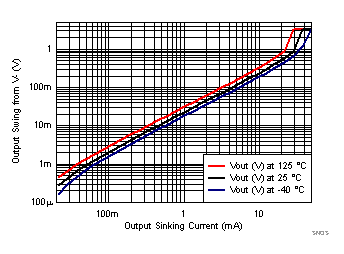

TLV8544 TLV8542 TLV8541 SNOSD29_Output_Swing_Vs_Isink_3p3VS.gif
VS = 3.3 V TA = –40, 25, 125°C
Figure 13. Output Swing vs Sinking Current

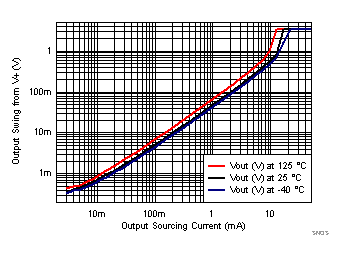

TLV8544 TLV8542 TLV8541 SNOSD29_Output_Swing_Vs_Isource_3p3VS.gif
VS = 3.3 V TA = –40, 25, 125°C
Figure 15. Output Swing vs Sourcing Current
TLV8544 TLV8542 TLV8541 SNOSD29_Ibias_Vcm_3p3_M40C.gif
VS = 3.3 V TA = –40°C
Figure 17. Input Bias Current vs Common Mode Voltage
TLV8544 TLV8542 TLV8541 SNOSD29_Ibias_Vcm_3p3_25C.gif
VS = 3.3 V TA = 25°C
Figure 19. Input Bias Current vs Common Mode Voltage
TLV8544 TLV8542 TLV8541 SNOSD29_Ibias_vs_Vcm_125C_3.3V.gif
VS = 3.3 V TA = 125°C
Figure 21. Input Bias Current vs Common Mode Voltage
TLV8544 TLV8542 TLV8541 SNOSD29_Noise_Vol_Dens_Vs_Freq.gif
VS = 3.3 V TA = 25°C
Figure 23. Input Voltage Noise vs Frequency

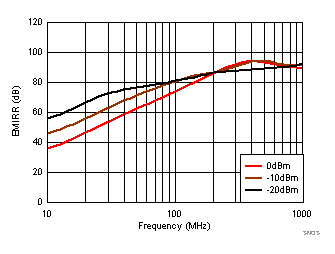

TLV8544 TLV8542 TLV8541 SNOSD29_EMIRR.gif
VS = 3.3 V TA = 25°C
AV = 1
Figure 25. EMIRR Performance
TLV8544 TLV8542 TLV8541 SNOSD29_Step_RES_3p3Vs_0p2Vp-pVin.gif
VS = 3.3 V TA = 25 °C CL = 50 pF
VIN = 1.65 ± 0.1 V AV = 1
Figure 27. Small Signal Pulse Response, 3.3 V
TLV8544 TLV8542 TLV8541 SNOSD29_Step_RES_3p3Vs_2Vp-pVin.gif
VS = 3.3 V TA = 25°C CL = 50 pF
VIN = 1.65 ± 1 V AV = 1
Figure 29. Large Signal Pulse Response, 3.3 V
TLV8544 TLV8542 TLV8541 VOS_HSTG_1p8_VM.gif
VS = 1.8 V VCM = V– Data from 1500 4-channel devices
Figure 2. Offset Voltage Production Distribution
TLV8544 TLV8542 TLV8541 VOS_HSTG_3p3_VM.gif
VS = 3.3 V VCM = V– Data from 1500 4-channel devices
Figure 4. Offset Voltage Production Distribution
TLV8544 TLV8542 TLV8541 SNOSD29_IQ_Vs_Vcm_3p3V_3Temp.gif
VS = 3.3 V TA = –40, 25, 125°C Per Channel
Figure 6. Supply Current vs Common Mode Voltage
TLV8544 TLV8542 TLV8541 Vos-vs-Vcm-3T-Vs3p3V-Tim.gif
VS = 3.3 V TA = –40, 25, 125°C
Figure 8. Typical Offset Voltage vs Common Mode Voltage
TLV8544 TLV8542 TLV8541 SNOSD29_CMRR_vs_Frequncy.gif
VS= 3.3V TA = 25°C
Figure 10. CMRR vs Frequency
TLV8544 TLV8542 TLV8541 SNOSD29_Output_Swing_Vs_Isink_1p8VS.gif
VS = 1.8 V TA = –40, 25, 125°C
Figure 12. Output Swing vs Sinking Current
TLV8544 TLV8542 TLV8541 SNOSD29_Output_Swing_Vs_Isource_1p8VS.gif
VS = 1.8 V TA = –40, 25, 125°C
Figure 14. Output Swing vs Sourcing Current
TLV8544 TLV8542 TLV8541 SNOSD29_Ibias_vs_Vcm_M40C_1p8.gif
VS = 1.8 V TA = –40°C
Figure 16. Input Bias Current vs Common Mode Voltage
TLV8544 TLV8542 TLV8541 SNOSD29_Ibias_Vcm_1p8_25C.gif
VS = 1.8 V TA = 25°C
Figure 18. Input Bias Current vs Common Mode Voltage
TLV8544 TLV8542 TLV8541 SNOSD29_Ibias_Vcm_1p8_125C.gif
VS= 1.8V TA = 125°C
Figure 20. Input Bias Current vs Common Mode Voltage

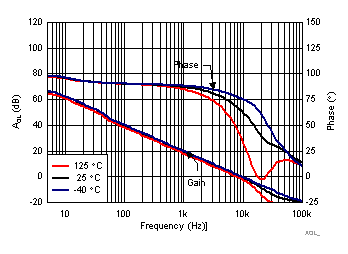

TLV8544 TLV8542 TLV8541 AOL_vs_fre_tritemp.gif
VS = 3.3 V TA = –40, 25, 125°C CL = 50 pF
Figure 22. Open Loop Gain and Phase
TLV8544 TLV8542 TLV8541 SNOSD29_ZO_Vs_Feq_3p3VS.gif
VS = 3.3 V TA = 25°C
Figure 24. Open Loop Output Impedance
TLV8544 TLV8542 TLV8541 SNOSD29_Step_RES_1p8Vs_0p2Vp-pVin.gif
VS = 1.8 V TA = 25°C CL = 50 pF
VIN = 0.9 ± 0.1 V AV = 1
Figure 26. Small Signal Pulse Response, 1.8 V
TLV8544 TLV8542 TLV8541 SNOSD29_Step_RES_1p8Vs_1Vp-pVin.gif
VS = 1.8 V TA = 25°C CL = 50 pF
VIN = 0.9 ± 0.5 V AV = 1
Figure 28. Large Signal Pulse Response, 1.8 V
