Timing Requirements

PARAMETERTEST CONDITIONSMINTYPMAXUNIT
tpsAnalog input intra-pair (+ to –) differential skew (2)0.4tbit(1)
tccsAnalog input inter-pair or channel-to-channel skew (2)1tpix(3)
tijitWorst-case differential input-clock jitter tolerance(2)(4)50ps
tf1Fall time of data and control signals(5)(6)ST = low, CL = 5 pF2.4ns
ST = high, CL = 10 pF1.9
tr1Rise time of data and control signals(5)(6)ST = low, CL = 5 pF2.4ns
ST = high, CL = 10 pF1.9
tr2Rise time of ODCK clock(5)ST = low, CL = 5 pF2.4ns
ST = high, CL = 10 pF1.9
tf2Fall time of ODCK clock(5)ST = low, CL = 5 pF2.4ns
ST = high, CL = 10 pF1.9
tsu1Setup time, data and control signal to falling edge of ODCK1 pixel per clock, PIXS = low, OCK_INV = low1.8ns
2 pixels per clock, PIXS = high,
STAG = high, OCK_INV = low
3.8
2 pixels and STAG, PIXS = high, STAG = low, OCK_INV = low0.6
th1Hold time, data and control signal to falling edge of ODCK1 pixel per clock, PIXS = low, OCK_INV = low0.6ns
2 pixels and STAG, PIXS = high,
STAG = low, OCK_INV = low
2.5
2 pixels per clock, PIXS = high,
STAG = high, OCK_INV = low
2.9
tsu2Setup time, data and control signal to rising edge of ODCK1 pixels per clock, PIXS = low,
OCK_INV = high
2.1ns
2 pixels per clock, PIXS = high,
STAG = high, OCK_INV = high
4
2 pixels and STAG, PIXS = high,
STAG = low, OCK_INV = high
1.5
th2Hold time, data and control signal to rising edge of ODCK1 pixel per clock, PIXS = low, OCK_INV = high0.3ns
2 pixels and STAG, PIXS = high,
STAG = low, OCK_INV = high
2.4
2 pixels per clock, PIXS = high,
STAG = high, OCK_INV = high
2.1
tpixPixel time(3)6.0640ns
tbit is 1/10 the pixel time, tpix.
Specified by characterization.
tpix is the pixel time defined as the period of the RxC clock input. The period of the output clock, ODCK, is equal to tpix when in 1-pixel-per-clock mode or 2 tpix when in 2-pixels-per-clock mode.
Measured differentially at 50% crossing using ODCK output clock as trigger.
Rise and fall times measured as time between 20% and 80% of signal amplitude.
Data and control signals are QE[23:0], QO[23:0], DE, HSYNC, VSYNC. and CTL[3:1].
Amount of time detected between DE transitions determines whether link is active or inactive. SCDT indicates link activity.
GUID-53690A82-7676-4041-95E2-812E0311C56C-low.gifFigure 6-1 Rise and Fall Times of Data and Control Signals
GUID-8FD1D8FD-5F49-4CB1-A883-16C7A4B2861A-low.gifFigure 6-2 Rise and Fall Times of ODCK
GUID-46984A95-8A9F-4C3A-B1DB-6C38C2BE0EB6-low.gifFigure 6-3 ODCK Frequency

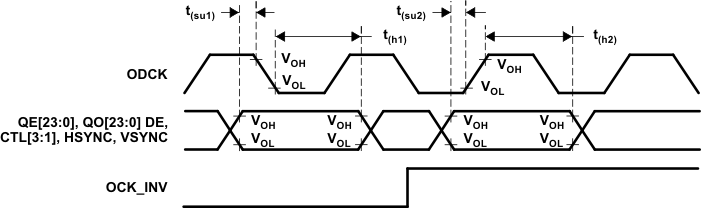

GUID-6B0F8C2E-3BCF-4251-85FF-A33EDD39710E-low.gifFigure 6-4 Data Setup and Hold Times to Rising and Falling Edges of ODCK
GUID-DA37585F-0460-4604-982E-05A97D64DFE3-low.gifFigure 6-5 ODCK High to QE[23:0] Staggered Data Output

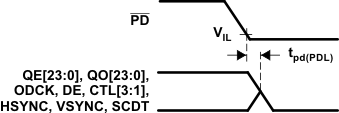

GUID-15AD9161-3932-4BCF-9B12-AC83860A9615-low.gifFigure 6-6 Delay From PD Low to Hi-Z Outputs
GUID-0B77F62F-EEB6-4C99-AB87-EB863AA719DB-low.gifFigure 6-7 Delay From PDO Low to Hi-Z Outputs

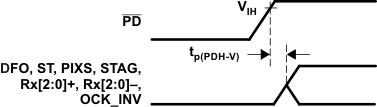

GUID-44484C50-BD1A-4567-A22B-2F5684FC06C6-low.gifFigure 6-8 Delay From PD Low to High Until Inputs Are Active
GUID-86533586-68BD-46D5-8140-750E5A158FD8-low.gifFigure 6-9 Time From DE Transitions to SCDT Low and SCDT High
