Parameter Measurement Information

SN65HVD233 SN65HVD234 SN65HVD235 pmi_dri_lls557.gifFigure 12. Driver Voltage, Current, and Test Definition
SN65HVD233 SN65HVD234 SN65HVD235 pmi_bus_lls557.gifFigure 13. Bus Logic State Voltage Definitions

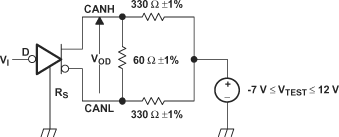

SN65HVD233 SN65HVD234 SN65HVD235 pmi_driv_lls557.gifFigure 14. Driver VOD

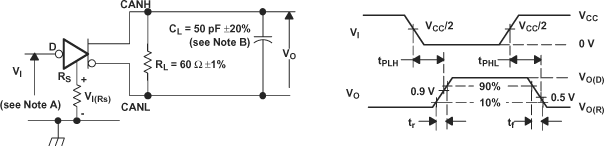

SN65HVD233 SN65HVD234 SN65HVD235 pmi_dtc_lls557.gif
The input pulse is supplied by a generator having the following characteristics: Pulse repetition rate (PRR) ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
CL includes fixture and instrumentation capacitance.
Figure 15. Driver Test Circuit and Voltage Waveforms

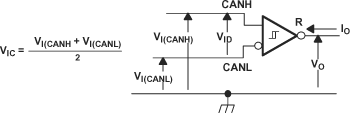

SN65HVD233 SN65HVD234 SN65HVD235 pmi_rece_lls557.gifFigure 16. Receiver Voltage and Current Definitions
SN65HVD233 SN65HVD234 SN65HVD235 pmi_rectc_lls557.gif
The input pulse is supplied by a generator having the following characteristics: Pulse repetition rate (PRR) ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
CL includes fixture and instrumentation capacitance.
Figure 17. Receiver Test Circuit and Voltage Waveforms

Table 1. Differential Input Voltage Threshold Test

INPUT OUTPUT MEASURED
VCANH VCANL R |VID|
–6.1 V –7 V L VOL 900 mV
12 V 11.1 V L 900 mV
–1 V –7 V L 6 V
12 V 6 V L 6 V
–6.5 V –7 V H VOH 500 mV
12 V 11.5 V H 500 mV
–7 V –1 V H 6 V
6 V 12 V H 6 V
Open Open H X

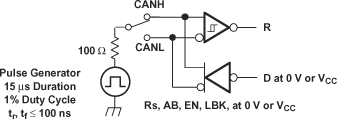

SN65HVD233 SN65HVD234 SN65HVD235 pmi_testc_lls557.gif

NOTE:

This test is conducted to test survivability only. Data stability at the R output is not specified.
Figure 18. Test Circuit, Transient Overvoltage Test
SN65HVD233 SN65HVD234 SN65HVD235 pmi_tens_lls557.gif

NOTE:

All VI input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 6 ns, pulse repetition rate (PRR) = 125 kHz, 50% duty cycle.
Figure 19. Ten(s) Test Circuit and Voltage Waveforms

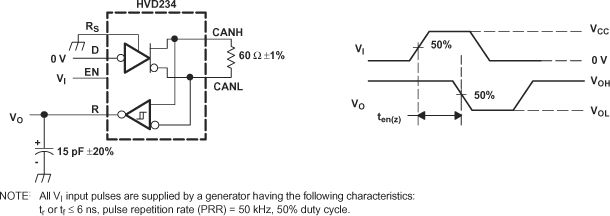

SN65HVD233 SN65HVD234 SN65HVD235 pmi_tenz_lls557.gifFigure 20. Ten(z) Test Circuit and Voltage Waveforms

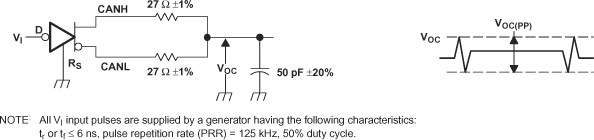

SN65HVD233 SN65HVD234 SN65HVD235 pmi_vocpp_lls557.gifFigure 21. VOC(pp) Test Circuit and Voltage Waveforms
SN65HVD233 SN65HVD234 SN65HVD235 pmi_tloop_lls557.gifFigure 22. T(loop) Test Circuit and Voltage Waveforms

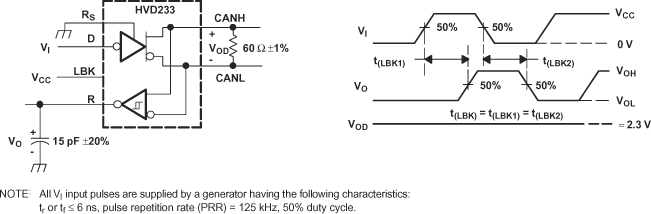

SN65HVD233 SN65HVD234 SN65HVD235 pmi_tlbk_lls557.gifFigure 23. T(LBK) Test Circuit and Voltage Waveforms
SN65HVD233 SN65HVD234 SN65HVD235 pmi_tab1_lls557.gifFigure 24. T(AB1) Test Circuit and Voltage Waveforms
SN65HVD233 SN65HVD234 SN65HVD235 pmi_tab2_lls557.gifFigure 25. T(AB2) Test Circuit and Voltage Waveforms

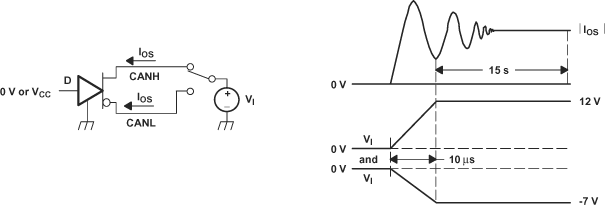

SN65HVD233 SN65HVD234 SN65HVD235 pmi_los_lls557.gifFigure 26. IOS Test Circuit and Waveforms

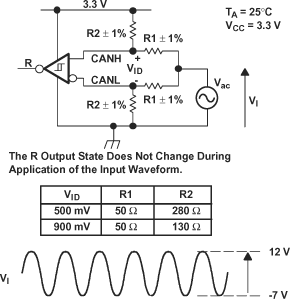

SN65HVD233 SN65HVD234 SN65HVD235 pmi_comm_lls557.gif

NOTE:

All input pulses are supplied by a generator with f ≤ 1.5 MHz.
Figure 27. Common-Mode Voltage Rejection

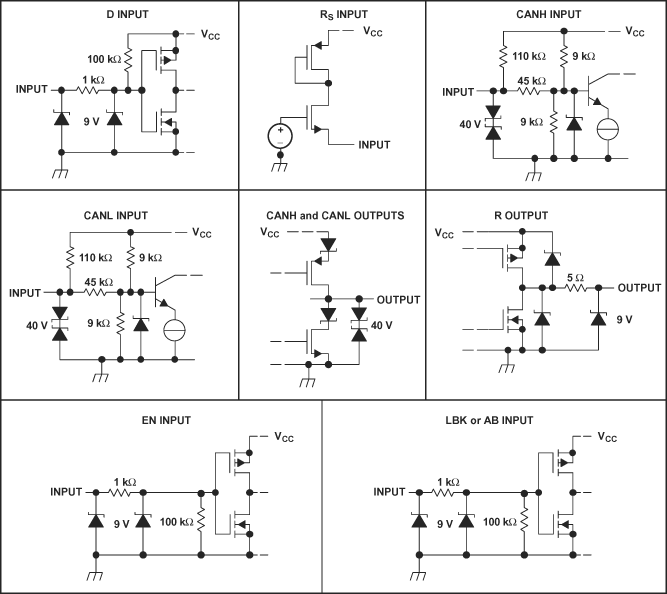

SN65HVD233 SN65HVD234 SN65HVD235 sch_diag_lls557.gifFigure 28. Equivalent Input and Output Schematic Diagrams
