10.2.2 Detailed Design Procedure

To protect bus nodes against high-energy transients, the implementation of external transient protection devices is therefore necessary. Figure 10-4 shows a protection circuit against 10-kV ESD (IEC 61000-4-2), 4-kV EFT (IEC 61000-4-4), and 1-kV surge (IEC 61000-4-5) transients.

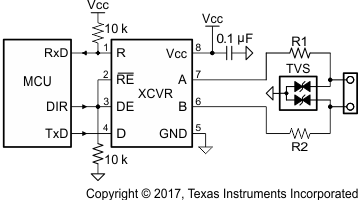

GUID-4FBE7D52-BF7A-458B-930D-4864339BABF1-low.gifFigure 10-4 Transient Protection Against ESD, EFT, and Surge Transients
Table 10-2 Bill of Materials
DEVICEFUNCTIONORDER NUMBERMANUFACTURER
XCVR3.3-V, full-duplex RS-485 transceiverSN65HVD1xDTI
R1, R210-Ω, pulse-proof, thick-film resistorCRCW0603010RJNEAHPVishay
TVSBidirectional 400-W transient suppressorCDSOT23-SM712Bourns
