Thermal Considerations

Through normal operation the OPA2156 will experience self-heating, a natural increase in the die junction temperature which occurs in every amplifier. This is a result of several factors including the quiescent power consumption, the package’s thermal dissipation, PCB layout and the device operating conditions.

To fully ensure the amplifier will operate without entering thermal shutdown it is important to calculate the approximate junction (die) temperature which can be done using Equation 1.

Equation 1. OPA2156 Eq1-JunctionTemp.gif

Equation 2 shows the approximate junction temperature for the OPA2156 while unloaded with an ambient temperature of 25°C.

Equation 2. OPA2156 Eq1-JunctionTemp-Calc.gif

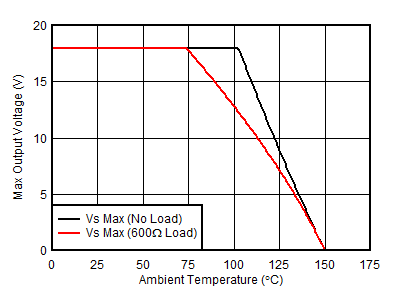

For high voltage, high precision amplifiers such as the OPA2156 the junction temperature can easily be 10s of degrees higher than the ambient temperature in a quiescent (unloaded) condition. If the device then begins to drive a heavy load the junction temperature may rise and trip the thermal shutdown circuit. The Figure 44 shows the maximum output voltage of the OPA2156 without entering thermal shutdown vs ambient temperature in both a loaded and unloaded condition.

OPA2156 OPA2156 Thermal SOA.gifFigure 44. OPA2156 Thermal Safe Operating Area
