Typical Characteristics (PVIN = VIN = 12 V)

The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 1, Figure 2, and Figure 3. The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 100-mm × 100-mm, 4-layer PCB with 2-oz. copper. Applies to Figure 4.

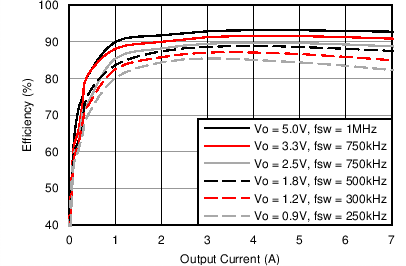

LMZ31707 12VEff_720.pngFigure 1. Efficiency versus Output Current
LMZ31707 12VPdis_720.pngFigure 3. Power Dissipation versus Output Current
LMZ31707 Bode12V_SLVSBV8.pngFigure 5. VOUT = 1.8 V, IOUT = 7 A, COUT = 200 µF Ceramic, fSW = 500 kHz

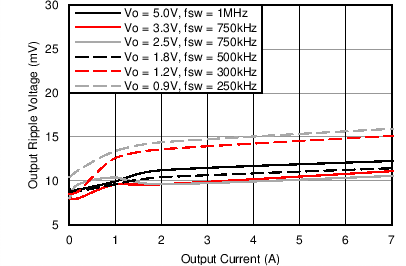

LMZ31707 12VRppl_720.pngFigure 2. Voltage Ripple versus Output Current
LMZ31707 12Vin_0LFM_SOA.pngFigure 4. Safe Operating Area
