8.2.3 Application Curves

Unless otherwise specified the following conditions apply: VIN = 12 V, TA = 25°C. The circuit is shown in Figure 8-29, with the appropriate BOM from Table 8-3.

VOUT = 5 V 400 kHz RNX Package
Figure 8-5 Efficiency
VOUT = 5 V1.4 MHzRNX Package
Figure 8-7 Efficiency
VOUT = 5 V2.1 MHzRNX Package
Figure 8-9 Efficiency
VOUT = 5 V
Figure 8-11 Line and Load Regulation
VOUT = 5 VƒSW = 400 kHz
Figure 8-13 Mode Change Thresholds
VIN = 12 VVOUT = 5 V
tf = tr = 2 µsIOUT = 0 A to 3 A
Figure 8-15 Load Transient
VOUT = 3.3 V

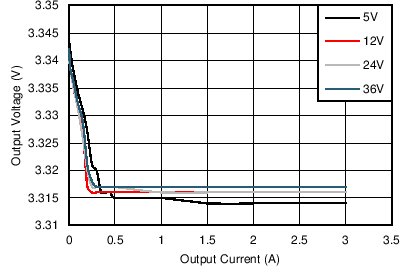

Figure 8-17 Line and Load Regulation
VOUT = 3.3 VƒSW = 400 kHz

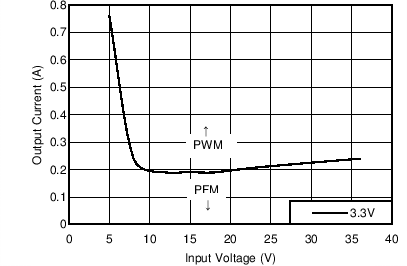

Figure 8-19 Mode Change Thresholds
VIN = 12 VVOUT = 3.3 V
tf = tr = 2 µsIOUT = 0 A to 3 A
Figure 8-21 Load Transient
VIN = 12 V VOUT = 5 V IOUT = 3 A
ƒSW = 400 kHz RNX package
Figure 8-23 Conducted EMI
VIN = 12 V VOUT = 5 V IOUT = 3 A
ƒSW = 400 kHz RNX package
Figure 8-25 Radiated EMI Biconical Antenna (Vertical)
VIN = 12 V VOUT = 5 V IOUT = 3 A
ƒSW = 400 kHz RNX package
Figure 8-27 Radiated EMI Log-periodic Antenna (Vertical)
VOUT = 3.3 V 400 kHz RNX Package

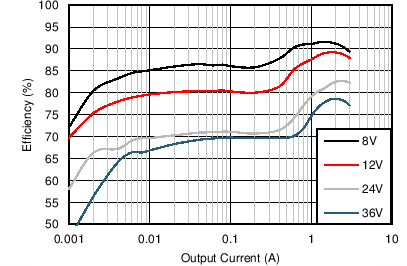

Figure 8-6 Efficiency
VOUT = 3.3 V1.4 MHzRNX Package

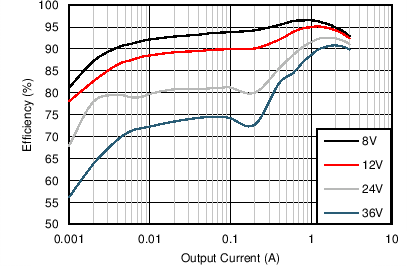

Figure 8-8 Efficiency
VOUT = 3.3 V2.1 MHzRNX Package
Figure 8-10 Efficiency
VOUT = 5 VIOUT = 0 ARFBT = 1 MΩ
Figure 8-12 Input Supply Current
VOUT = 5 V ƒSW = 2100 kHz
Figure 8-14 Switching Frequency versus Output Current
VIN = 12 VVOUT = 5 V
tf = tr = 2 µsIOUT = 1 A to 3 A

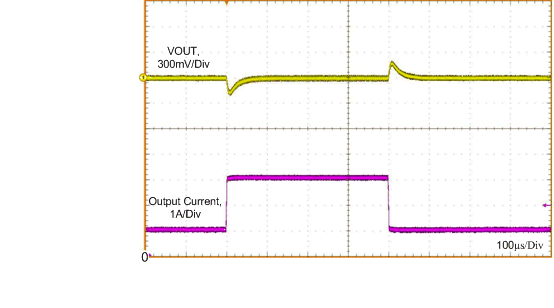

Figure 8-16 Load Transient
VOUT = 3.3 VIOUT = 0 ARFBT = 1 MΩ

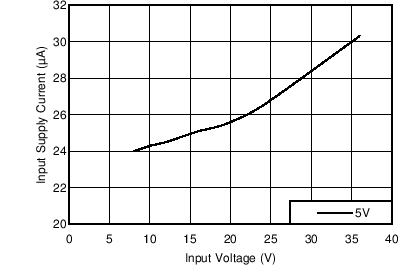

Figure 8-18 Input Supply Current
A.
VOUT = 3.3 V ƒSW = 2100 kHz

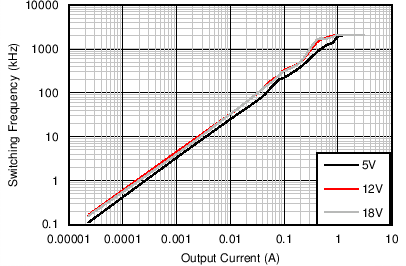

Figure 8-20 Switching Frequency versus Output Current
VIN = 12 VVOUT = 3.3VIOUT = 1 A to 3 A
tf = tr = 2 µs
Figure 8-22 Load Transient
VIN = 12 V VOUT = 5 V IOUT = 3 A
ƒSW = 400 kHz RNX package
Figure 8-24 Radiated EMI Biconical Antenna (Horizontal)
VIN = 12 V VOUT = 5 V IOUT = 3 A
ƒSW = 400 kHz RNX package
Figure 8-26 Radiated EMI Log-periodic Antenna (Horizontal)
VIN = 12 V VOUT = 5 V IOUT = 3 A
ƒSW = 400 kHz RNX package
Figure 8-28 Radiated EMI

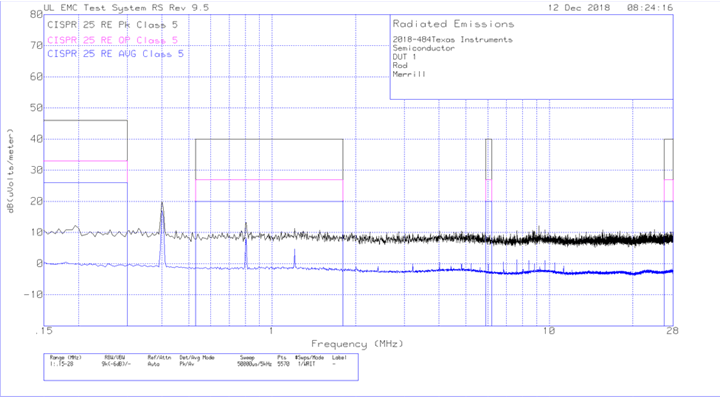

Rod Antenna
GUID-78FBD926-BDC3-495D-BB6B-1D9B7687853B-low.gifFigure 8-29 Circuit for Application Curves
Table 8-3 BOM for Typical Application Curves RNX Package(1)
VOUTFREQUENCYRFBBCOUTCIN + CHFLU1
3.3 V400 kHz43.3 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF6.8 µH, 14 mΩ LMR33630ARNX
3.3 V1400 KHz43.3 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF2.2 µH, 11.4 mΩLMR33630BRNX
3.3 V2100 kHz43.3 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF1.2 µH, 7 mΩLMR33630CRNX
5 V400 kHz24.9 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF8 µH, 25 mΩ LMR33630ARNX
5 V1400 KHz24.9 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF2.2 µH, 11.4 mΩLMR33630BRNX
5 V2100 kHz24.9 kΩ4 × 22 µF2 × 4.7 µF + 2 × 100 nF1.5 µH, 8.2 mΩ LMR33630CRNX
(1) The values in this table were selected to enhance certain performance criteria and may not represent typical values.
GUID-20201008-CA0I-R8BM-RLV7-QRHSPRXPFGNH-low.gif Figure 8-30 Typical Input EMI Filter
Filter Used Only for EMI Measurements Found in Application Curves
