8.2.1.1.2 Transformer Footprints

Figure 33 through Figure 47 show the footprints of each transformer, listed in Table 3.

LM2586 01251633.png
Figure 33. Coilcraft S6000-A (Top View)
LM2586 01251635.png
Figure 35. Coilcraft Q4437-B (Surface Mount) (Top View)
LM2586 01251637.png
Figure 37. Coilcraft S6057-A
(Surface Mount) (Top View)
LM2586 01251639.png
Figure 39. Pulse PE-68482 (Top View)
LM2586 01251642.png
Figure 41. Pulse PE-68413
(Surface Mount) (Top View)
LM2586 01251645.png

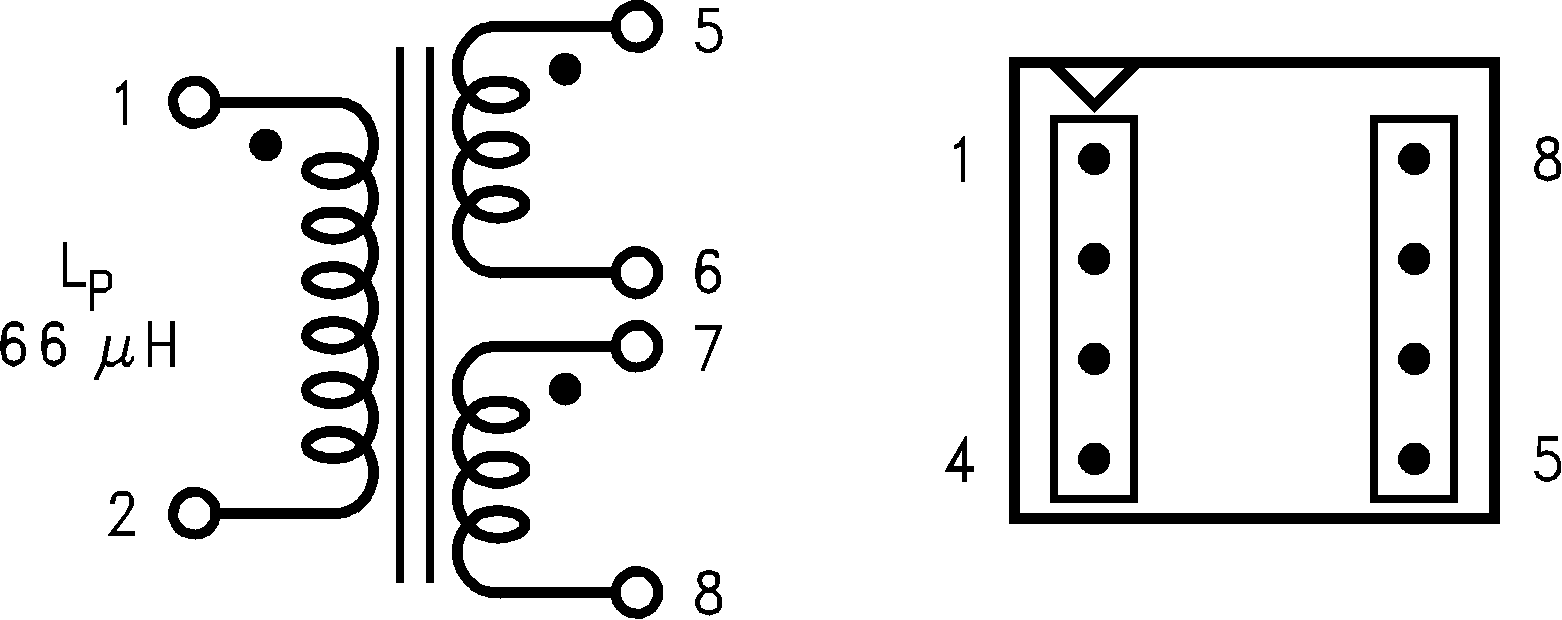

Figure 43. Renco Rl-5533 (Top View)
LM2586 01251647.png
Figure 45. Schott 26606 (Top View)
LM2586 01251650.png
Figure 47. Schott 67140890 (Top View)
LM2586 01251634.png
Figure 34. Coilcraft Q4339-B (Top View)
LM2586 01251636.png
Figure 36. Coilcraft Q4338-B (Top View)
LM2586 01251638.png
Figure 38. Coilcraft Q4438-B
(Surface Mount) (Top View)
LM2586 01251640.png
Figure 40. Pulse PE-68414
(Surface Mount) (Top View)
LM2586 01251643.png
Figure 42. Renco Rl-5751 (Top View)
LM2586 01251646.png
Figure 44. Renco Rl-5532 (Top View)
LM2586 01251649.png
Figure 46. Schott 67140900 (Top View)
