8.2.1 Typical Flyback Regulator Applications

Figure 27 through Figure 32 show six typical flyback applications, varying from single output to triple output. Each drawing contains the part number(s) and manufacturer(s) for every component except the transformer. For the transformer part numbers and manufacturers' names, see Table 2. For applications with different output voltages—requiring the LM2586-ADJ—or different output configurations that do not match the standard configurations, refer to the Switchers Made Simple software.

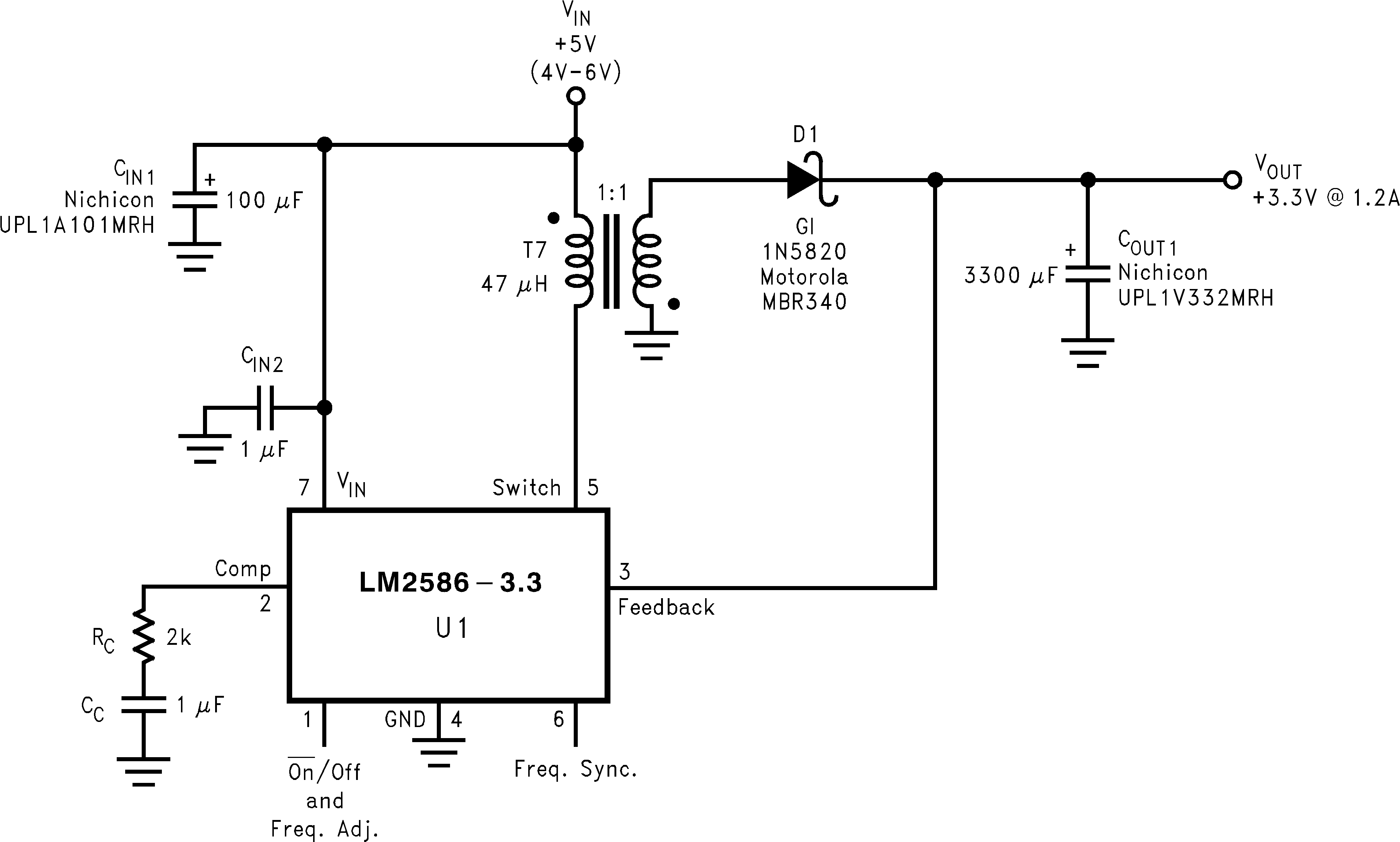

LM2586 01251627.pngFigure 27. Single-Output Flyback Regulator

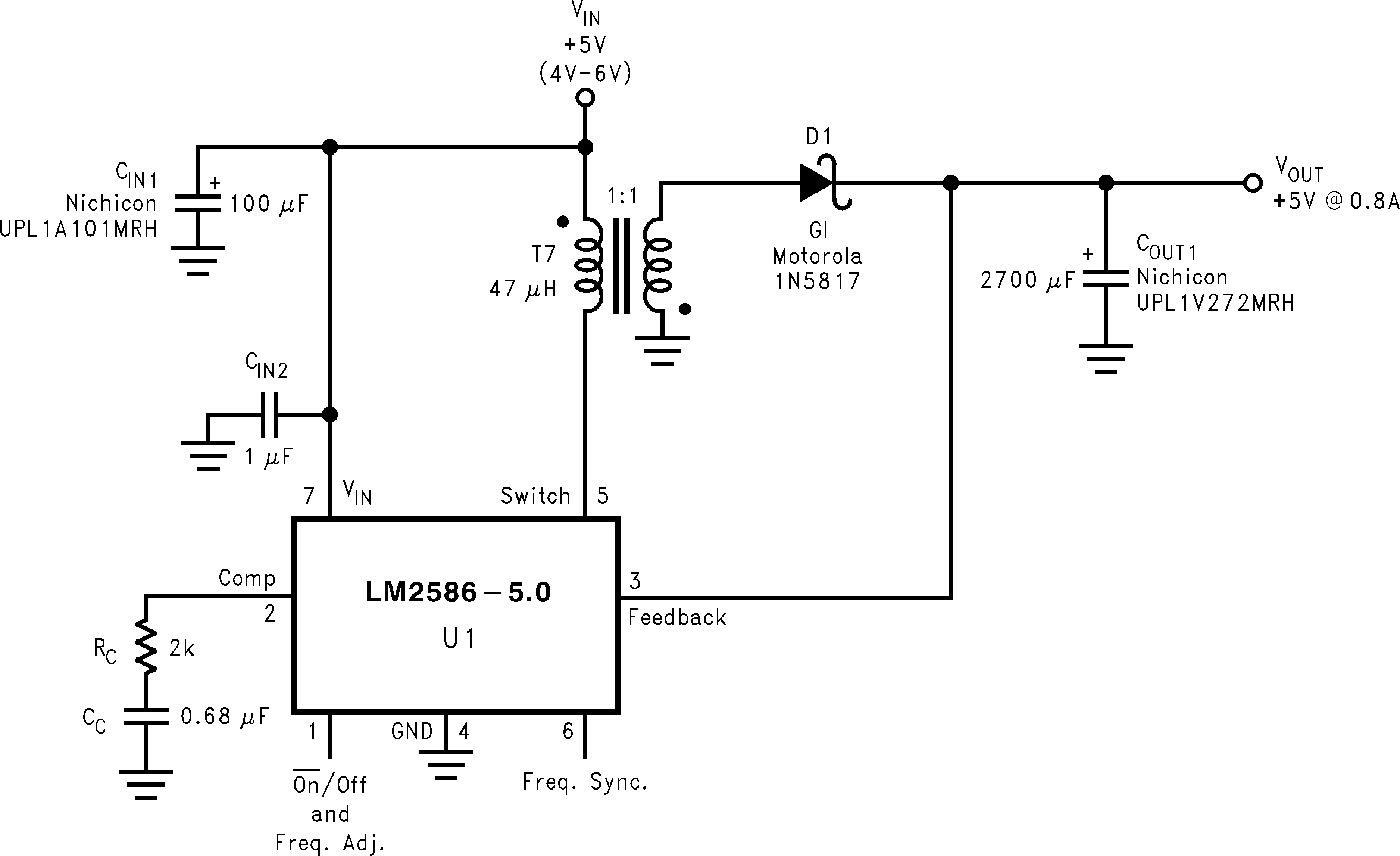

LM2586 01251628.pngFigure 28. Single-Output Flyback Regulator

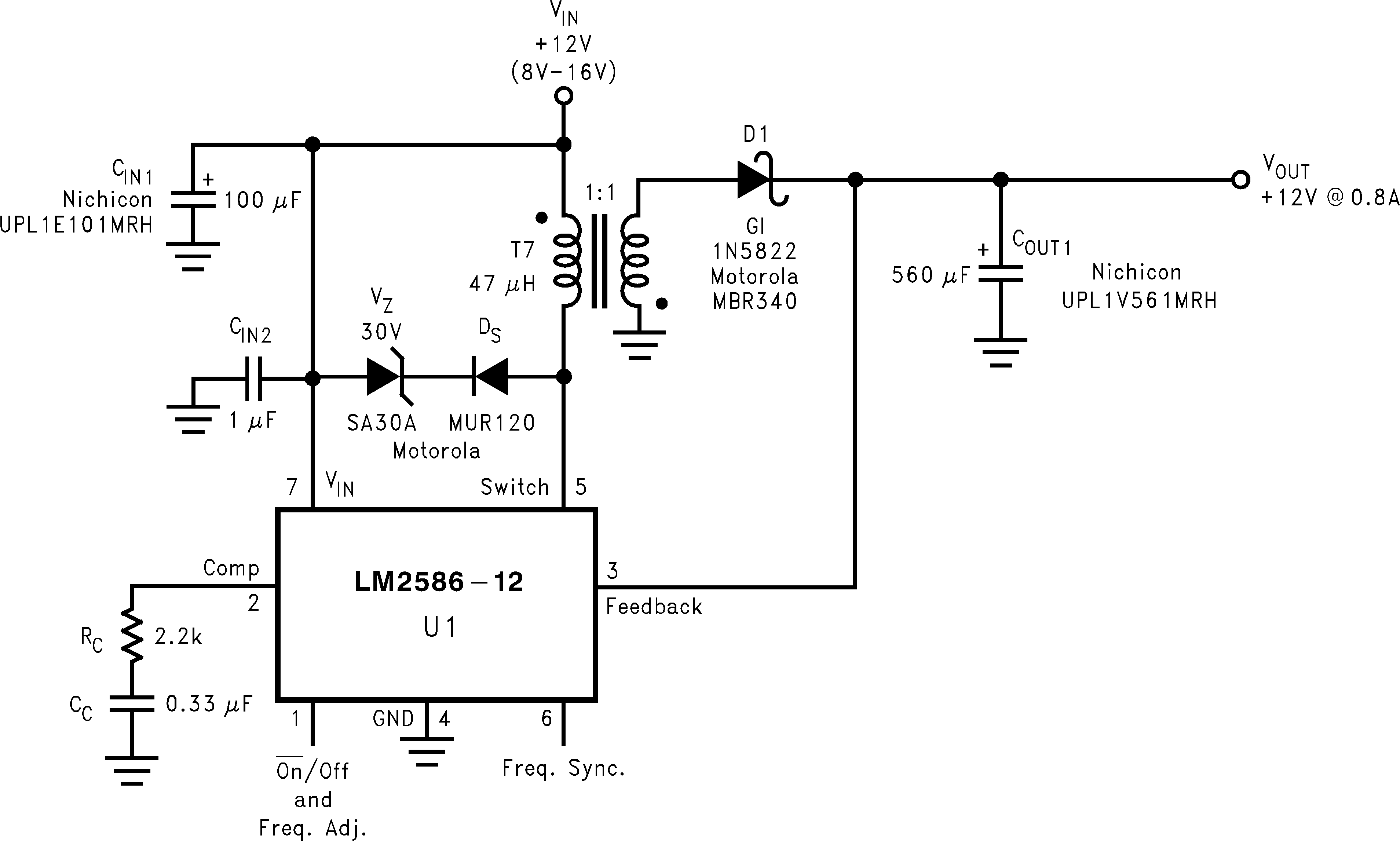

LM2586 01251629.pngFigure 29. Single-Output Flyback Regulator

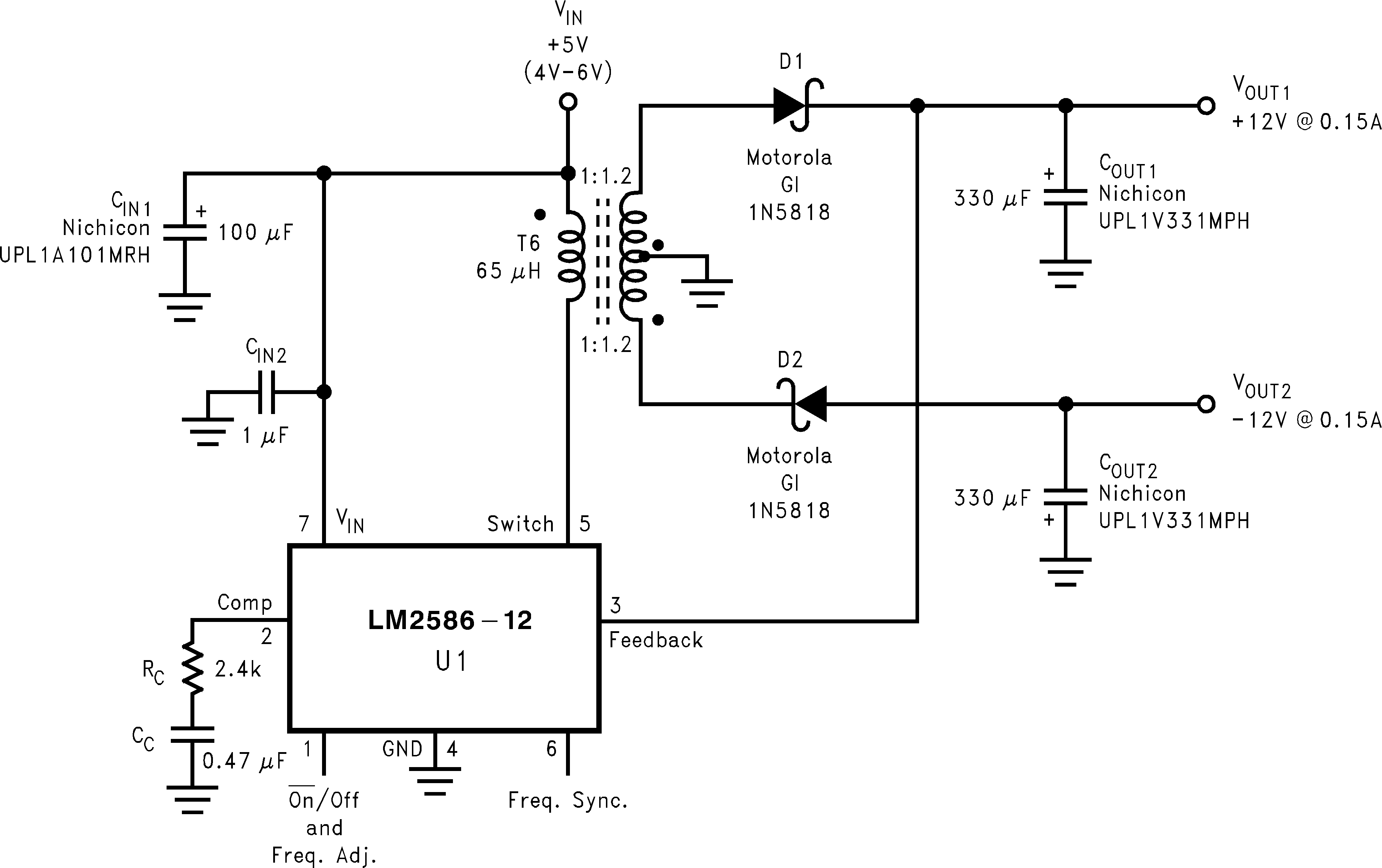

LM2586 01251630.pngFigure 30. Dual-Output Flyback Regulator

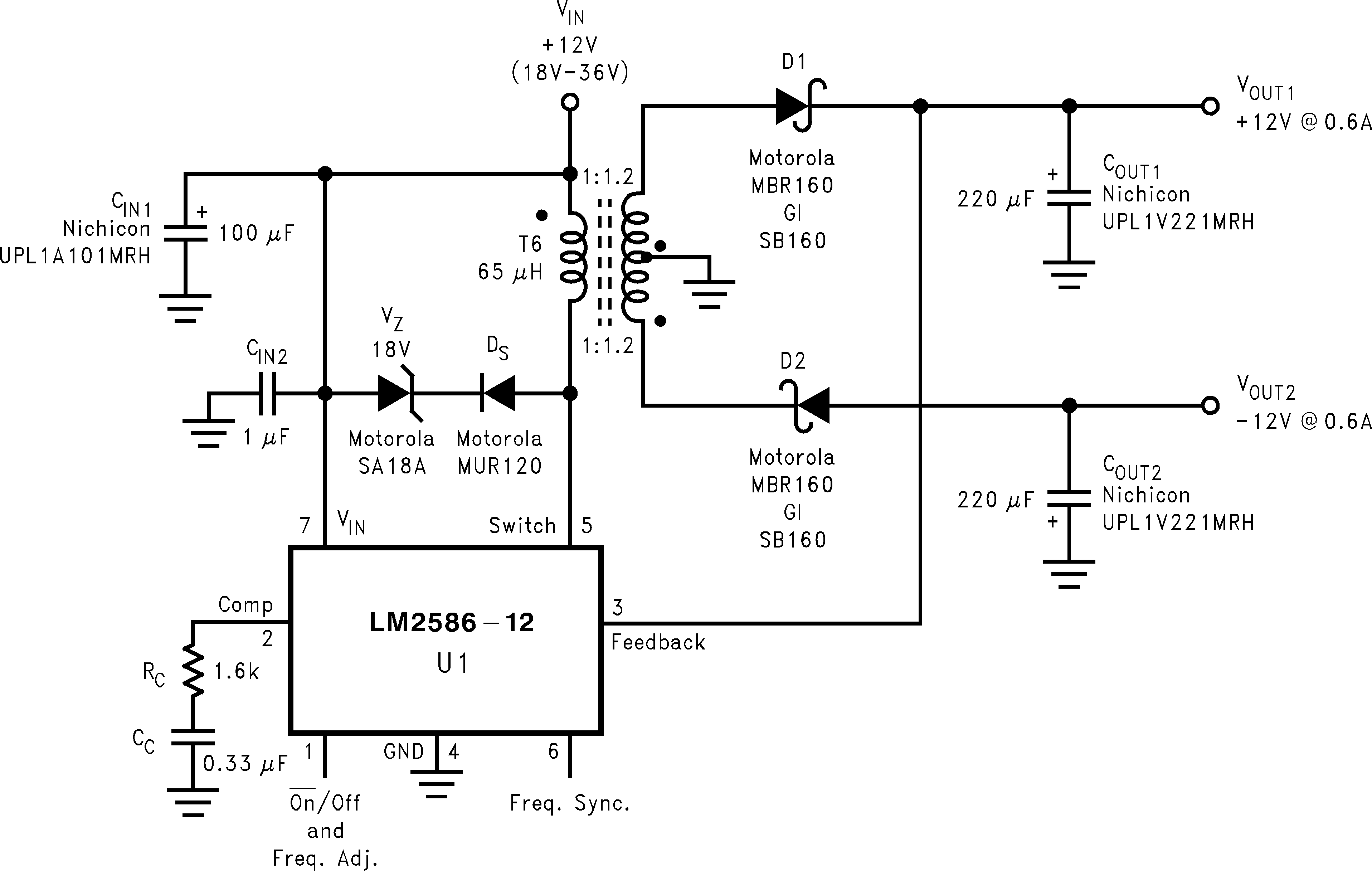

LM2586 01251631.pngFigure 31. Dual-Output Flyback Regulator

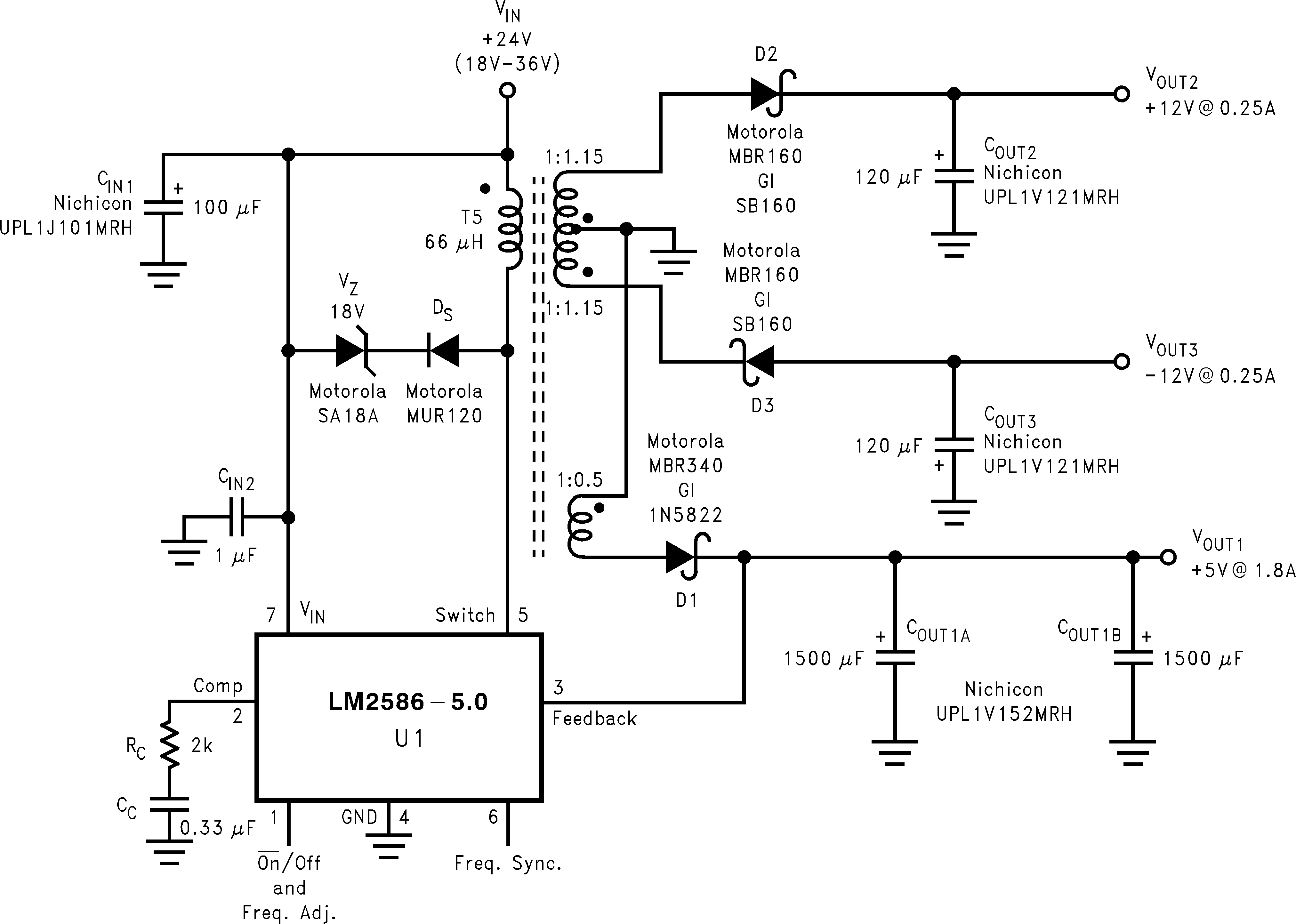

LM2586 01251632.pngFigure 32. Triple-Output Flyback Regulator
