Parameter Measurement Information

GUID-C0ADBD1B-92A2-496C-8746-E41C79B1A6CC-low.gifFigure 7-1 Driver VOD Test and Current Definitions
GUID-B46FC34A-CD8A-4F3E-94BC-B539EF043C66-low.gifFigure 7-2 Driver VOD With Common-Mode Loading Test Circuit
GUID-672B8CC0-D9D1-41D3-B350-DFD41F32B293-low.gif Figure 7-3 Test Circuit and Waveform Definitions For The Driver Common-Mode Output Voltage
GUID-C0BA3B64-1014-467A-9C87-AA8C30FA5B24-low.gif Figure 7-4 Driver Switching Test Circuit and Voltage Waveforms
GUID-507AE889-79FA-4FFD-9F05-F4161927CFD7-low.gif Figure 7-5 Driver High-Level Output Enable and Disable Time Test Circuit and Voltage Waveforms
GUID-33DCAE5E-833F-4BE1-B80E-4990183BD8C4-low.gif Figure 7-6 Driver Low-Level Output Enable and Disable Time Test Circuit and Voltage Waveform
GUID-94FD916F-0F70-4310-9B72-997C96A9664C-low.gif Figure 7-7 Receiver Voltage and Current Definitions
GUID-FE3E76EC-FB1D-4E46-9852-14B3352EEEAE-low.gif Figure 7-8 Receiver Switching Test Circuit and Waveforms

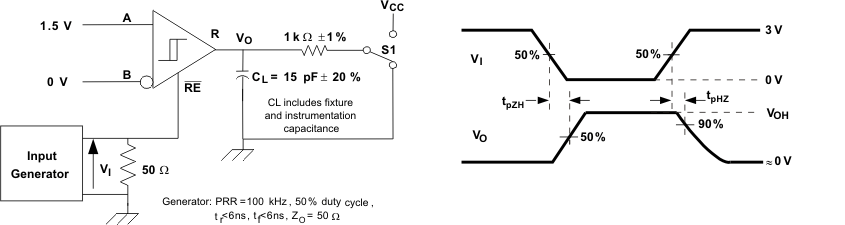

GUID-D887B867-43E1-478C-B6F7-026AA047E79B-low.gif Figure 7-9 Receiver Enable Test Circuit and Waveforms, Data Output High

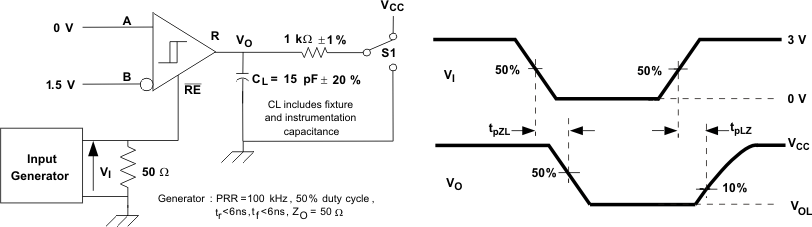

GUID-30401D67-DEF2-456D-A5F3-DC22B09CE152-low.gif Figure 7-10 Receiver Enable Test Circuit and Waveforms, Data Output Low
GUID-B456CD86-BC21-4B5C-9D0F-46D571823EC6-low.gif Figure 7-11 Transient Over-Voltage Test Circuit
GUID-9E3E1777-B774-49CD-8368-2E8964B0E84C-low.svg Figure 7-12 Common-Mode Transient Immunity Test Circuit

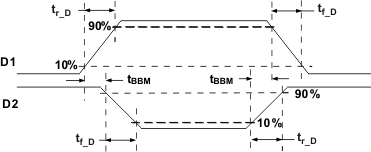

GUID-4ACA5578-1BFE-465A-9B8C-48C9621DD8AE-low.gif Figure 7-13 Transition Times and Break-Before-Make Time Delay for D1, D2 Outputs
