6.7 Typical Characteristics

for T_A = 25°C (unless otherwise noted)

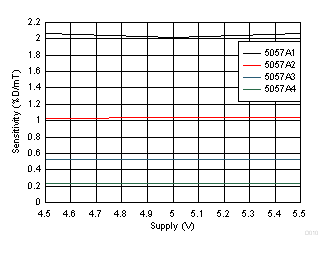

V_CC = 5.0 V

Figure 6-1 Sensitivity vs Supply Voltage

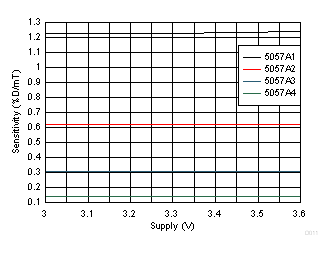

V_CC = 3.3 V

Figure 6-3 Sensitivity vs Supply Voltage

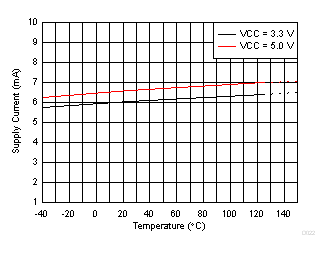

DRV5057A1/A2/A3/A4

Figure 6-5 Supply Current vs Temperature

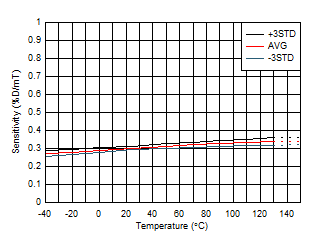

DRV5057A1, V_CC = 5.0 V

Figure 6-7 Sensitivity vs Temperature

DRV5057Z1, V_CC = 5.0 V

Figure 6-9 Sensitivity vs Temperature

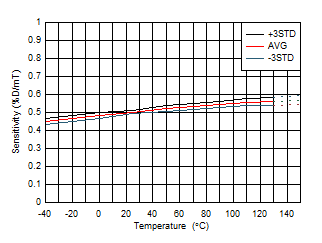

DRV5057A2, V_CC = 5.0 V

Figure 6-11 Sensitivity vs Temperature

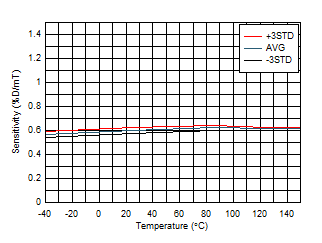

DRV5057Z2, V_CC = 5.0 V

Figure 6-13 Sensitivity vs Temperature

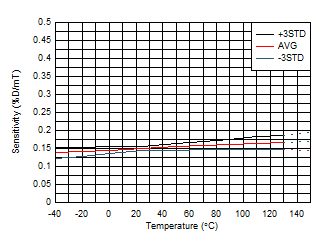

DRV5057A3, V_CC = 5.0 V

Figure 6-15 Sensitivity vs Temperature

DRV5057Z3, V_CC = 5.0 V

Figure 6-17 Sensitivity vs Temperature

DRV5057A4, V_CC = 5.0 V

Figure 6-19 Sensitivity vs Temperature

DRV5057Z4, V_CC = 5.0 V

Figure 6-21 Sensitivity vs Temperature

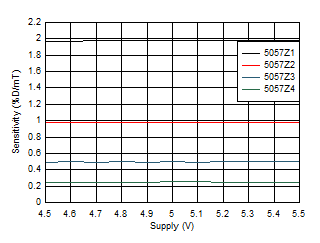

V_CC = 5.0 V

Figure 6-2 Sensitivity vs Supply Voltage

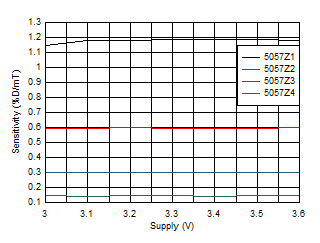

V_CC = 3.3 V

Figure 6-4 Sensitivity vs Supply Voltage

DRV5057Z1/Z2/Z3/Z4

Figure 6-6 Supply Current vs Temperature

DRV5057A1, V_CC = 3.3 V

Figure 6-8 Sensitivity vs Temperature

DRV5057Z1, V_CC = 3.3 V

Figure 6-10 Sensitivity vs Temperature

DRV5057A2, V_CC = 3.3 V

Figure 6-12 Sensitivity vs Temperature

DRV5057Z2, V_CC = 3.3 V

Figure 6-14 Sensitivity vs Temperature

DRV5057A3, V_CC = 3.3 V

Figure 6-16 Sensitivity vs Temperature

DRV5057Z3, V_CC = 3.3 V

Figure 6-18 Sensitivity vs Temperature

DRV5057A4, V_CC = 3.3 V

Figure 6-20 Sensitivity vs Temperature

DRV5057Z4, V_CC = 3.3 V

Figure 6-22 Sensitivity vs Temperature
