Typical Characteristics: AVDD = 2.7 V

at TA = 25°C, AVDD = 2.7 V, and DAC loaded with midscale code (unless otherwise noted)


Figure 7-44 DAC7311 12-Bit Linearity Error and Differential Linearity Error vs Code (–40°C)

Figure 7-46 DAC7311 12-Bit Linearity Error and Differential Linearity Error vs Code (25°C)

Figure 7-48 DAC7311 12-Bit Linearity Error and Differential Linearity Error vs Code (125°C)

Figure 7-50 DAC5311 8-Bit Linearity Error and Differential Linearity Error vs Code (–40°C)

Figure 7-52 DAC5311 8-Bit Linearity Error and Differential Linearity Error vs Code (25°C)

Figure 7-54 DAC5311 8-Bit Linearity Error and Differential Linearity Error vs Code (125°C)

Figure 7-56 Source Current at Positive Rail

Figure 7-58 Power-Supply Current vs Digital Input Code

Figure 7-60 Power-Supply Current vs Temperature

Figure 7-62 Total Harmonic Distortion vs Output Frequency

Figure 7-64 Power Spectral Density

Figure 7-66 Clock Feedthrough 2.7-V, 20-MHz, Midscale

Figure 7-68 Glitch Energy, 2.7-V, 12-Bit, 1-LSB Step, Falling Edge

Figure 7-70 Glitch Energy, 2.7-V, 8-Bit, 1-LSB Step, Falling Edge

Figure 7-72 Full-Scale Settling Time, 2.7-V Falling Edge

Figure 7-74 Half-Scale Settling Time, 2.7-V Falling Edge

Figure 7-76 Power-Off Glitch

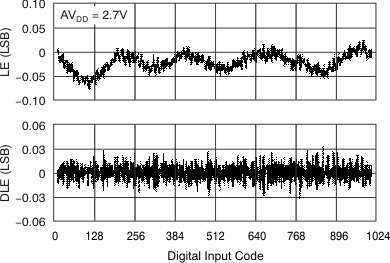

Figure 7-45 DAC6311 10-Bit Linearity Error and Differential Linearity Error vs Code (–40°C)

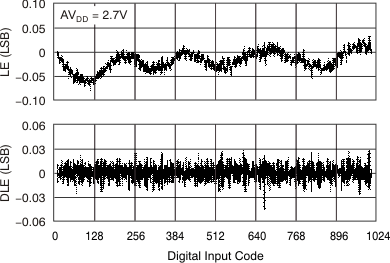

Figure 7-47 DAC6311 10-Bit Linearity Error and Differential Linearity Error vs Code (25°C)

Figure 7-49 DAC6311 10-Bit Linearity Error and Differential Linearity Error vs Code (125°C)

Figure 7-51 Zero-Code Error vs Temperature

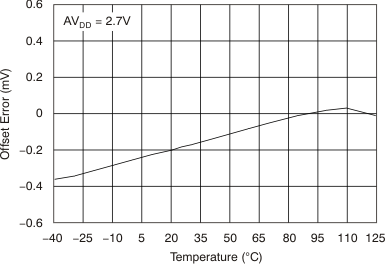

Figure 7-53 Offset Error vs Temperature

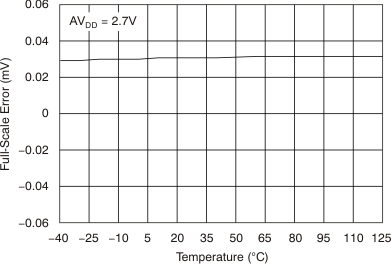

Figure 7-55 Full-Scale Error vs Temperature

Figure 7-57 Sink Current at Negative Rail

Figure 7-59 Power-Supply Current vs Logic Input Voltage

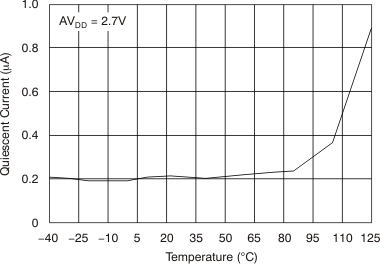

Figure 7-61 Power-Down Current vs Temperature

Figure 7-63 Signal-to-Noise Ratio vs Output Frequency

Figure 7-65 Power-Supply Current Histogram

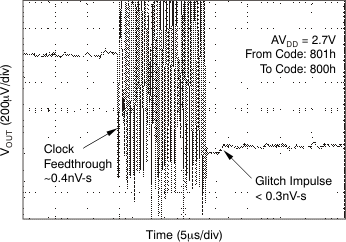

Figure 7-67 Glitch Energy, 2.7-V, 12-Bit, 1-LSB Step, Rising Edge

Figure 7-69 Glitch Energy, 2.7-V, 8-Bit, 1-LSB Step, Rising Edge

Figure 7-71 Full-Scale Settling Time, 2.7-V Rising Edge

Figure 7-73 Half-Scale Settling Time, 2.7-V Rising Edge

Figure 7-75 Power-On Reset to 0-V Power-On Glitch
