4.3 Typical MOSFET Characteristics

(T_A = 25°C unless otherwise stated)

Figure 4-1 Transient Thermal Impedance

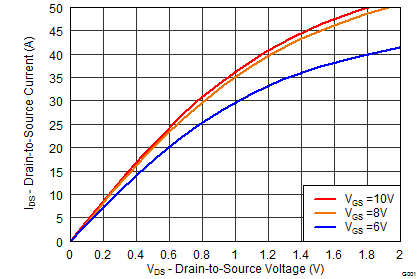

Figure 4-2 Saturation Characteristics

Figure 4-3 Transfer Characteristics

Figure 4-4 Gate Charge

Figure 4-6 Threshold Voltage vs Temperature

Figure 4-8 Normalized On-State Resistance vs Temperature

Figure 4-10 Maximum Safe Operating Area

Figure 4-12 Maximum Drain Current vs Temperature

Figure 4-5 Capacitance

Figure 4-7 On-State Resistance vs Gate-to-Source Voltage

Figure 4-9 Typical Diode Forward Voltage

Figure 4-11 Single Pulse Unclamped Inductive Switching
