Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)
CSD87503Q3E D001_SLPS661.png
Figure 1. Transient Thermal Impedance
CSD87503Q3E D002_SLPS661.gif
Note: Measurement taken with both gates tied together
Figure 2. Saturation Characteristics
CSD87503Q3E D004_SLPS661.gif
ID1D2 = 6 A VD1D2 = 15 V
Figure 4. Gate Charge
CSD87503Q3E D006_SLPS661.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature
CSD87503Q3E D008_SLPS661.gif
ID1D2 = 6 A VD1D2 = 15 V
Note: Measurement taken with both gates tied together
Figure 8. Normalized On-State Resistance vs Temperature
CSD87503Q3E D010_SLPS661.gif
Single pulse, max RθJC = 8°C/W
Figure 10. Maximum Safe Operating Area
CSD87503Q3E D012_SLPS661.gif
Figure 12. Maximum Drain Current vs Temperature
CSD87503Q3E D003_SLPS661.gif
VD1D2 = 5 V
Figure 3. Transfer Characteristics
CSD87503Q3E D005_SLPS661.gif

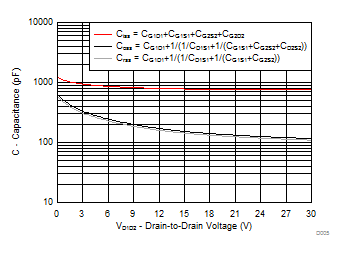

Figure 5. Capacitance
CSD87503Q3E D007_SLPS661.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD87503Q3E D009_SLPS661.gif
Figure 9. Typical Diode Forward Voltage
CSD87503Q3E D011_SLPS661.gif
Figure 11. Single Pulse Unclamped Inductive Switching
