Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

GUID-4B0B2A60-59DE-4503-975B-1554F0A0BFAA-low.pngFigure 4-1 Transient Thermal Impedance

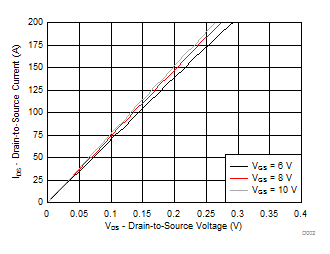

GUID-06B43103-14B5-497B-8CD5-CB99A1DD7571-low.gifFigure 4-2 Saturation Characteristics
VDS = 5 V

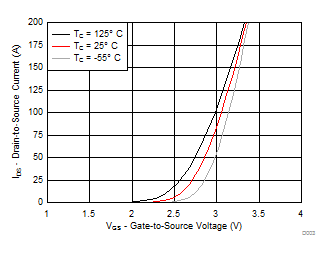

Figure 4-3 Transfer Characteristics
VDS = 50 VID = 100 A
Figure 4-4 Gate Charge
ID = 250 µA
Figure 4-6 Threshold Voltage vs Temperature
ID = 100 A

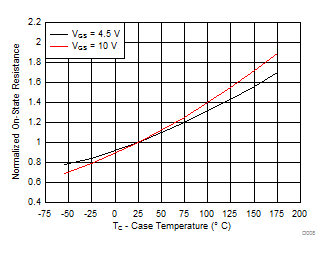

Figure 4-8 Normalized On-State Resistance vs Temperature
GUID-20230619-SS0I-MBQP-S3MF-FFJZCTCRRCKH-low.svg
Single Pulse Max RθJC = 0.4°C/W
Figure 4-10 Maximum Safe Operating Area
GUID-FBCF61CC-58E5-441C-9122-B20295491E0A-low.gifFigure 4-12 Maximum Drain Current vs Temperature
GUID-E37C02F9-1487-453F-9533-D5CA0118C6AE-low.gifFigure 4-5 Capacitance
GUID-BAAE55B3-2F63-47B1-8911-133EF3EE5C24-low.gifFigure 4-7 On-State Resistance vs Gate-to-Source Voltage
GUID-552EC168-EE01-44E4-8522-5001D7881675-low.gifFigure 4-9 Typical Diode Forward Voltage
GUID-3A01B36F-EEC5-4C40-9489-71F3589A1E7E-low.gifFigure 4-11 Single Pulse Unclamped Inductive Switching
