SBAS860 August   2017 ADC31RF80

PRODUCTION DATA.

  1. Features
  2. Applications
  3. Description
  4. Revision History
  5. Pin Configuration and Functions
  6. Specifications
    1. 6.1  Absolute Maximum Ratings
    2. 6.2  ESD Ratings
    3. 6.3  Recommended Operating Conditions
    4. 6.4  Thermal Information
    5. 6.5  Electrical Characteristics
    6. 6.6  AC Performance Characteristics: fS = 2949.12 MSPS
    7. 6.7  AC Performance Characteristics: fS = 2457.6 MSPS (Performance Optimized for F + A + D Band)
    8. 6.8  AC Performance Characteristics: fS = 2457.6 MSPS (Performance Optimized for F + A Band)
    9. 6.9  Digital Requirements
    10. 6.10 Timing Requirements
    11. 6.11 Typical Characteristics
  7. Parameter Measurement Information
    1. 7.1 Input Clock Diagram
  8. Detailed Description
    1. 8.1 Overview
    2. 8.2 Functional Block Diagram
    3. 8.3 Feature Description
      1. 8.3.1  Analog Inputs
        1. 8.3.1.1 Input Clamp Circuit
      2. 8.3.2  Clock Input
      3. 8.3.3  SYSREF Input
        1. 8.3.3.1 Using SYSREF
        2. 8.3.3.2 Frequency of the SYSREF Signal
      4. 8.3.4  DDC Block
        1. 8.3.4.1 Operating Mode: Receiver
        2. 8.3.4.2 Operating Mode: Wide-Bandwidth Observation Receiver
        3. 8.3.4.3 Decimation Filters
          1. 8.3.4.3.1  Divide-by-4
          2. 8.3.4.3.2  Divide-by-6
          3. 8.3.4.3.3  Divide-by-8
          4. 8.3.4.3.4  Divide-by-9
          5. 8.3.4.3.5  Divide-by-10
          6. 8.3.4.3.6  Divide-by-12
          7. 8.3.4.3.7  Divide-by-16
          8. 8.3.4.3.8  Divide-by-18
          9. 8.3.4.3.9  Divide-by-20
          10. 8.3.4.3.10 Divide-by-24
          11. 8.3.4.3.11 Divide-by-32
          12. 8.3.4.3.12 Latency With Decimation Options
        4. 8.3.4.4 Numerically-Controlled Oscillators (NCOs) and Mixers
      5. 8.3.5  NCO Switching
      6. 8.3.6  SerDes Transmitter Interface
      7. 8.3.7  Eye Diagrams
      8. 8.3.8  Alarm Outputs: Power Detectors for AGC Support
        1. 8.3.8.1 Absolute Peak Power Detector
        2. 8.3.8.2 Crossing Detector
        3. 8.3.8.3 RMS Power Detector
        4. 8.3.8.4 GPIO AGC MUX
      9. 8.3.9  Power-Down Mode
      10. 8.3.10 ADC Test Pattern
        1. 8.3.10.1 Digital Block
        2. 8.3.10.2 Transport Layer
        3. 8.3.10.3 Link Layer
    4. 8.4 Device Functional Modes
      1. 8.4.1 Device Configuration
      2. 8.4.2 JESD204B Interface
        1. 8.4.2.1 JESD204B Initial Lane Alignment (ILA)
        2. 8.4.2.2 JESD204B Frame Assembly
        3. 8.4.2.3 JESD204B Frame Assembly with Decimation (Single-Band DDC): Complex Output
        4. 8.4.2.4 JESD204B Frame Assembly with Decimation (Single-Band DDC): Real Output
        5. 8.4.2.5 JESD204B Frame Assembly with Decimation (Single-Band DDC): Real Output
        6. 8.4.2.6 JESD204B Frame Assembly with Decimation (Dual-Band DDC): Complex Output
        7. 8.4.2.7 JESD204B Frame Assembly with Decimation (Dual-Band DDC): Real Output
      3. 8.4.3 Serial Interface
        1. 8.4.3.1 Serial Register Write: Analog Bank
        2. 8.4.3.2 Serial Register Readout: Analog Bank
        3. 8.4.3.3 Serial Register Write: Digital Bank
        4. 8.4.3.4 Serial Register Readout: Digital Bank
        5. 8.4.3.5 Serial Register Write: Decimation Filter and Power Detector Pages
    5. 8.5 Register Maps
      1. 8.5.1  Example Register Writes
      2. 8.5.2  Register Descriptions
        1. 8.5.2.1 General Registers
          1. 8.5.2.1.1 Register 000h (address = 000h), General Registers
          2. 8.5.2.1.2 Register 002h (address = 002h), General Registers
          3. 8.5.2.1.3 Register 003h (address = 003h), General Registers
          4. 8.5.2.1.4 Register 004h (address = 004h), General Registers
          5. 8.5.2.1.5 Register 010h (address = 010h), General Registers
          6. 8.5.2.1.6 Register 011h (address = 011h), General Registers
          7. 8.5.2.1.7 Register 012h (address = 012h), General Registers
      3. 8.5.3  Master Page (M = 0)
        1. 8.5.3.1 Register 020h (address = 020h), Master Page
        2. 8.5.3.2 Register 032h (address = 032h), Master Page
        3. 8.5.3.3 Register 039h (address = 039h), Master Page
        4. 8.5.3.4 Register 03Ch (address = 03Ch), Master Page
        5. 8.5.3.5 Register 05Ah (address = 05Ah), Master Page
        6. 8.5.3.6 Register 03Dh (address = 3Dh), Master Page
        7. 8.5.3.7 Register 057h (address = 057h), Master Page
        8. 8.5.3.8 Register 058h (address = 058h), Master Page
      4. 8.5.4  ADC Page (FFh, M = 0)
        1. 8.5.4.1 Register 03Fh (address = 03Fh), ADC Page
        2. 8.5.4.2 Register 042h (address = 042h), ADC Page
      5. 8.5.5  Digital Function Page (610000h, M = 1)
        1. 8.5.5.1 Register A6h (address = 0A6h), Digital Function Page
      6. 8.5.6  Offset Corr Page (610000h, M = 1)
        1. 8.5.6.1 Register 034h (address = 034h), Offset Corr Page
        2. 8.5.6.2 Register 068h (address = 068h), Offset Corr Page
      7. 8.5.7  Digital Gain Page (610005h, M = 1)
        1. 8.5.7.1 Register 0A6h (address = 0A6h), Digital Gain Page
      8. 8.5.8  Main Digital Page (680000h, M = 1)
        1. 8.5.8.1  Register 000h (address = 000h), Main Digital Page
        2. 8.5.8.2  Register 0A2h (address = 0A2h), Main Digital Page
        3. 8.5.8.3  Register 0A5h (address = 0A5h), Main Digital Page
        4. 8.5.8.4  Register 0A9h (address = 0A9h), Main Digital Page
        5. 8.5.8.5  Register 0B0h (address = 0B0h), Main Digital Page
        6. 8.5.8.6  Register 0B1h (address = 0B1h), Main Digital Page
        7. 8.5.8.7  Register 0B2h (address = 0B2h), Main Digital Page
        8. 8.5.8.8  Register 0B3h (address = 0B3h), Main Digital Page
        9. 8.5.8.9  Register 0B4h (address = 0B4h), Main Digital Page
        10. 8.5.8.10 Register 0B5h (address = 0B5h), Main Digital Page
        11. 8.5.8.11 Register 0B6h (address = 0B6h), Main Digital Page
        12. 8.5.8.12 Register 0B7h (address = 0B7h), Main Digital Page
        13. 8.5.8.13 Register 0B8h (address = 0B8h), Main Digital Page
        14. 8.5.8.14 Register 0B9h (address = 0B9h), Main Digital Page
        15. 8.5.8.15 Register 0BAh (address = 0BAh), Main Digital Page
        16. 8.5.8.16 Register 0BBh (address = 0BBh), Main Digital Page
      9. 8.5.9  JESD Digital Page (6900h, M = 1)
        1. 8.5.9.1  Register 001h (address = 001h), JESD Digital Page
        2. 8.5.9.2  Register 002h (address = 002h ), JESD Digital Page
        3. 8.5.9.3  Register 003h (address = 003h), JESD Digital Page
        4. 8.5.9.4  Register 004h (address = 004h), JESD Digital Page
        5. 8.5.9.5  Register 006h (address = 006h), JESD Digital Page
        6. 8.5.9.6  Register 007h (address = 007h), JESD Digital Page
        7. 8.5.9.7  Register 016h (address = 016h), JESD Digital Page
        8. 8.5.9.8  Register 017h (address = 017h), JESD Digital Page
        9. 8.5.9.9  Register 032h-035h (address = 032h-035h), JESD Digital Page
        10. 8.5.9.10 Register 036h (address = 036h), JESD Digital Page
        11. 8.5.9.11 Register 037h (address = 037h), JESD Digital Page
        12. 8.5.9.12 Register 03Ch (address = 03Ch), JESD Digital Page
        13. 8.5.9.13 Register 03Eh (address = 03Eh), JESD Digital Page
      10. 8.5.10 Decimation Filter Page
        1. 8.5.10.1  Register 000h (address = 000h), Decimation Filter Page
        2. 8.5.10.2  Register 001h (address = 001h), Decimation Filter Page
        3. 8.5.10.3  Register 002h (address = 2h), Decimation Filter Page
        4. 8.5.10.4  Register 005h (address = 005h), Decimation Filter Page
        5. 8.5.10.5  Register 007h (address = 007h), Decimation Filter Page
        6. 8.5.10.6  Register 008h (address = 008h), Decimation Filter Page
        7. 8.5.10.7  Register 009h (address = 009h), Decimation Filter Page
        8. 8.5.10.8  Register 00Ah (address = 00Ah), Decimation Filter Page
        9. 8.5.10.9  Register 00Bh (address = 00Bh), Decimation Filter Page
        10. 8.5.10.10 Register 00Ch (address = 00Ch), Decimation Filter Page
        11. 8.5.10.11 Register 00Dh (address = 00Dh), Decimation Filter Page
        12. 8.5.10.12 Register 00Eh (address = 00Eh), Decimation Filter Page
        13. 8.5.10.13 Register 00Fh (address = 00Fh), Decimation Filter Page
        14. 8.5.10.14 Register 010h (address = 010h), Decimation Filter Page
        15. 8.5.10.15 Register 011h (address = 011h), Decimation Filter Page
        16. 8.5.10.16 Register 014h (address = 014h), Decimation Filter Page
        17. 8.5.10.17 Register 016h (address = 016h), Decimation Filter Page
        18. 8.5.10.18 Register 01Eh (address = 01Eh), Decimation Filter Page
        19. 8.5.10.19 Register 01Fh (address = 01Fh), Decimation Filter Page
        20. 8.5.10.20 Register 033h-036h (address = 033h-036h), Decimation Filter Page
        21. 8.5.10.21 Register 037h (address = 037h), Decimation Filter Page
        22. 8.5.10.22 Register 038h (address = 038h), Decimation Filter Page
        23. 8.5.10.23 Register 039h (address = 039h), Decimation Filter Page
        24. 8.5.10.24 Register 03Ah (address = 03Ah), Decimation Filter Page
      11. 8.5.11 Power Detector Page
        1. 8.5.11.1  Register 000h (address = 000h), Power Detector Page
        2. 8.5.11.2  Register 001h-002h (address = 001h-002h), Power Detector Page
        3. 8.5.11.3  Register 003h (address = 003h), Power Detector Page
        4. 8.5.11.4  Register 007h-00Ah (address = 007h-00Ah), Power Detector Page
        5. 8.5.11.5  Register 00Bh-00Ch (address = 00Bh-00Ch), Power Detector Page
        6. 8.5.11.6  Register 00Dh (address = 00Dh), Power Detector Page
        7. 8.5.11.7  Register 00Eh (address = 00Eh), Power Detector Page
        8. 8.5.11.8  Register 00Fh, 010h-012h, and 016h-019h (address = 00Fh, 010h-012h, and 016h-019h), Power Detector Page
        9. 8.5.11.9  Register 013h-01Ah (address = 013h-01Ah), Power Detector Page
        10. 8.5.11.10 Register 01Dh-01Eh (address = 01Dh-01Eh), Power Detector Page
        11. 8.5.11.11 Register 020h (address = 020h), Power Detector Page
        12. 8.5.11.12 Register 021h (address = 021h), Power Detector Page
        13. 8.5.11.13 Register 022h-025h (address = 022h-025h), Power Detector Page
        14. 8.5.11.14 Register 027h (address = 027h), Power Detector Page
        15. 8.5.11.15 Register 02Bh (address = 02Bh), Power Detector Page
        16. 8.5.11.16 Register 032h-035h (address = 032h-035h), Power Detector Page
        17. 8.5.11.17 Register 037h (address = 037h), Power Detector Page
        18. 8.5.11.18 Register 038h (address = 038h), Power Detector Page
  9. Application and Implementation
    1. 9.1 Application Information
      1. 9.1.1 Start-Up Sequence
      2. 9.1.2 Hardware Reset
      3. 9.1.3 SNR and Clock Jitter
        1. 9.1.3.1 External Clock Phase Noise Consideration
      4. 9.1.4 Power Consumption in Different Modes
      5. 9.1.5 Using DC Coupling in the ADC31RF80
        1. 9.1.5.1 Bypassing the Offset Corrector Block
          1. 9.1.5.1.1 Effect of Temperature
    2. 9.2 Typical Application
      1. 9.2.1 Design Requirements
        1. 9.2.1.1 Transformer-Coupled Circuits
      2. 9.2.2 Detailed Design Procedure
      3. 9.2.3 Application Curves
  10. 10Power Supply Recommendations
  11. 11Layout
    1. 11.1 Layout Guidelines
    2. 11.2 Layout Example
  12. 12Device and Documentation Support
    1. 12.1 Documentation Support
      1. 12.1.1 Related Documentation
    2. 12.2 Receiving Notification of Documentation Updates
    3. 12.3 Community Resources
    4. 12.4 Trademarks
    5. 12.5 Electrostatic Discharge Caution
    6. 12.6 Glossary
  13. 13Mechanical, Packaging, and Orderable Information

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

Specifications

Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage range AVDD19 –0.3 2.1 V
AVDD –0.3 1.4
DVDD –0.3 1.4
Voltage applied to input pins INP, INM –0.3 AVDD19 + 0.3 V
CLKINP, CLKINM –0.3 AVDD + 0.6
SYSREFP, SYSREFM, SYNCBP, SYNCBM –0.3 AVDD + 0.6
SCLK, SEN, SDIN, RESET, PDN, GPIO1, GPIO2, GPIO3, GPIO4 –0.2 AVDD19 + 0.2
Voltage applied to output pins –0.3 2.2 V
Temperature Operating free-air, TA –40 85 °C
Storage, Tstg –65 150
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±1000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Supply voltage(2) AVDD19 1.8 1.9 2.0 V
AVDD 1.1 1.15 1.25
DVDD 1.1 1.15 1.2
Temperature Operating free-air, TA –40 85 °C
Operating junction, TJ 105(1) 125
Prolonged use above this junction temperature may increase the device failure-in-time (FIT) rate.
Always power up the DVDD supply (1.15 V) before the AVDD19 (1.9 V) supply. The AVDD (1.15 V) supply can come up in any order.

Thermal Information

THERMAL METRIC(1) ADC31RF80 UNIT
RMP (VQFN)
72 PINS
RθJA Junction-to-ambient thermal resistance 21.8 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 4.4 °C/W
RθJB Junction-to-board thermal resistance 2.0 °C/W
ψJT Junction-to-top characterization parameter 0.1 °C/W
ψJB Junction-to-board characterization parameter 2.0 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 0.2 °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

Electrical Characteristics

typical values are specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and chip sampling rate = 2949.12 MSPS, 50% clock duty cycle, DDC-bypassed performance, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
POWER CONSUMPTION (Divide-by-4, Complex Output Mode(2))
IAVDD19 1.9-V analog supply current fS = 2949.12 MSPS 956 1439 mA
IAVDD 1.15-V analog supply current fS = 2949.12 MSPS 499 813 mA
IDVDD 1.15-V digital supply current fS = 2949.12 MSPS 975 1164 mA
PD Power dissipation fS = 2949.12 MSPS 3.51 4.71 W
Global power-down power dissipation 245 mW
ANALOG INPUTS
Resolution 14 Bits
Differential input full-scale 1.35 VPP
VIC Input common-mode voltage 1.2(3) V
RIN Input resistance Differential resistance at dc 65 Ω
CIN Input capacitance Differential capacitance at dc 2 pF
VCM common-mode voltage output 1.2 V
Analog input bandwidth
(–3-dB point)
ADC driven with 50-Ω source 3200 MHz
CLOCK INPUT(1)
Input clock frequency 1.5 3 GSPS
Differential (peak-to-peak) input clock amplitude 0.5 1.5 2.5 VPP
Input clock duty cycle 45% 50% 55%
Internal clock biasing 1.0 V
Internal clock termination (differential) 100 Ω
See Figure 79.
Full-scale signal is applied to the analog input; see the Power Consumption in Different Modes section for more details.
When used in dc-coupling mode, the common-mode voltage at the analog inputs should be kept within VCM ±25 mV for best performance.

AC Performance Characteristics: fS = 2949.12 MSPS

typical values specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and chip sampling rate = 2949.12 MSPS, 50% clock duty cycle, DDC-bypassed performance(5), AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN(3) NOM MAX UNIT
SNR Signal-to-noise ratio fIN = 100 MHz, AOUT = –2 dBFS 63.2 dBFS
fIN = 900 MHz, AOUT = –2 dBFS 61.4
fIN = 1850 MHz, AOUT = –2 dBFS 56 58.5
fIN = 2100 MHz, AOUT = –2 dBFS 57.7
fIN = 2600 MHz, AOUT = –2 dBFS 56.6
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 54.6
NSD Noise spectral density averaged across the Nyquist zone fIN = 100 MHz, AOUT = –2 dBFS 154.9 dBFS/Hz
fIN = 900 MHz, AOUT = –2 dBFS 153.1
fIN = 1850 MHz, AOUT = –2 dBFS 147.7 150.2
fIN = 2100 MHz, AOUT = –2 dBFS 149.4
fIN = 2600 MHz, AOUT = –2 dBFS 148.3
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 146.3
Small-signal SNR fIN = 1850 MHz, AOUT = –40 dBFS 63.1 dBFS
NF(1) Noise figure fIN = 1850 MHz, AOUT = –40 dBFS 24.7 dB
SINAD Signal-to-noise and distortion ratio fIN = 100 MHz, AOUT = –2 dBFS 62.1 dBFS
fIN = 900 MHz, AOUT = –2 dBFS 61.0
fIN = 1850 MHz, AOUT = –2 dBFS 57.8
fIN = 2100 MHz, AOUT = –2 dBFS 56.9
fIN = 2600 MHz, AOUT = –2 dBFS 55.7
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 54.5
ENOB Effective number of bits fIN = 100 MHz, AOUT = –2 dBFS 10.0 Bits
fIN = 900 MHz, AOUT = –2 dBFS 9.8
fIN = 1850 MHz, AOUT = –2 dBFS 9.3
fIN = 2100 MHz, AOUT = –2 dBFS 9.2
fIN = 2600 MHz, AOUT = –2 dBFS 9.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 8.8
SFDR Spurious-free dynamic range fIN = 100 MHz, AOUT = –2 dBFS 68.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 71
fIN = 1850 MHz, AOUT = –2 dBFS 58 65
fIN = 2100 MHz, AOUT = –2 dBFS 65
fIN = 2600 MHz, AOUT = –2 dBFS 63
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 68
HD2(4) Second-order harmonic distortion fIN = 100 MHz, AOUT = –2 dBFS 68 dBc
fIN = 900 MHz, AOUT = –2 dBFS 71
fIN = 1850 MHz, AOUT = –2 dBFS 58 65
fIN = 2100 MHz, AOUT = –2 dBFS 65
fIN = 2700 MHz, AOUT = –2 dBFS 63
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 68
HD3 Third-order harmonic distortion fIN = 100 MHz, AOUT = –2 dBFS 73 dBc
fIN = 900 MHz, AOUT = –2 dBFS 80
fIN = 1850 MHz, AOUT = –2 dBFS 62 71
fIN = 2100 MHz, AOUT = –2 dBFS 77
fIN = 2600 MHz, AOUT = –2 dBFS 79
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 76
HD4, HD5 Fourth- and fifth-order harmonic distortion fIN = 100 MHz, AOUT = –2 dBFS 78 dBc
fIN = 900 MHz, AOUT = –2 dBFS 81.0
fIN = 1850 MHz, AOUT = –2 dBFS 69 76
fIN = 2100 MHz, AOUT = –2 dBFS 77
fIN = 2600 MHz, AOUT = –2 dBFS 77
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 84
IL spur Interleaving spurs:
fS / 2 – fIN,
fS / 4 ± fIN
fIN = 100 MHz, AOUT = –2 dBFS 89 dBc
fIN = 900 MHz, AOUT = –2 dBFS 88
fIN = 1850 MHz, AOUT = –2 dBFS 68 82
fIN = 2100 MHz, AOUT = –2 dBFS 79
fIN = 2600 MHz, AOUT = –2 dBFS 81
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 75
HD2 IL Interleaving spur for HD2:
fS / 2 – HD2
fIN = 100 MHz, AOUT = –2 dBFS 85.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 79.0
fIN = 1850 MHz, AOUT = –2 dBFS 62 80.0
fIN = 2100 MHz, AOUT = –2 dBFS 74.0
fIN = 2600 MHz, AOUT = –2 dBFS 74.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 80.0
Worst spur Spurious-free dynamic range (excluding HD2, HD3, HD4, HD5, and interleaving spurs IL and HD2 IL) fIN = 100 MHz, AOUT = –2 dBFS 83.0 dBc
fIN = 900 MHz, AOUT = –2 dBFS 76.0
fIN = 1850 MHz, AOUT = –2 dBFS 64 75.0
fIN = 2100 MHz, AOUT = –2 dBFS 75.0
fIN = 2600 MHz, AOUT = –2 dBFS 75.0
fIN = 3500 MHz, AOUT(2) = –3 dBFS with 2-dB gain 72.0
IMD3 Two-tone, third-order intermodulation distortion fIN1 = 900 MHz, fIN2 = 950 MHz,
AOUT = –8 dBFS (each tone)
79 dBFS
fIN1 = 1770 MHz, fIN2 = 1790 MHz,
AOUT = –8 dBFS (each tone)
70
fIN1 = 1800 MHz, fIN2 = 2600 MHz,
AOUT = –8 dBFS (each tone)
73
fIN1 = 3490 MHz, fIN2 = 3510 MHz,
AOUT = –8 dBFS (each tone) with 2-dB gain
67
The ADC internal resistance = 65 Ω, the driving source resistance = 50 Ω.
Output amplitude, AOUT, refers to the signal amplitude in the ADC digital output that is same as the analog input amplitude, AIN, except when the digital gain feature is used. If digital gain is G, then AOUT = G + AIN.
Minimum values are specified at AOUT = –3 dBFS.
The minimum value of HD2 is specified by bench characterization.
Performance is shown with DDC bypassed. When DDC is enabled, performance improves by the decimation filtering process.

AC Performance Characteristics: fS = 2457.6 MSPS
(Performance Optimized for F + A + D Band(1))

typical values specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and chip sampling rate = 2949.12 MSPS, 50% clock duty cycle, DDC-bypassed performance, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN NOM MAX UNIT
SNR Signal-to-noise ratio fIN = 1850 MHz, AOUT = –2 dBFS 58.5 dBFS
fIN = 2600 MHz, AOUT = –2 dBFS 55.8
SFDR Spurious-free dynamic range fIN = 1850 MHz, AOUT = –2 dBFS 60.0 dBc
fIN = 2600 MHz, AOUT = –2 dBFS 57.0
HD2 Second-order harmonic distortion fIN = 1850 MHz, AOUT = –2 dBFS 59.0 dBc
fIN = 2600 MHz, AOUT = –2 dBFS 57.0
HD3 Third-order harmonic distortion fIN = 1850 MHz, AOUT = –2 dBFS 75.0 dBc
fIN = 2600 MHz, AOUT = –2 dBFS 65.0
IL spur Interleaving spurs:
fS / 2 – fIN,
fS / 4 ± fIN
fIN = 1850 MHz, AOUT = –2 dBFS 84.0 dBc
fIN = 2600 MHz, AOUT = –2 dBFS 76.0
HD2 IL Interleaving spur for HD2:
fS / 2 – HD2
fIN = 1850 MHz, AOUT = –2 dBFS 76.0 dBc
fIN = 2600 MHz, AOUT = –2 dBFS 67.0
IMD3 Two-tone, third-order intermodulation distortion fIN1 = 1800 MHz, fIN2 = 2600 MHz,
AOUT = –8 dBFS (each tone)
67.0 dBFS
F-band = 1880 MHz to 1920 MHz, A-band = 2010 MHz to 2025 MHz, and D-band = 2570 MHz to 2620 MHz.

AC Performance Characteristics: fS = 2457.6 MSPS
(Performance Optimized for F + A Band(1))

typical values specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and chip sampling rate = 2949.12 MSPS, 50% clock duty cycle, DDC-bypassed performance, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN NOM MAX UNIT
SNR Signal-to-noise ratio fIN = 1850 MHz, AOUT = –2 dBFS 58.7 dBFS
fIN = 2100 MHz, AOUT = –2 dBFS 57.9
SFDR Spurious-free dynamic range fIN = 1850 MHz, AOUT = –2 dBFS 71.0 dBc
fIN = 2100 MHz, AOUT = –2 dBFS 69.0
HD2 Second-order harmonic distortion fIN = 1850 MHz, AOUT = –2 dBFS 71.0 dBc
fIN = 2100 MHz, AOUT = –2 dBFS 69.0
HD3 Third-order harmonic distortion fIN = 1850 MHz, AOUT = –2 dBFS 75.0 dBc
fIN = 2100 MHz, AOUT = –2 dBFS 76.0
IL spur Interleaving spurs:
fS / 2 – fIN,
fS / 4 ± fIN
fIN = 1850 MHz, AOUT = –2 dBFS 82.0 dBc
fIN = 2100 MHz, AOUT = –2 dBFS 84.0
HD2 IL Interleaving spur for HD2:
fS / 2 – HD2
fIN = 1850 MHz, AOUT = –2 dBFS 80.0 dBc
fIN = 2100 MHz, AOUT = –2 dBFS 80.0
F-band = 1880 MHz to 1920 MHz, A-band = 2010 MHz to 2025 MHz, and D-band = 2570 MHz to 2620 MHz.

Digital Requirements

typical values are specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and chip sampling rate = 2949.12 MSPS, DDC bypassed performance, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN NOM MAX UNIT
DIGITAL INPUTS (RESET, SCLK, SEN, SDIN, PDN, GPIO1, GPIO2, GPIO3, GPIO4)
VIH High-level input voltage 0.8 V
VIL Low-level input voltage 0.4 V
IIH High-level input current 50 µA
IIL Low-level input current –50 µA
Ci Input capacitance 4 pF
DIGITAL OUTPUTS (SDOUT, GPIO1, GPIO2, GPIO3, GPIO4)
VOH High-level output voltage AVDD19–0.1 AVDD19 V
VOL Low-level output voltage 0.1 V
DIGITAL INPUTS (SYSREFP and SYSREFM; SYNCBP and SYNCBM; Requires External Biasing)
VID Differential input voltage 350 450 800 mVPP
VCM Input common-mode voltage 1.05 1.2 1.325 V
DIGITAL OUTPUTS (JESD204B Interface: D[3:0], Meets JESD204B LV-0IF-11G-SR Standard)
|VOD| Output differential voltage 700 mVPP
|VOCM| Output common-mode voltage 450 mV
Transmitter short-circuit current Transmitter pins shorted to any voltage between –0.25 V and 1.45 V –100 100 mA
zos Single-ended output impedance 50 Ω
Co Output capacitance Output capacitance inside the device, from either output to ground 2 pF

Timing Requirements

typical values are specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and chip sampling rate = 2949.12 MSPS, 50% clock duty cycle, DDC-bypassed performance, AVDD19 = 1.9 V, AVDD = 1.15 V, DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)
MIN NOM MAX UNIT
SAMPLE TIMING
Aperture delay 250 750 ps
Aperture delay matching between two devices at the same
temperature and supply voltage
±150 ps
Aperture jitter, clock amplitude = 2 VPP 90 fS
Latency
(1)(3)
Data latency, ADC sample to digital output DDC block bypassed 424 Input clock cycles
Fast overrange latency, ADC sample to FOVR indication on GPIO pins 70
tPD Propagation delay time: logic gates and output buffer delay
(does not change with fS)
6 ns
SYSREF TIMING(2)
tSU_SYSREF SYSREF setup time: referenced to clock rising edge, 2949.12 MSPS 140 70 ps
tH_SYSREF SYSREF hold time: referenced to clock rising edge, 2949.12 MSPS 50 20 ps
Valid transition window sampling period: tSU_SYSREF – tH_SYSREF, 2949.12 MSPS 143 ps
JESD OUTPUT INTERFACE TIMING
UI Unit interval: 12.5 Gbps 80 100 400 ps
Serial output data rate 2.5 10.0 12.5 Gbps
Rise, fall times: 1-pF, single-ended load capacitance to ground 60 ps
Total jitter: BER of 1E-15 and lane rate = 12.5 Gbps 25 %UI
Random jitter: BER of 1E-15 and lane rate = 12.5 Gbps 0.99 %UI, rms
Deterministic jitter: BER of 1E-15 and lane rate = 12.5 Gbps 9.1 %UI, pk-pk
Overall latency = latency + tPD.
Common-mode voltage for the SYSREF input is kept at 1.2 V.
Latency increases when the DDC modes are used; see Table 4.
ADC31RF80 digital_inpt_outpts_sbas860.gif
VOCM is not the same as VICM. Similarly, VOD is not the same as VID.
Figure 1. Logic Levels for Digital Inputs and Outputs
ADC31RF80 tmg_rqrmnts_dgm_sbas747.gif Figure 2. SYSREF Timing Diagram

Typical Characteristics

typical values are specified at an ambient temperature of 25°C; minimum and maximum values are specified over an ambient temperature range of –40°C to +85°C; and ADC sampling rate = 2949.12 MSPS, DDC bypassed performance, 50% clock duty cycle, AVDD19 = 1.9 V, AVDD = DVDD = 1.15 V, –2-dBFS differential input, and 0-dB digital gain (unless otherwise noted)

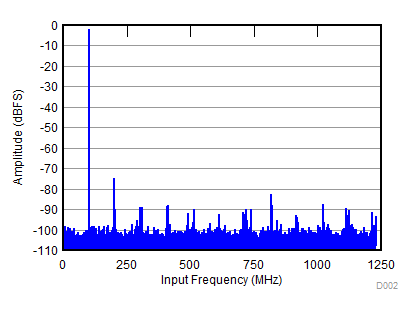

ADC31RF80 D001_SBAS860.gif
SNR = 63.4 dBFS; SFDR = 69 dBc;
HD2 = –69 dBc; HD3 = –71 dBc; non HD2, HD3 = 80 dBc;
IL spur = 82 dBc; fIN = 100 MHz
Figure 3. FFT for 100-MHz Input Frequency
ADC31RF80 D003_SBAS860.gif
SNR = 60.8 dBFS; SFDR = 71 dBc;
HD2 = –71 dBc; HD3 = –80 dBc; non HD2, HD3 = 83 dBc;
IL spur = 83 dBc; fIN = 900 MHz
Figure 5. FFT for 900-MHz Input Signal

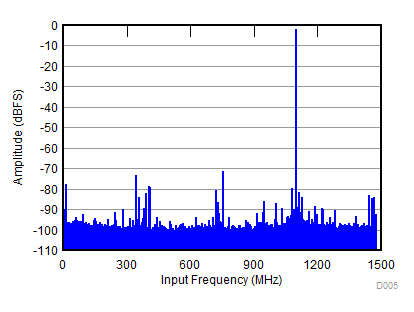

ADC31RF80 D005_SBAS860.gif
SNR = 58.9 dBFS; SFDR = 69 dBc;
HD2 = –69 dBc; HD3 = –71 dBc; non HD2, HD3 = 77 dBc;
IL spur = 76 dBc; fIN = 1.85 GHz
Figure 7. FFT for 1850-MHz Input Signal
ADC31RF80 D007_SBAS860.gif
SNR = 57.9 dBFS; SFDR = 63 dBc;
HD2 = –63 dBc; HD3 = –76 dBc; non HD2, HD3 = 78 dBc;
IL spur = 73 dBc; fIN = 2.1 GHz
Figure 9. FFT for 2100-MHz Input Signal
ADC31RF80 D009_SBAS860.gif
SNR = 56.8 dBFS; SFDR = 65 dBc;
HD2 = –65 dBc; HD3 = –71 dBc; non HD2, HD3 = 89 dBc;
IL spur = 74 dBc; fIN = 2.6 GHz
Figure 11. FFT for 2600-MHz Input Signal
ADC31RF80 D011_SBAS860.gif
SNR = 54.6 dBFS; SFDR = 70 dBc;
HD2 = –72 dBc; HD3 = –74 dBc; non HD2, HD3 = 70 dBc;
IL spur = 76 dBc; fIN = 3.5 GHz, AIN = –3 dBFS with 2-dB gain
Figure 13. FFT for 3500-MHz Input Signal
ADC31RF80 D013_SBAS860.gif
fIN1 = 900 MHz, fIN2 = 950 MHz, AIN = –8 dBFS, IMD = 79 dBFS
Figure 15. FFT for Two-Tone Input Signal (–8 dBFS)
ADC31RF80 D015_SBAS860.gif
fIN1 = 900 MHz, fIN2 = 950 MHz, AIN = –8 dBFS, IMD = 78 dBFS
Figure 17. FFT for Two-Tone Input Signal
(–8 dBFS, fS = 2457.6 MSPS)
ADC31RF80 D017_SBAS860.gif
fIN1 = 1.77 GHz, fIN2 = 1.79 GHz, AIN = –8 dBFS, IMD = 75 dBFS
Figure 19. FFT for Two-Tone Input Signal (–8 dBFS)
ADC31RF80 D019_SBAS860.gif
fIN1 = 1.77 GHz, fIN2 = 1.79 GHz, AIN = –8 dBFS,
IMD = 76 dBFS
Figure 21. FFT for Two-Tone Input Signal
(–8 dBFS, fS = 2457.6 MSPS)
ADC31RF80 D021_SBAS860.gif
fIN1 = 1.8 MHz, fIN2 = 2.6 GHz, AIN = –8 dBFS, IMD = 70 dBFS
Figure 23. FFT for Two-Tone Input Signal (–8 dBFS)

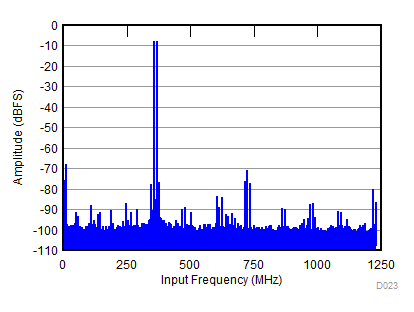

ADC31RF80 D023_SBAS860.gif
fIN1 = 2.09 GHz, fIN2 = 2.1 GHz, AIN = –8 dBFS, IMD = 71 dBFS
Figure 25. FFT for Two-Tone Input Signal
(–8 dBFS, fS = 2457.6 MSPS)
ADC31RF80 D025_SBAS860.gif
fIN1 = 3.49 MHz, fIN2 = 3.51 GHz, IMD = 75 dBFS,
AIN = –8 dBFS with 2-dB gain
Figure 27. FFT for Two-Tone Input Signal (–8 dBFS)
ADC31RF80 D027_SBAS860.gif
fIN1 = 2.59 GHz, fIN2 = 2.6 GHz, AIN = –8 dBFS, IMD = 68 dBFS
Figure 29. FFT for Two-Tone Input Signal
(–8 dBFS, fS = 2457.6 MSPS)
ADC31RF80 D029_SBAS860.gif
fIN1 = 1.77 GHz, fIN2 = 1.79 GHz
Figure 31. Intermodulation Distortion vs Input Amplitude (1770 MHz and 1790 MHz)
ADC31RF80 D031_SBAS860.gif
fIN1 = 1.8 GHz, fIN2 = 2.6 GHz, AIN = –36 dBFS

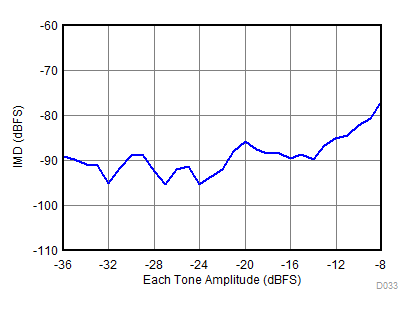

Figure 33. Intermodulation Distortion vs Input Amplitude (1800 MHz and 2600 MHz)
ADC31RF80 D033_SBAS860.gif
fIN1 = 3.49 GHz, fIN2 = 3.51 GHz with 2-dB digital gain
Figure 35. Intermodulation Distortion vs Input Amplitude (3490 MHz and 3510 MHz)
ADC31RF80 D035_SBAS860.gif
Figure 37. Spurious-Free Dynamic Range vs
Input Frequency
ADC31RF80 D037_SBAS860.gif
Figure 39. IL Spur vs Input Frequency
ADC31RF80 D039_SBAS860.gif
Figure 41. Signal-to-Noise Ratio vs Input Frequency
ADC31RF80 D041_SBAS860.gif
fIN = 1.85 GHz, AIN = –2 dBFS
Figure 43. Signal-to-Noise Ratio vs
AVDD Supply and Temperature
ADC31RF80 D043_SBAS860.gif
fIN = 3.5 GHz, AIN = –3 dBFS with 2-dB digital gain
Figure 45. Signal-to-Noise Ratio vs
AVDD Supply and Temperature

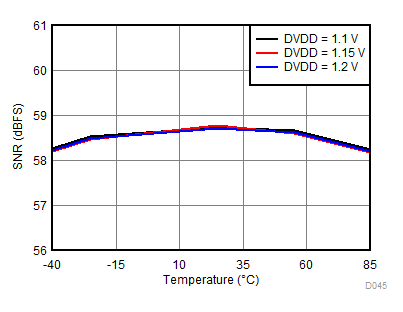

ADC31RF80 D045_SBAS860.gif
fIN = 1.85 GHz, AIN = –2 dBFS
Figure 47. Signal-to-Noise Ratio vs
DVDD Supply and Temperature
ADC31RF80 D047_SBAS860.gif
fIN = 3.5 GHz, AIN = –3 dBFS with 2-dB digital gain
Figure 49. Signal-to-Noise Ratio vs
DVDD Supply and Temperature
ADC31RF80 D049_SBAS860.gif
fIN = 1.85 GHz, AIN = –2 dBFS
Figure 51. Signal-to-Noise Ratio vs
AVDD19 Supply and Temperature
ADC31RF80 D051_SBAS860.gif
fIN = 3.5 GHz, AIN = –3 dBFS with 2-dB digital gain
Figure 53. Signal-to-Noise Ratio vs
AVDD19 Supply and Temperature
ADC31RF80 D053_SBAS860.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 55. HD2 Histogram at AVDD19 = 1.8 V
ADC31RF80 D055_SBAS860.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 57. HD2 Histogram at AVDD19 = 2.0 V
ADC31RF80 D057_SBAS860.gif
fIN = 3.5 GHz
Figure 59. Performance vs Amplitude
ADC31RF80 D059_SBAS860.gif
fIN = 3.5 GHz, AIN = –3 dBFS
Figure 61. Performance vs Clock Amplitude
ADC31RF80 D061_SBAS860.gif
fIN = 3.5 GHz
Figure 63. Performance vs Clock Duty Cycle
ADC31RF80 D063_SBAS860.gif
Figure 65. Power-Supply Rejection Ratio vs
Tone Frequency
ADC31RF80 D065_SBAS860.gif
Figure 67. Common-Mode Rejection Ratio vs
Tone Frequency
ADC31RF80 D067_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 61.6 dBFS, SFDR (includes IL) = 82 dBc
Figure 69. FFT in 6x Decimation (Complex Output)

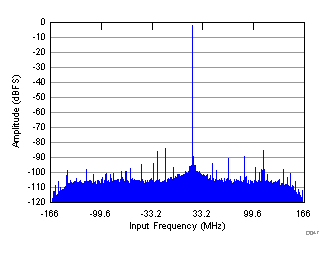

ADC31RF80 D069_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 63 dBFS, SFDR (includes IL) = 82 dBc
Figure 71. FFT in 9x Decimation (Complex Output)
ADC31RF80 D071_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 63.7 dBFS, SFDR (includes IL) = 83 dBc
Figure 73. FFT in 12x Decimation (Complex Output)
ADC31RF80 D073_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 64 dBFS, SFDR (includes IL) = 83 dBc
Figure 75. FFT in 18x Decimation (Complex Output)
ADC31RF80 D075_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 64.4 dBFS, SFDR (includes IL) = 82 dBc
Figure 77. FFT in 24x Decimation (Complex Output)
ADC31RF80 D002_SBAS860.gif
SNR = 63.3 dBFS; SFDR = 72 dBc;
HD2 = –72 dBc; HD3 = –87 dBc; non HD2, HD3 = 85 dBc;
IL spur = 80 dBc; fIN = 100 MHz
Figure 4. FFT for 100-MHz Input Signal (fS = 2457.6 MSPS)
ADC31RF80 D004_SBAS860.gif
SNR = 61.4 dBFS; SFDR = 71 dBc;
HD2 = –80 dBc; HD3 = –73 dBc; non HD2, HD3 = 74 dBc;
IL spur = 80 dBc; fIN = 900 MHz
Figure 6. FFT for 900-MHz Input Signal (fS = 2457.6 MSPS)
ADC31RF80 D006_SBAS860.gif
SNR = 58.9 dBFS; SFDR = 71 dBc;
HD2 = –71 dBc; HD3 = –75 dBc; non HD2, HD3 = 78 dBc;
IL spur = 76 dBc; fIN = 1.85 GHz
Figure 8. FFT for 1850-MHz Input Signal (fS = 2457.6 MSPS)
ADC31RF80 D008_SBAS860.gif
SNR = 58.2 dBFS; SFDR = 64 dBc;
HD2 = –64 dBc; HD3 = –81 dBc; non HD2, HD3 = 83 dBc;
IL spur = 80 dBc; fIN = 2.1 GHz
Figure 10. FFT for 2100-MHz Input Signal (fS = 2457.6 MSPS)
ADC31RF80 D010_SBAS860.gif
SNR = 56.8 dBFS; SFDR = 60 dBc;
HD2 = –60 dBc; HD3 = –71 dBc; non HD2, HD3 = 73 dBc;
IL spur = 75 dBc; fIN = 2.6 GHz
Figure 12. FFT for 2600-MHz Input Signal (fS = 2457.6 MSPS)
ADC31RF80 D012_SBAS860.gif
SNR = 54.9 dBFS; SFDR = 48 dBc;
HD2 = –48 dBc; HD3 = –53 dBc; non HD2, HD3 = 68 dBc;
IL spur = 69 dBc; fIN = 3.5 GHz, AIN = –3 dBFS with 2-dB gain
Figure 14. FFT for 3500-MHz Input Signal (fS = 2457.6 MSPS)
ADC31RF80 D014_SBAS860.gif
fIN1 = 900 MHz, fIN2 = 950 MHz, AIN = –36 dBFS, IMD = 94 dBFS

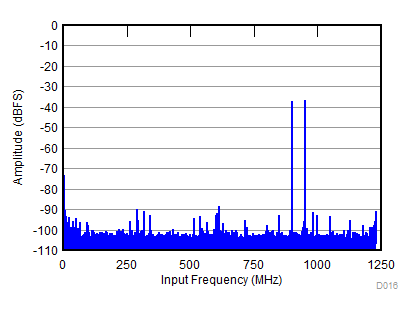

Figure 16. FFT for Two-Tone Input Signal (–36 dBFS)
ADC31RF80 D016_SBAS860.gif
fIN1 = 900 MHz, fIN2 = 950 MHz, AIN = –36 dBFS,
IMD = 92 dBFS
Figure 18. FFT for Two-Tone Input Signal
(–36 dBFS, fS = 2457.6 MSPS)
ADC31RF80 D018_SBAS860.gif
fIN1 = 1.77 GHz, fIN2 = 1.790 GHz, AIN = –36 dBFS,
IMD = 94 dBFS
Figure 20. FFT for Two-Tone Input Signal (–36 dBFS)
ADC31RF80 D020_SBAS860.gif
fIN1 = 1.77 GHz, fIN2 = 1.790 GHz, AIN = –36 dBFS,
IMD = 92 dBFS
Figure 22. FFT for Two-Tone Input Signal
(–36 dBFS, fS = 2457.6 MSPS)
ADC31RF80 D022_SBAS860.gif
fIN1 = 1.8 GHz, fIN2 = 2.6 GHz, AIN = –36 dBFS, IMD = 95 dBFS
Figure 24. FFT for Two-Tone Input Signal (–36 dBFS)
ADC31RF80 D024_SBAS860.gif
fIN1 = 2.09 MHz, fIN2 = 2.1 GHz, AIN = –36 dBFS,
IMD = 92 dBFS
Figure 26. FFT for Two-Tone Input Signal

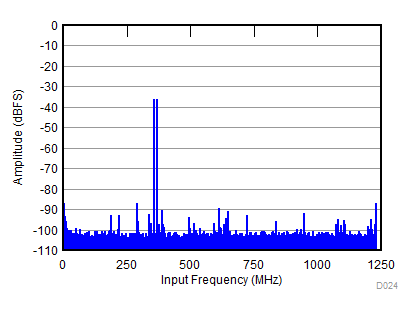

(–36 dBFS, fS = 2457.6 MSPS)

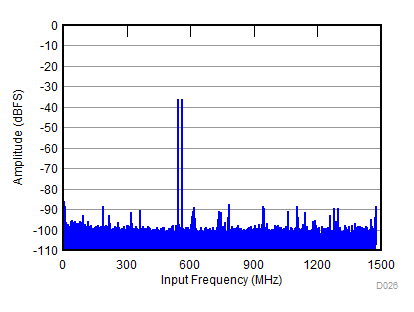

ADC31RF80 D026_SBAS860.gif
fIN1 = 3.49 GHz, fIN2 = 3.51 GHz, IMD = 95 dBFS,
AIN = –36 dBFS with 2-dB gain
Figure 28. FFT for Two-Tone Input Signal (–36 dBFS)
ADC31RF80 D028_SBAS860.gif
fIN1 = 2.59 GHz, fIN2 = 2.6 GHz, AIN = –36 dBFS,
IMD = 92 dBFS
Figure 30. FFT for Two-Tone Input Signal
(–36 dBFS, fS = 2457.6 MSPS)
ADC31RF80 D030_SBAS860.gif
fIN1 = 1.77 GHz, fIN2 = 1.79 GHz

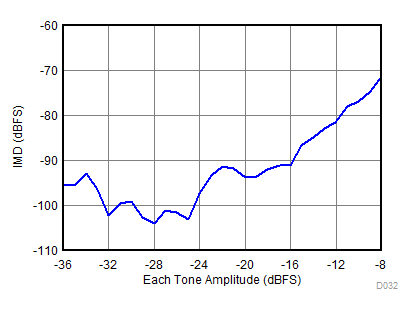

Figure 32. Intermodulation Distortion vs Input Amplitude (1770 MHz and 1790 MHz, fS = 2457.6 MSPS)
ADC31RF80 D032_SBAS860.gif
fIN1 = 2.09 GHz, fIN2 = 2.1 GHz
Figure 34. Intermodulation Distortion vs Input Amplitude (2090 MHz and 2100 MHz, fS = 2457.6 MSPS)
ADC31RF80 D034_SBAS860.gif
fIN1 = 2.59GHz, fIN2 = 2.61 GHz
Figure 36. Intermodulation Distortion vs Input Amplitude (2590 MHz and 2600 MHz, fS = 2457.6 MSPS)
ADC31RF80 D036_SBAS860.gif
Figure 38. Spurious-Free Dynamic Range vs
Input Frequency (fS = 2457.6 MSPS)
ADC31RF80 D038_SBAS860.gif
Figure 40. IL Spur vs Input Frequency (fS = 2457.6 MSPS)
ADC31RF80 D040_SBAS860.gif
Figure 42. Signal-to-Noise Ratio vs Input Frequency
(fS = 2457.6 MSPS)
ADC31RF80 D042_SBAS860.gif
fIN = 1.85 GHz, AIN = –2 dBFS

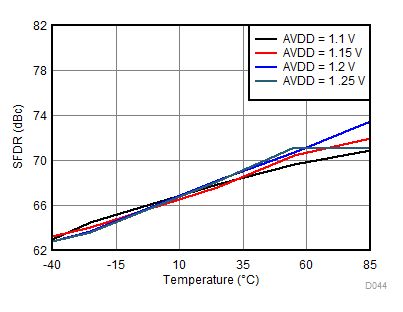

Figure 44. Spurious-Free Dynamic Range vs
AVDD Supply and Temperature
ADC31RF80 D044_SBAS860.gif
fIN = 3.5GHz, AIN = –3 dBFS with 2-dB digital gain
Figure 46. Spurious-Free Dynamic Range vs
AVDD Supply and Temperature
ADC31RF80 D046_SBAS860.gif
fIN = 1.85 GHz, AIN = –2 dBFS
Figure 48. Spurious-Free Dynamic Range vs
DVDD Supply and Temperature
ADC31RF80 D048_SBAS860.gif
fIN = 3.5 GHz, AIN = –3 dBFS with 2-dB digital gain

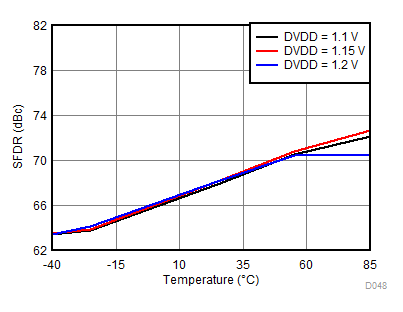

Figure 50. Spurious-Free Dynamic Range vs
DVDD Supply and Temperature
ADC31RF80 D050_SBAS860.gif
fIN = 1.85 GHz, AIN = –2 dBFS

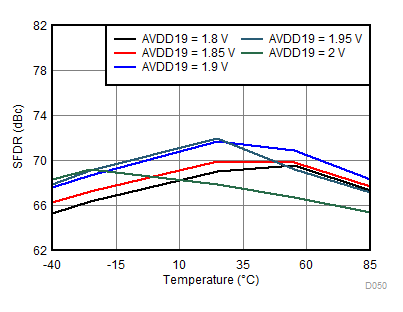

Figure 52. Spurious-Free Dynamic Range vs
AVDD19 Supply and Temperature
ADC31RF80 D052_SBAS860.gif
fIN = 3.5 GHz, AIN = –3 dBFS with 2-dB digital gain

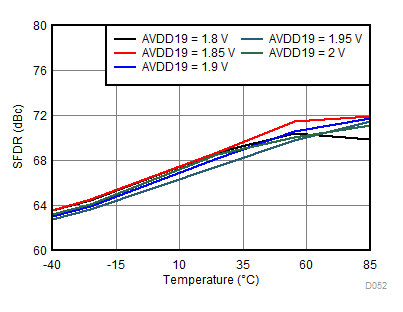

Figure 54. Spurious-Free Dynamic Range vs
AVDD19 Supply and Temperature
ADC31RF80 D054_SBAS860.gif
fIN = 1.78 GHz, AOUT = –2 dBFS
Figure 56. HD2 Histogram at AVDD19 = 1.9 V
ADC31RF80 D056_SBAS860.gif
fIN = 1.78 GHz
Figure 58. Performance vs Amplitude
ADC31RF80 D058_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS

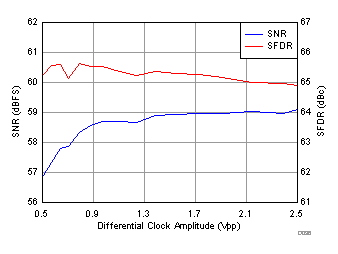

Figure 60. Performance vs Clock Amplitude
ADC31RF80 D060_SBAS860.gif
fIN = 1.78 GHz
Figure 62. Performance vs Clock Duty Cycle
ADC31RF80 D062_SBAS860.gif
fIN = 1.8 GHz, AIN = –2 dBFS, PSRR = 37 dB,
fPSRR = 3 MHz, APSRR = 50 mVPP, AVDD = 1.9 V
Figure 64. Power-Supply Rejection Ratio FFT for
Test Signal on AVDD Supply
ADC31RF80 D064_SBAS860.gif
fCMRR = 10 MHz, APSRR = 50 mVPP, CMRR = 32 dB
Figure 66. Common-Mode Rejection Ratio FFT
ADC31RF80 D066_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 60.6 dBFS, SFDR (includes IL) = 75 dBc
Figure 68. FFT in 4x Decimation (Complex Output)
ADC31RF80 D068_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 62.6 dBFS, SFDR (includes IL) = 86 dBc
Figure 70. FFT in 8x Decimation (Complex Output)
ADC31RF80 D070_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 63.3 dBFS, SFDR (includes IL) = 81 dBc
Figure 72. FFT in 10x Decimation (Complex Output)
ADC31RF80 D072_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 63.9 dBFS, SFDR (includes IL) = 83 dBc
Figure 74. FFT in 16x Decimation (Complex Output)
ADC31RF80 D074_SBAS860.gif
fIN = 1.78 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 64.4 dBFS, SFDR (includes IL) = 84 dBc
Figure 76. FFT in 20x Decimation (Complex Output)
ADC31RF80 D076_SBAS860.gif
fIN = 1.8 GHz, AIN = –2 dBFS, fS = 2949.12 MSPS,
SNR = 64.5 dBFS, SFDR (includes IL) = 79 dBc
Figure 78. FFT in 32x Decimation (Complex Output)
