6.12 Typical Performance Characteristics, Dynamic Performance

Unless otherwise specified, the following specifications apply: AGND = DGND = DRGND = 0 V, VA = VD = 3.3 V, VDR = 1.8 V, Internal VREF = 1 V, fCLK = 155 MHz, VCM = VRM, CL = 5 pF/pin, Differential Analog Input, Single-Ended Clock Mode, Offset Binary Format. Typical values are for TA = 25°C
ADC14155QML-SP 20210721.png
Figure 5. SFDR vs fIN
ADC14155QML-SP 20210723.png
Figure 7. SNR, SINAD, SFDR vs fIN
ADC14155QML-SP 20210725.png
Figure 9. SNR, SINAD, SFDR vs VA
ADC14155QML-SP 20210727.png
Figure 11. SNR, SINAD, SFDR vs VDR
ADC14155QML-SP 20210729.png
Figure 13. SNR, SINAD, SFDR vs VREF
ADC14155QML-SP 20210731.png
Figure 15. SNR, SINAD, SFDR vs Temperature
ADC14155QML-SP 20210733.png
Figure 17. Spectral Response at 70-MHz Input
ADC14155QML-SP 20210735.png
Figure 19. Spectral Response at 238-MHz Input
ADC14155QML-SP 20210722.png
Figure 6. SNR vs fIN
ADC14155QML-SP 20210724.png
Figure 8. Distortion vs fIN
ADC14155QML-SP 20210726.png
Figure 10. Distortion vs VA
ADC14155QML-SP 20210728.png

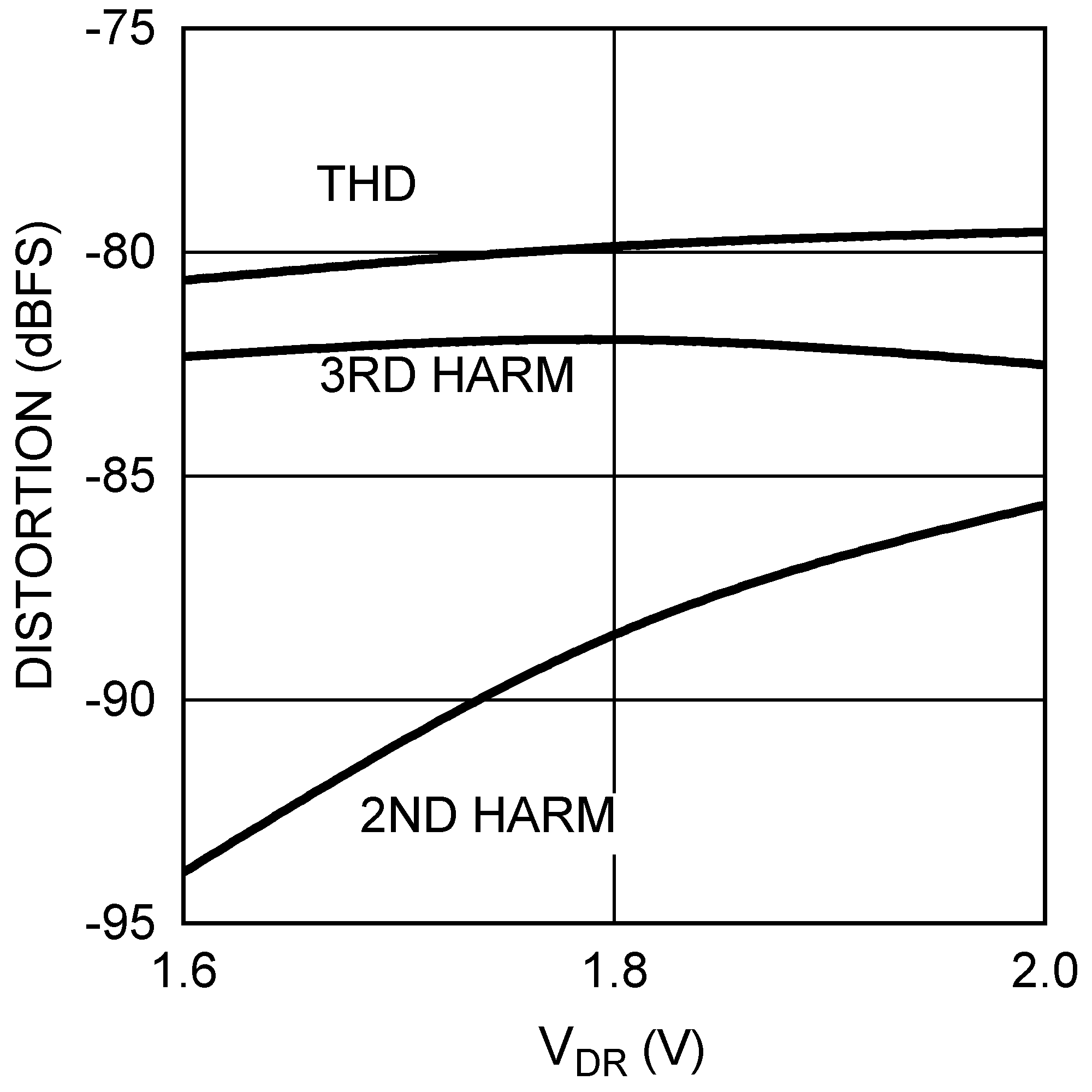

Figure 12. Distortion vs VDR
ADC14155QML-SP 20210730.png
Figure 14. Distortion vs VREF
ADC14155QML-SP 20210732.png

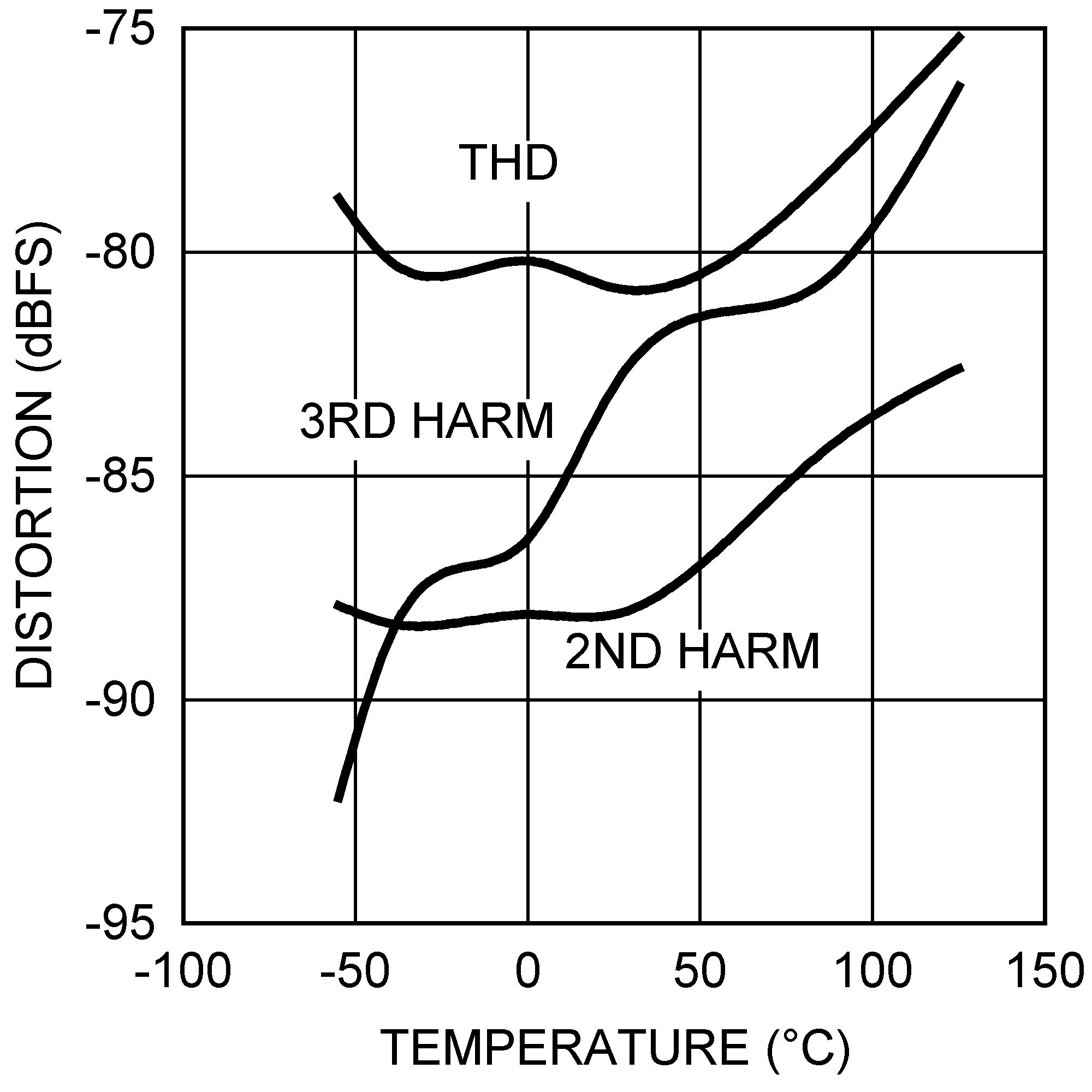

Figure 16. Distortion vs Temperature
ADC14155QML-SP 20210734.png
Figure 18. Spectral Response at 169-MHz Input
ADC14155QML-SP PowerVsSampleRate.gif

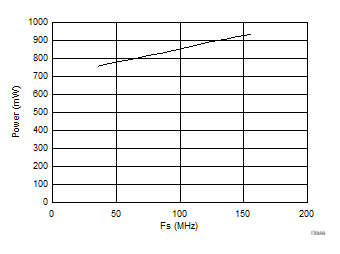

Figure 20. Power vs Sample Rate​
