6 Pin Configuration and Functions

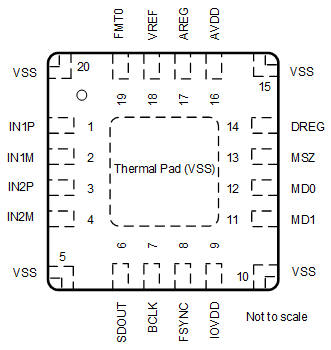

GUID-20201123-CA0I-3MLM-QVMP-RPPHM26WGP7J-low.gif Figure 6-1 RTW Package,24-Pin WQFN With Exposed Thermal Pad,Top View
Table 6-1 Pin Functions
PIN TYPE DESCRIPTION
NO. NAME
1 IN1P Analog input Analog input 1P pin.
2 IN1M Analog input Analog input 1M pin.
3 IN2P Analog input Analog input 2P pin.
4 IN2M Analog input Analog input 2M pin.
5 VSS Analog supply Short this pin directly to the board ground plane.
6 SDOUT Digital output Audio serial data interface bus output.
7 BCLK Digital I/O Audio serial data interface bus bit clock.
8 FSYNC Digital I/O Audio serial data interface bus frame synchronization signal.
9 IOVDD Digital supply Digital I/O power supply (1.8 V or 3.3 V, nominal).
10 VSS Analog supply Short this pin directly to the board ground plane.
11 MD1 Digital input Device configuration mode select 1 pin.
12 MD0 Digital input Device configuration mode select 0 pin.
13 MSZ Digital input Audio interface bus master or slave select pin.
14 DREG Digital supply Digital regulator output voltage for digital core supply (1.5 V, nominal).
15 VSS Analog supply Short this pin directly to the board ground plane.
16 AVDD Analog supply Analog power (3.3 V, nominal).
17 AREG Analog supply Analog on-chip regulator output voltage for analog supply (1.8 V, nominal).
18 VREF Analog Analog reference voltage filter output.
19 FMT0 Digital input Audio interface format select pin referred to AVDD supply.
20 VSS Analog supply Short this pin directly to the board ground plane.
Thermal Pad (VSS) Ground supply Thermal pad shorted to internal device ground. Short thermal pad directly to board ground plane.
