6.6 Typical Characteristics

at VDD = 5 V and TA = 25°C (unless otherwise noted)
DRV425-Q1 D001_SBOS704.gif
VDD = 5 V
Figure 1. Fluxgate Sensor Front-End Offset Histogram

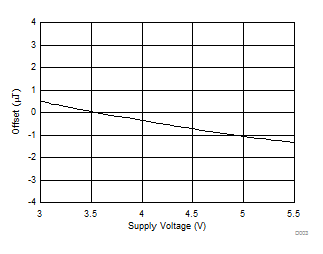

DRV425-Q1 D003_SBOS704.gif
Figure 3. Fluxgate Sensor Front-End Offset vs
Supply Voltage
DRV425-Q1 D005_SBOS704.gif
Figure 5. Fluxgate Sensor Front-End Offset Drift Histogram
DRV425-Q1 D008_SBOS729.gif
Figure 7. Fluxgate Sensor Front-End Gain vs
Supply Voltage
DRV425-Q1 D057_SBOS729.gif

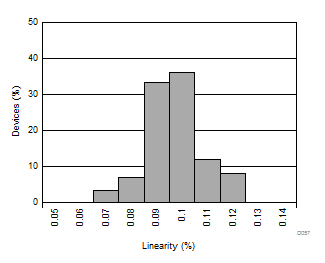

Figure 9. Fluxgate Sensor Front-End Linearity Histogram

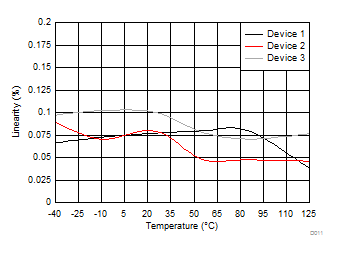

DRV425-Q1 D011_SBOS729.gif
Figure 11. Fluxgate Sensor Front-End Linearity vs Temperature
DRV425-Q1 D007_SBOS729.gif
VDD = 5 V
Figure 13. Fluxgate Sensor Saturation (ERROR Pin)
Trip Level Histogram
DRV425-Q1 D052_SBOS729.gif
Figure 15. Fluxgate Sensor Saturation (ERROR Pin) Trip Level vs Temperature
DRV425-Q1 D054_SBOS729.gif
Figure 17. Compensation Coil Resistance vs Temperature

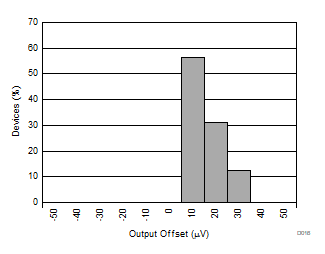

DRV425-Q1 D016_SBOS704.gif
VDD = 3.3 V
Figure 19. Shunt-Sense Amplifier Output Offset Histogram
DRV425-Q1 D017_SBOS704.gif

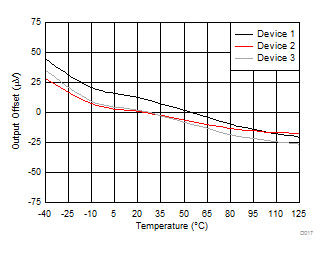

Figure 21. Shunt-Sense Amplifier Output Offset vs Temperature
DRV425-Q1 D020_SBOS704.gif
Figure 23. Shunt-Sense Amplifier CMRR vs
Input Signal Frequency
DRV425-Q1 D022_SBOS704.gif
Figure 25. Shunt-Sense Amplifier PSRR vs
Ripple Frequency

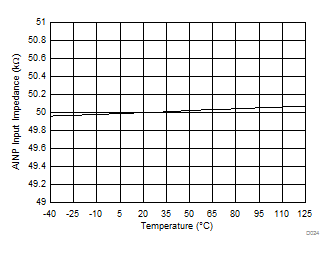

DRV425-Q1 D024_SBOS704.gif
Figure 27. Shunt-Sense Amplifier AINP Input Impedance
vs Temperature
DRV425-Q1 D026_SBOS704.gif

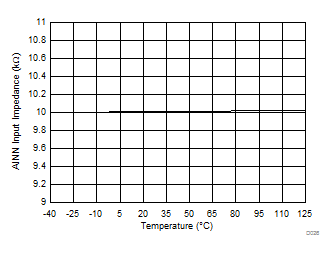

Figure 29. Shunt-Sense Amplifier AINN Input Impedance
vs Temperature
DRV425-Q1 D055_SBOS729.gif
Including IFG, VDD = 3.3 V
Figure 31. Shunt-Sense Amplifier Gain Error Histogram
DRV425-Q1 D029_SBOS704.gif

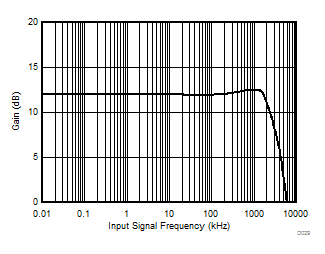

Figure 33. Shunt-Sense Amplifier Gain vs
Input Signal Frequency
DRV425-Q1 D031_SBOS729.gif

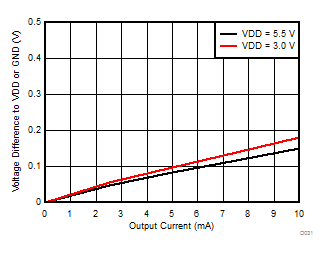

Figure 35. OR Pin Trip Level vs Output Current

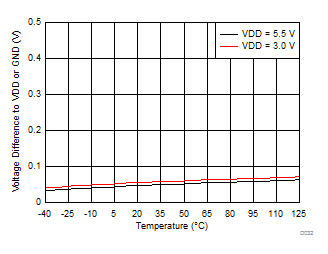

DRV425-Q1 D032_SBOS729.gif
Figure 37. OR Pin Trip Level vs Temperature

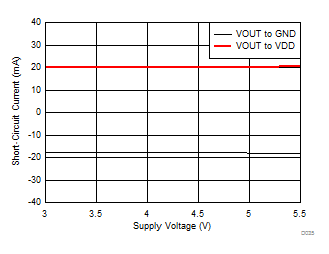

DRV425-Q1 D035_SBOS704.gif
Figure 39. Shunt-Sense Amplifier Output Short-Circuit Current vs Supply Voltage

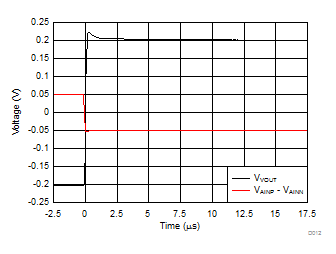

DRV425-Q1 D012_SBOS729.gif
Rising edge
Figure 41. Shunt-Sense Amplifier Small-Signal
Settling Time
DRV425-Q1 D050_SBOS729.gif
Rising edge
Figure 43. Shunt-Sense Amplifier Large-Signal
Settling Time
DRV425-Q1 D036_SBOS729.gif
VDD = 5 V
Figure 45. Shunt-Sense Amplifier Overload Recovery Response
DRV425-Q1 D038_SBOS704.gif
Figure 47. Shunt-Sense Amplifier Output Voltage Noise Density vs Noise Frequency
DRV425-Q1 D058_SBOS729.gif
VREFOUT = 1.65 V
Figure 49. Reference Voltage Histogram

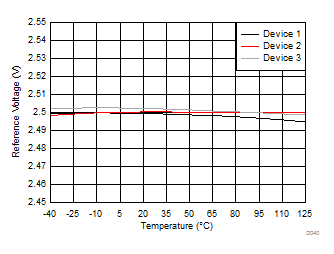

DRV425-Q1 D040_SBOS704.gif
Figure 51. Reference Voltage vs Temperature
DRV425-Q1 D041_SBOS704.gif

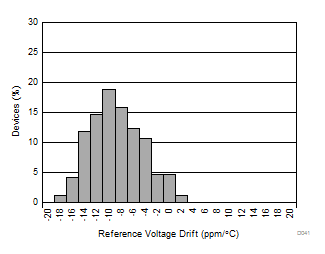

Figure 53. Reference Voltage Drift Histogram

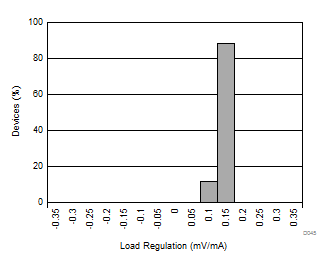

DRV425-Q1 D045_SBOS704.gif
Figure 55. Reference Voltage Load Regulation Histogram
DRV425-Q1 D061_SBOS729.gif
Figure 57. Quiescent Current vs Supply Voltage
DRV425-Q1 D014_SBOS729.gif
Figure 59. Supply Current vs Magnetic Field

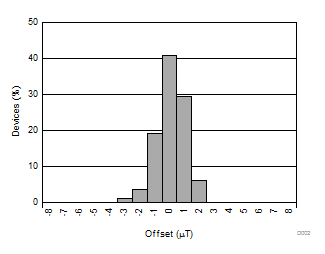

DRV425-Q1 D002_SBOS704.gif
VDD = 3.3 V
Figure 2. Fluxgate Sensor Front-End Offset Histogram

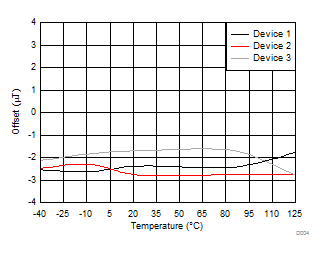

DRV425-Q1 D004_SBOS704.gif
Figure 4. Fluxgate Sensor Front-End Offset vs
Temperature
DRV425-Q1 D046_SBOS729.gif
Figure 6. Fluxgate Sensor Front-End Gain Histogram
DRV425-Q1 D009_SBOS729.gif

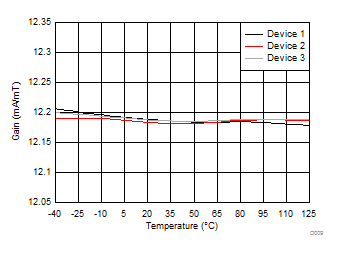

Figure 8. Fluxgate Sensor Front-End Gain vs Temperature
DRV425-Q1 D010_SBOS729.gif
Figure 10. Fluxgate Sensor Front-End Linearity vs
Supply Voltage
DRV425-Q1 D006_SBOS704.gif

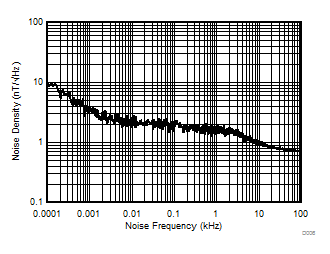

Figure 12. Fluxgate Sensor Front-End Noise Density vs Noise Frequency
DRV425-Q1 D013_SBOS729.gif
VDD = 3.3 V
Figure 14. Fluxgate Sensor Saturation (ERROR Pin)
Trip Level Histogram
DRV425-Q1 D053_SBOS729.gif
Figure 16. Compensation Coil Resistance Histogram
DRV425-Q1 D015_SBOS704.gif

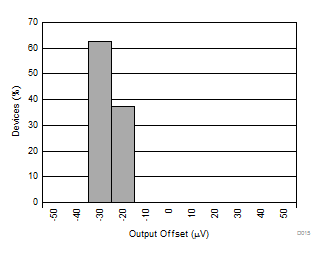

VDD = 5 V
Figure 18. Shunt-Sense Amplifier Output Offset Histogram
DRV425-Q1 D018_SBOS704.gif

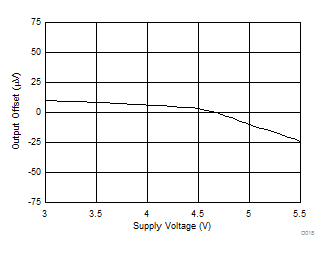

Figure 20. Shunt-Sense Amplifier Output Offset vs
Supply Voltage
DRV425-Q1 D019_SBOS704.gif

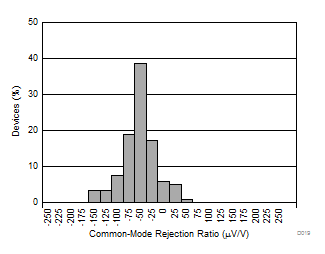

Figure 22. Shunt-Sense Amplifier CMRR Histogram
DRV425-Q1 D021_SBOS704.gif
Figure 24. Shunt-Sense Amplifier PSRR Histogram

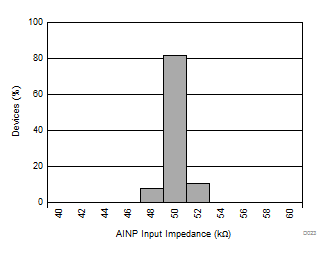

DRV425-Q1 D023_SBOS704.gif
Figure 26. Shunt-Sense Amplifier AINP Input Impedance Histogram
DRV425-Q1 D025_SBOS704.gif
Figure 28. Shunt-Sense Amplifier AINN Input Impedance Histogram
DRV425-Q1 D027_SBOS704.gif
Including IFG, VDD = 5 V
Figure 30. Shunt-Sense Amplifier Gain Error Histogram
DRV425-Q1 D028_SBOS704.gif

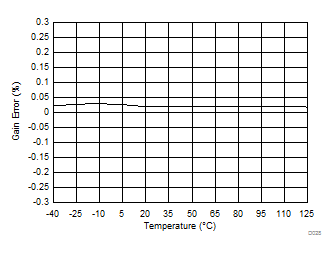

Figure 32. Shunt-Sense Amplifier Gain Error vs
Temperature
DRV425-Q1 D030_SBOS704.gif

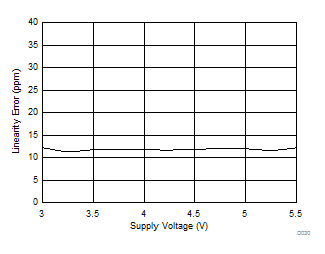

Figure 34. Shunt-Sense Amplifier Linearity Error vs
Supply Voltage
DRV425-Q1 D056_SBOS729.gif
Figure 36. OR Pin Trip Level vs Supply Voltage
DRV425-Q1 D033_SBOS704.gif
Figure 38. OR Pin Trip Delay vs Temperature

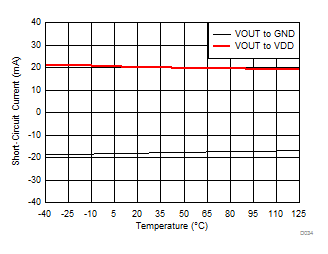

DRV425-Q1 D034_SBOS704.gif
Figure 40. Shunt-Sense Amplifier Output Short-Circuit Current vs Temperature
DRV425-Q1 D049_SBOS729.gif
Falling edge
Figure 42. Shunt-Sense Amplifier Small-Signal
Settling Time
DRV425-Q1 D051_SBOS729.gif
Falling edge
Figure 44. Shunt-Sense Amplifier Large-Signal
Settling Time
DRV425-Q1 D037_SBOS729.gif
VDD = 3.3 V

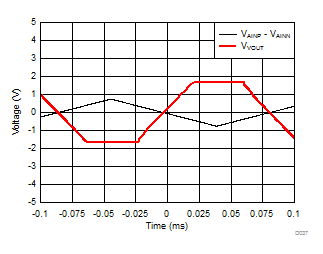

Figure 46. Shunt-Sense Amplifier Overload Recovery Response
DRV425-Q1 D039_SBOS729.gif
VREFOUT = 2.5 V

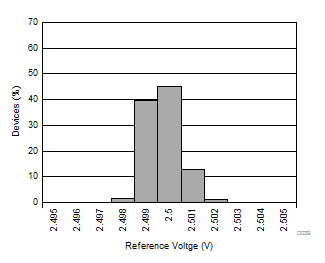

Figure 48. Reference Voltage Histogram
DRV425-Q1 D042_SBOS704.gif

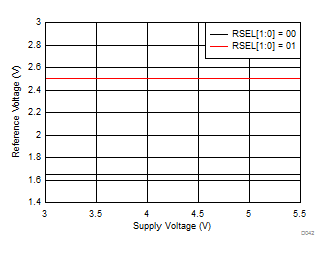

Figure 50. Reference Voltage vs Supply Voltage
DRV425-Q1 D043_SBOS704.gif

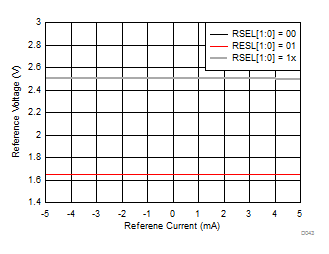

Figure 52. Reference Voltage vs Reference Output Current

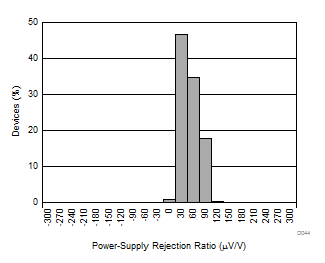

DRV425-Q1 D044_SBOS704.gif
Figure 54. Reference Voltage PSRR Histogram
DRV425-Q1 D060_SBOS729.gif

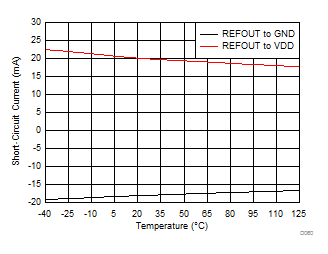

Figure 56. Reference Short-Circuit Current vs Temperature
DRV425-Q1 D048_SBOS729.gif
Figure 58. Quiescent Current vs Temperature

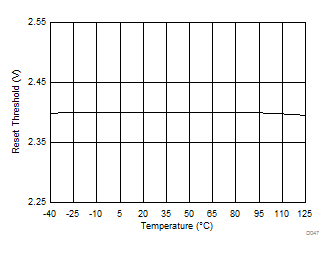

DRV425-Q1 D047_SBOS704.gif
Figure 60. Power-On Reset Threshold vs Temperature
