ZHCSJY5D June   2019  – June 2022 TLIN1021-Q1

PRODUCTION DATA

  1. 特性
  2. 应用
  3. 说明
  4. Revision History
  5. 说明(续)
  6. Pin Configuration and Functions
  7. Specifications
    1. 7.1 Absolute Maximum Ratings
    2. 7.2 ESD Ratings
    3. 7.3 Thermal Information
    4. 7.4 Recommended Operating Conditions
    5. 7.5 Power Supply Characteristics
    6. 7.6 Electrical Characteristics
    7. 7.7 AC Switching Characteristics
    8. 7.8 Typical Characteristics
  8. Parameter Measurement Information
  9. Detailed Description
    1. 9.1 Overview
    2. 9.2 Functional Block Diagram
    3. 9.3 Feature Description
      1. 9.3.1  LIN
        1. 9.3.1.1 LIN Transmitter Characteristics
        2. 9.3.1.2 LIN Receiver Characteristics
          1. 9.3.1.2.1 Termination
      2. 9.3.2  TXD
      3. 9.3.3  RXD
      4. 9.3.4  VSUP
      5. 9.3.5  GND
      6. 9.3.6  EN
      7. 9.3.7  WAKE
      8. 9.3.8  INH
      9. 9.3.9  Local Faults
      10. 9.3.10 TXD Dominant Time-Out (DTO)
      11. 9.3.11 Bus Stuck Dominant System Fault: False Wake-Up Lockout
      12. 9.3.12 Thermal Shutdown
      13. 9.3.13 Under Voltage on VSUP
      14. 9.3.14 Unpowered Device
    4. 9.4 Device Functional Modes
      1. 9.4.1 Normal Mode
      2. 9.4.2 Sleep Mode
      3. 9.4.3 Standby Mode
      4. 9.4.4 Wake-Up Events
        1. 9.4.4.1 Local Wake-Up (LWU) via WAKE Input Terminal
        2. 9.4.4.2 Wake-Up Request (RXD)
  10. 10Application and Implementation
    1. 10.1 Application Information
    2. 10.2 Typical Application
      1. 10.2.1 Design Requirements
      2. 10.2.2 Detailed Design Procedures
        1. 10.2.2.1 Normal Mode Application Note
        2. 10.2.2.2 TXD Dominant State Time-Out Application Note
      3. 10.2.3 Application Curves
    3. 10.3 Power Supply Recommendations
    4.     Layout
      1. 10.4.1 Layout Guidelines
      2. 10.4.2 Layout Example
  11. 11Device and Documentation Support
    1. 11.1 Documentation Support
      1. 11.1.1 Related Documentation
    2. 11.2 接收文档更新通知
    3. 11.3 支持资源
    4. 11.4 Trademarks
    5. 11.5 Electrostatic Discharge Caution
    6. 11.6 术语表
  12. 12Mechanical, Packaging, and Orderable Information

Parameter Measurement Information

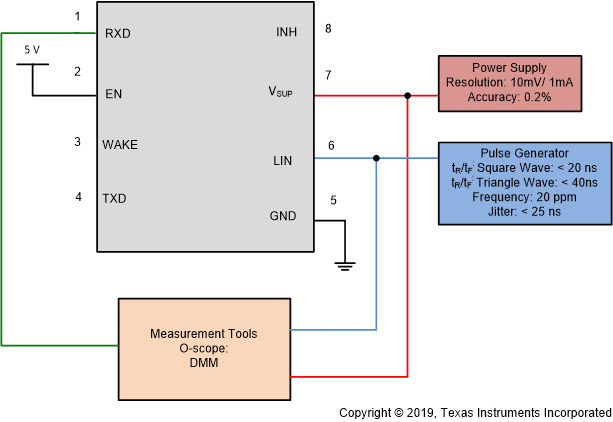

GUID-21EB6A27-F9DA-4C63-9E20-7D068D41A203-low.gif Figure 8-1 Test System: Operating Voltage Range with RX and TX Access: Parameters 9, 10

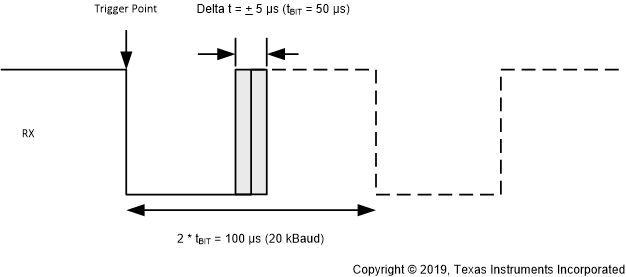

GUID-D3BC3235-3D23-4038-BE3F-0EA858DECFFB-low.gif Figure 8-2 RX Response: Operating Voltage Range

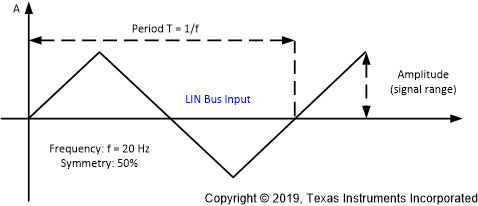

GUID-EF60E67C-4E66-4805-89E2-07500BBEEC1F-low.gif Figure 8-3 LIN Bus Input Signal
GUID-35F5659C-BB91-4089-A904-1D7695A849F6-low.gif Figure 8-4 LIN Receiver Test with RX access Param 17, 18, 19, 20
GUID-F3F46BAE-0E52-43FB-B621-8DB7C18B3B56-low.gif Figure 8-5 VSUP_NON_OP Param 11
GUID-557F2EBA-CBDE-4EFC-A63F-11ECB7AD9DBD-low.gif Figure 8-6 Test Circuit for IBUS_LIM at Dominant State (Driver on) Param 12
GUID-5CDD7BF2-F164-4D3D-B0AE-876B1BA702CF-low.gif Figure 8-7 Test Circuit for IBUS_PAS_dom; TXD = Recessive State VBUS = 0 V, Param 13
GUID-A69F0A60-F898-46DA-AD70-2E7DD464C598-low.gif Figure 8-8 Test Circuit for IBUS_PAS_rec Param 14

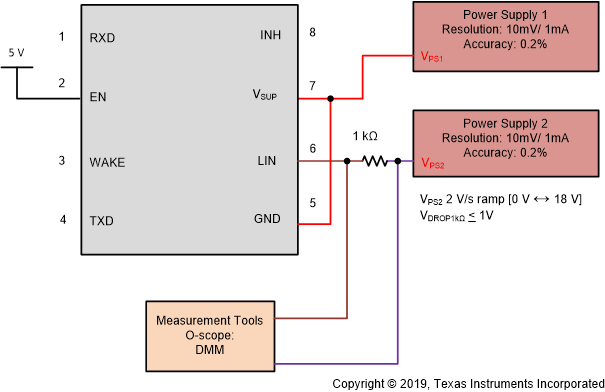

GUID-0D44F5F3-DC03-41EB-A627-3FE9F7AA94DB-low.gif Figure 8-9 Test Circuit for IBUS_NO_GND Loss of GND
GUID-36E48A5D-309D-4492-9C99-71322DC6C37B-low.gif Figure 8-10 Test Circuit for IBUS_NO_BAT Loss of Battery

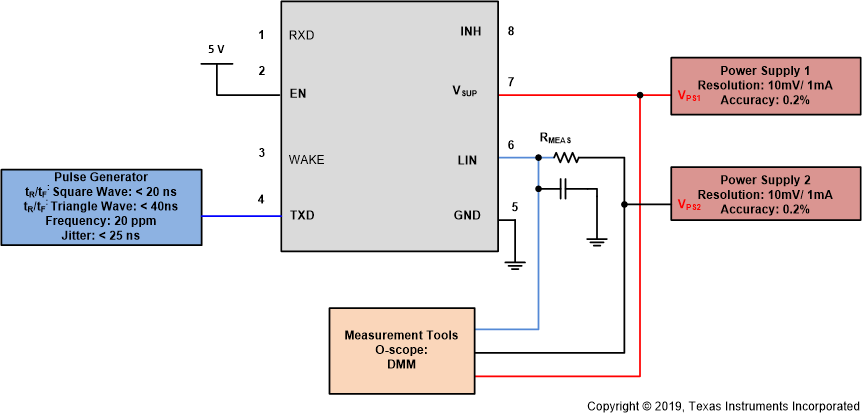

GUID-A4935E12-F38D-4523-9F9B-F927E696E456-low.gif Figure 8-11 Test Circuit Slope Control and Duty Cycle Param 27, 28, 29, 30
GUID-09929E1E-BD62-4B1C-A4CF-82DA24B8F4A0-low.gif Figure 8-12 Definition of Bus Timing Parameters
GUID-A4935E12-F38D-4523-9F9B-F927E696E456-low.gif Figure 8-13 Propagation Delay Test Circuit; Param 31, 32
GUID-DDD6753C-F1C0-4C0B-8E33-56936A6836C1-low.gif Figure 8-14 Propagation Delay
GUID-A1F7D086-627A-4F93-9AC9-2D87E55D1047-low.gif Figure 8-15 Mode Transitions

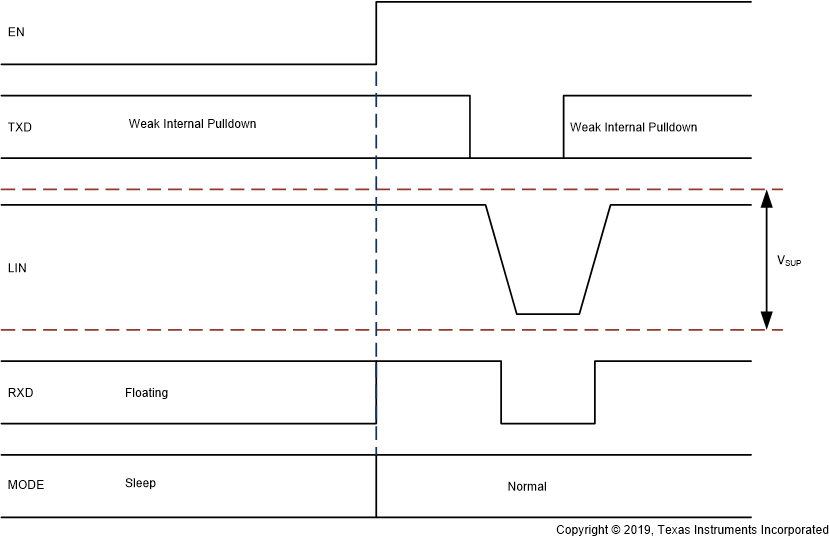

GUID-2A98CE5E-917E-4852-8350-E4132CCACE3A-low.gif Figure 8-16 Wake-up Through EN
GUID-1AA3AF2E-0871-4DF9-8EB9-99FEF72841BC-low.gif Figure 8-17 Wake-up through LIN
