Device Functional Modes

The TLIN1021-Q1 has three functional modes of operation: normal, sleep, and standby. The next sections describe these modes and how the device transitions between the different modes. Figure 9-4 graphically shows the relationship while Table 9-1 shows the state of pins.

Table 9-1 Operating Modes
MODEENTXDRXDINHLIN BUS
TERMINATION
TRANSMITTERCOMMENT
SleepLowWeak pull-downFloatingFloatingWeak current pull-upOff
StandbyLowweak pull-down if LIN bus wake-up; Strong pull-down if a local wake-up event (WAKE pin)LowHigh45 kΩOffWake-up event detected,
waiting on MCU to set EN
NormalHighHigh: recessive state
Low: dominant state
LIN Bus DataHigh45 kΩOnLIN transmission up to 20 kbps

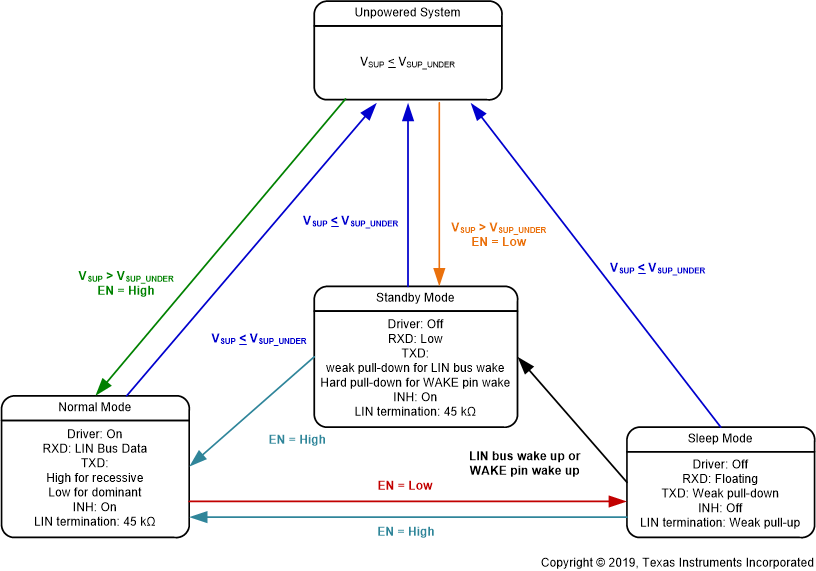

GUID-8D7153D2-F355-42A4-98E3-3ACF56C618ED-low.gifFigure 9-4 Operating State Diagram
