Output Data Word

The output data word, as shown in Table 2, consists of a conversion result of N bits, where N is the width of the output data word. The output data word is provided on data lines (SDO-xx) for each ADC.

Table 2. Output Data Word

DEVICE RESOLUTION OF DEVICE (R) WIDTH OF OUTPUT DATA WORD (N) CONTENT OF OUTPUT DATA WORD(1)(2) MSB OF CONVERSION RESULT WITH LEFT ALIGNMENT MSB OF CONVERSION RESULT WITH RIGHT ALIGNMENT
ADS9224R 16 16 16-bit conversion in 2's compliment format DN-1 (= D15) DN-1 (= D15)
ADS9234R 14 16 14-bit conversion in 2's compliment format DN-1 (= D13) DN-3 (= D13)
The device provides register data in the output data word during register read operation.
When a fixed pattern data is enabled, the device provides a fixed pattern in the output data word.

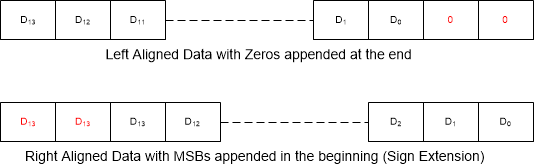

For ADS9234R devices with 14-bit resolution, the output data word can be left-aligned or right-aligned by configuring the DATA_RIGHT_ALIGNED bit. With left alignment, the device appends zeros in the end of the output data word. With right alignment, the device appends MSBs in the beginning of the output data word. Figure 46 shows the data alignment in the data output word.

ADS9224R ADS9234R output_data_alignment_sbas876.gifFigure 46. Data Alignment for ADS9234R Devices
