DATA SHEET

具有 3 个直流/直流转换器、3 个 LDO、I2C 接口和 DVS 的 TPS65023-Q1 电源管理 IC (PMIC)

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

1 特性

  • 符合汽车类应用的 要求
  • 具有符合 AEC-Q100 标准的下列结果:
    • 器件温度 1 级:–40°C 至 125°C 的环境工作温度范围
    • 器件 HBM ESD 分类等级 2
    • 器件 CDM ESD 分类等级 C4A(RHA 封装)或 C5(RSB 封装)
  • 用于处理器内核的高效 (90%) 1.5A 降压转换器 (VDCDC1)
  • 用于系统电压的高效 (95%) 1.2A 降压转换器 (VDCDC2)
  • 用于存储器电压的高效 (92%) 1A 降压转换器 (VDCDC3)
  • 用于支持实时时钟 (VRTC) 的 30mA LDO/开关
  • 2 × 200mA 通用低压降 LDO (LDO)
  • 用于处理器内核的动态电压管理
  • 可使用两个数字输入引脚进行 LDO 电压预选
  • 外部可调复位延迟时间
  • 电池备用功能
  • 用于电感转换器的单独使能引脚
  • 兼容 I2C 的串行接口
  • 85μA 静态电流
  • 低纹波脉冲频率调制 (PFM) 模式
  • 热关断保护

2 应用

  • 汽车仪表组
  • 汽车信息娱乐系统
  • 数字音频广播
  • 电源 DaVinci™数字信号处理器 (DSP) 系列解决方案

3 说明

TPS65023-Q1 器件是一款集成式电源管理集成电路 (IC),适用于 由锂离子或锂聚合物电池供电的 应用(此类应用需要使用多条电源轨)。TPS65023-Q1 器件具有三个高效的降压转换器,可在基于处理器的系统内提供内核电压、外设、输入和输出 (I/O) 以及存储器电源轨。内核转换器可通过串行接口实现动态电压变化,从而使系统实现动态节能。这三个降压转换器会在轻负载时进入低功耗模式,从而在可能的最宽负载电流范围内实现最高效率。

器件信息(1)

器件型号 封装 封装尺寸(标称值)
TPS65023-Q1 VQFN (40) 6.00mm × 6.00mm
WQFN (40) 5.00mm × 5.00mm
  1. 要了解所有可用封装,请见产品说明书末尾的可订购产品附录。

Device Images

简化原理图

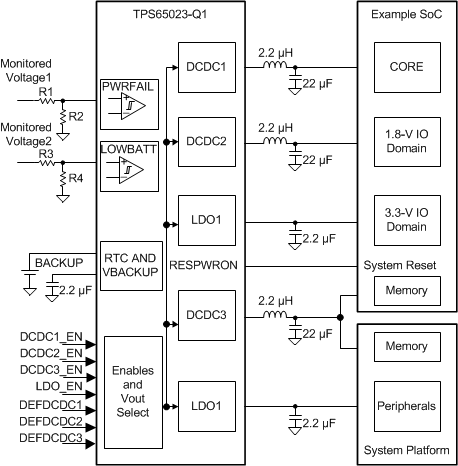

TPS65023-Q1 Keygraphic.gif

4 修订历史记录

Changes from E Revision (March 2016) to F Revision

  • Changed 产品说明书的标题Go
  • Changed all references of PowerPAD to thermal padGo
  • Changed the units of the current and peak current parameters from V to mA in the Absolute Maximum Ratings tableGo
  • Added 接收文档更新通知 部分Go

Changes from D Revision (September 2011) to E Revision

  • Added 器件信息 表、目录、修订历史记录 部分、引脚配置和功能 部分、规格 部分、ESD 额定值 表、详细 说明部分,应用和实施部分,电源相关建议部分,布局部分,器件和文档支持部分以及机械、封装和可订购信息部分Go
  • Changed maximum junction temperature from 125°C to 150°CGo

5 说明 (续)

TPS65023-Q1 器件还集成了两个可通过外部输入引脚启用的通用 200mA LDO 稳压器。每个 LDO 可在 1.5V 至 6.5V 输入电压范围内正常运行,这使得它们可以由其中一个降压转换器供电,也可以由主电池直接供电。用户可使用 DEFLDO1 和 DEFLDO2 引脚通过数字方式将这两个 LDO 的默认输出电压设置为四个不同的电压组合。串行电压可用于动态电压调节和屏蔽中断,或用于停用、启用和设置 LDO 输出电压。该接口符合快速模式或标准模式 I2C 规格,可实现 400kHz 的传输频率。TPS65023-Q1 器件在自然通风环境下的额定运行温度范围为 –40°C 至 125°C。

6 Pin Configuration and Functions

RHA and RSB Packages
40-Pin VQFN and WQFN
Top View

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
SWITCHING REGULATOR
AGND1 40 — Analog ground. All analog ground pins are connected internally on the chip
AGND2 17 — Analog ground. All analog ground pins are connected internally on the chip
DCDC1_EN 25 I VDCDC1 enable pin. A logic high enables the regulator, a logic low disables the regulator
DCDC2_EN 24 I VDCDC2 enable pin. A logic high enables the regulator, a logic low disables the regulator
DCDC3_EN 23 I VDCDC3 enable pin. A logic high enables the regulator, a logic low disables the regulator
DEFDCDC1 10 I Input for signal indicating default VDCDC1 voltage, 0 = 1.2 V, 1 = 1.6 V. DEFDCDC1 can also be connected to a resistor divider between VDCDC1 and GND, if the output voltage of the DCDC1 converter is set in a range from 0.6 V to VINDCDC1 V.
DEFDCDC2 32 I Input for signal indicating default VDCDC2 voltage, 0 = 1.8 V, 1 = 3.3 V. DEFDCDC2 can also be connected to a resistor divider between VDCDC2 and GND, if the output voltage of the DCDC2 converter is set in a range from 0.6 V to VINDCDC2 V.
DEFDCDC3 1 I Input for signal indicating default VDCDC3 voltage, 0 = 1.8 V, 1 = 3.3 V. DEFDCDC3 can also be connected to a resistor divider between VDCDC3 and GND, if the output voltage of the DCDC3 converter is set in a range from 0.6 V to VINDCDC3 V.
L1 7 — Switch pin of VDCDC1 converter. The VDCDC1 inductor is connected here.
L2 35 — Switch pin of VDCDC2 converter. The VDCDC2 inductor is connected here
L3 4 — Switch pin of VDCDC3 converter. The VDCDC3 inductor is connected here
PGND1 8 — Power ground for VDCDC1 converter
PGND2 34 — Power ground for VDCDC2 converter
PGND3 3 — Power ground for VDCDC3 converter
VCC 37 I Power supply for digital and analog circuitry of VDCDC1, VDCDC2, and VDCDC3 DC-DC converters. VCC must be connected to the same voltage supply as VINDCDC3, VINDCDC1, and VINDCDC2. VCC also supplies serial interface block.
VDCDC1 9 I VDCDC1 feedback voltage sense input. Connect directly to VDCDC1
VDCDC2 33 I VDCDC2 feedback voltage sense input. Connect directly to VDCDC2
VDCDC3 2 I VDCDC3 feedback voltage sense input. Connect directly to VDCDC3
VINDCDC1 6 I Input for VDCDC1 step-down converter. VINDCDC1 must be connected to the same voltage supply as VINDCDC2, VINDCDC3, and VCC
VINDCDC2 36 I Input for VDCDC2 step-down converter. VINDCDC2 must be connected to the same voltage supply as VINDCDC1, VINDCDC3, and VCC
VINDCDC3 5 I Input for VDCDC3 step-down converter. VINDCDC3 must be connected to the same voltage supply as VINDCDC1, VINDCDC2, and VCC
Thermal pad — — Connect the thermal pad to analog ground
LDO REGULATOR
DEFLD01 12 I Digital input. DEFLD01 sets the default output voltage of LDO1 and LDO2
DEFLD02 13 I Digital input. DEFLD02 sets the default output voltage of LDO1 and LDO2
LDO_EN 22 I Enable input for LDO1 and LDO2. A logic high enables the LDOs, a logic low disables the LDOs
VBACKUP 15 I Connect the backup battery to this input pin
VINLDO 19 I Input for LDO1 and LDO2
VLDO1 20 O Output of LDO1
VLDO2 18 O Output of LDO2
VRTC 16 O Output of the LDO/switch for the real time clock
VSYSIN 14 I Input of system voltage for VRTC switch
CONTROL AND I2C
HOT_RESET 11 I Push-button input that reboots or wakes up the processor through RESPWRON output pin
INT 28 O Open drain output
LOW_BAT 21 O Open-drain output of LOW_BAT comparator
LOWBAT_SNS 39 I Input for the comparator driving the LOW_BAT output
PWRFAIL 31 O Open-drain output. Active low when PWRFAIL comparator indicates low VBAT condition
PWRFAIL_SNS 38 I Input for the comparator driving the PWRFAIL output
RESPWRON 27 O Open-drain system reset output
SCLK 30 I Serial interface clock line
SDAT 29 I/O Serial interface data/address
TRESPWRON 26 I Connect the timing capacitor to TRESPWRON to set the reset delay time: 1 nF → 100 ms.
