Table 5-9 SPI Master Mode Input Timing Requirements (CLOCK PHASE = 0, SPICLK = output,
SPISIMO = output, and SPISOMI = input)(1)

NO. MIN TYP MAX UNIT
8(2) tsu(SOMI-SPCL)M Setup time, SPISOMI before SPICLK low
(clock polarity = 0)		 5 ns
tsu(SOMI-SPCH)M Setup time, SPISOMI before SPICLK high
(clock polarity = 1)		 5
9(2) th(SPCL-SOMI)M Hold time, SPISOMI data valid after SPICLK low
(clock polarity = 0)		 3 ns
th(SPCH-SOMI)M Hold time, SPISOMI data valid after SPICLK high
(clock polarity = 1)		 3
(1) The MASTER bit (SPIGCR1.0) is set and the CLOCK PHASE bit (SPIFMTx.16) is cleared.
(2) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPIFMTx.17).

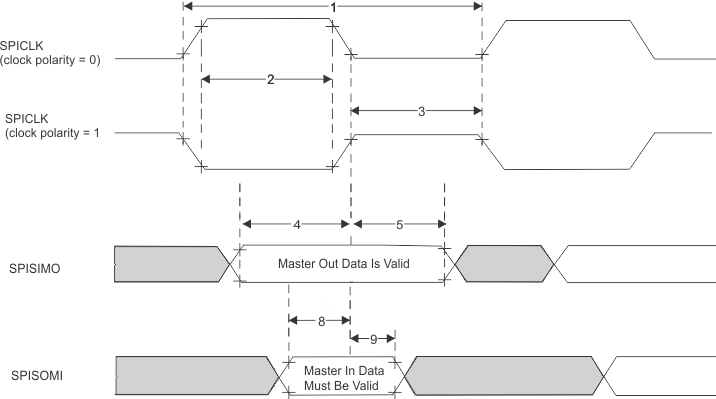

IWR1642 SPI_master_mode_external_timing_phase0.gifFigure 5-4 SPI Master Mode External Timing (CLOCK PHASE = 0)
IWR1642 SPI_master_mode_chip_select_phase0.gifFigure 5-5 SPI Master Mode Chip Select Timing (CLOCK PHASE = 0)
