Application Curves

Unless otherwise specified the following conditions apply:
LM76002 LM76003 D011-LM76003-eff-3v3-500k-a-snvsak0.gif
VOUT = 3.3 V fSW = 500 kHz Auto Mode
Figure 23. LM76003 Efficiency
LM76002 LM76003 D014-LM76003-eff-5v0-500k-a-snvsak0.gif
VOUT = 5 V fSW = 500 kHz Auto Mode
Figure 25. LM76003 Efficiency
LM76002 LM76003 D016-LM76003-eff-5v0-1000k-a-snvsak0.gif
VOUT = 5 V fSW = 1000 kHz Auto Mode
Figure 27. LM76003 Efficiency
LM76002 LM76003 D018-LM76003-eff-5v0-2200k-a-snvsak0.gif
VOUT = 5 V fSW = 2200 kHz Auto Mode
Figure 29. LM76003 Efficiency
LM76002 LM76003 D020-LM76003-eff-12v0-500k-a-snvsak0.gif
VOUT = 12 V fSW = 500 kHz Auto Mode
Figure 31. LM76003 Efficiency
LM76002 LM76003 D022-LM76003-eff-24v0-300k-a-snvsak0.gif
VOUT = 24 V fSW = 300 kHz Auto Mode
Figure 33. LM76003 Efficiency
LM76002 LM76003 D024-LM76002-eff-5v0-500k-a-snvsak0.gif
VOUT = 5 V fSW = 500 kHz Auto Mode
Figure 35. LM76002 Efficiency
LM76002 LM76003 D012-LM76003-load-line-reg-3v3-500k-a-snvsak0.gif
VOUT = 3.3 V fSW = 500 kHz Auto Mode
Figure 37. LM76003 Load and Line Regulation
LM76002 LM76003 D015-LM76003-load-line-reg-5v0-500k-a-snvsak0.gif
VOUT = 5 V fSW = 500 kHz Auto Mode
Figure 39. LM76003 Load and Line Regulation
LM76002 LM76003 D017-LM76003-load-line-reg-5v0-1000k-a-snvsak0.gif
VOUT = 5 V fSW = 1000 kHz Auto Mode
Figure 41. LM76003 Load and Line Regulation
LM76002 LM76003 D019-LM76003-load-line-reg-5v0-2200k-a-snvsak0.gif
VOUT = 5 V fSW = 2200 kHz Auto Mode
Figure 43. LM76003 Load and Line Regulation
LM76002 LM76003 D021-LM76003-load-line-reg-12v0-500k-a-snvsak0.gif
VOUT = 12 V fSW = 500 kHz Auto Mode
Figure 45. LM76003 Load and Line Regulation
LM76002 LM76003 D023-LM76003-load-line-reg-24v0-300k-a-snvsak0.gif
VOUT = 24 V fSW = 300 kHz Auto Mode
Figure 47. LM76003 Load and Line Regulation
LM76002 LM76003 D025-LM76002-load-line-reg-5v0-500k-a-snvsak0.gif
VOUT = 5 V fSW = 500 kHz Auto Mode
Figure 49. LM76002 Load and Line Regulation
LM76002 LM76003 D026-LM76003-dropout-3v3-500k-snvsak0.gif
VOUT = 3.3 V fSW = 500 kHz Auto Mode
Figure 51. LM76003 Dropout Curve
LM76002 LM76003 D028-LM76003-dropout-5v0-1000k-snvsak0.gif
VOUT = 5 V fSW = 1000 kHz Auto Mode
Figure 53. LM76003 Dropout Curve
LM76002 LM76003 D030-LM76002-dropout-5v0-500k-snvsak0.gif
VOUT = 5 V fSW = 500 kHz Auto Mode
Figure 55. LM76002 Dropout Curve
LM76002 LM76003 D032-LM76003-dropout-24v0-300k-snvsak0.gif
VOUT = 24 V fSW = 300 kHz Auto Mode
Figure 57. LM76003 Dropout Curve
LM76002 LM76003 Switching_waveform_5v-500k_no_load_FPWM_mode.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
No Load FPWM Mode
Figure 59. LM76003 Switching Waveform and Output Ripple

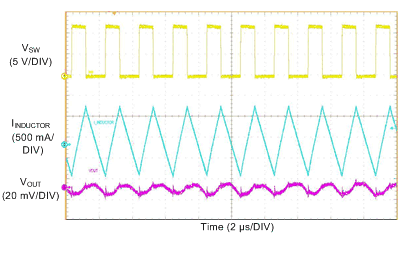

LM76002 LM76003 Switching_waveform_5v_500k_100mA_load_FPWM_mode.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
100-mA Load FPWM Mode
Figure 61. LM76003 Switching Waveform and Output Ripple
LM76002 LM76003 Startup_vin12v_3V3_500k_no_load_fpwm.gif
VIN = 12 V VOUT = 3.3 V fSW = 500 kHz
No Load FPWM Mode
Figure 63. LM76003 Start-up Waveform
LM76002 LM76003 Startup_vin12v_5V_500k_no_load_fpwm.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
No Load FPWM Mode
Figure 65. LM76003 Start-up Waveform
LM76002 LM76003 Startup_vin12v_5V_500k_3a5_load_auto.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
3.5-A Load
Figure 67. Start-up Waveform
LM76002 LM76003 Startup_LM76002_5V_500k_2A5_load_fpwm.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
2.5-A Load
Figure 69. LM76002 Start-up Waveform
LM76002 LM76003 Startup-Prebiased_LM76002_5V-500k_no-load_fpwm.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
No Load FPWM Mode
Figure 71. LM76002 Start-up With Pre-Biased Output
LM76002 LM76003 LoadTransient_3V3-500k_10ma-to-3A5-to-10mA_Auto.gif
VIN = 12 V VOUT = 3.3 V fSW = 500 kHz
10 mA to 3.5 A to 10 mA Auto Mode
Figure 73. LM76003 Load Transient
LM76002 LM76003 LoadTransient_5V-500k_10ma-to-3A5-to-10mA_Auto.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
10 mA to 3.5 A to 10 mA Auto Mode
Figure 75. LM76003 Load Transient
LM76002 LM76003 LoadTransient_5V-1M0_10ma-to-3A5-to-10mA_Auto.gif
VIN = 12 V VOUT = 5 V fSW = 1000 kHz
10 mA to 3.5 A to 10 mA Auto Mode
Figure 77. LM76003 Load Transient
LM76002 LM76003 LoadTransient_5V-2M2_10ma-to-3A5-to-10mA_Auto.gif
VIN = 12 V VOUT = 5 V fSW = 2200 kHz
10 mA to 3.5 A to 10 mA Auto Mode
Figure 79. LM76003 Load Transient
LM76002 LM76003 LoadTransient_12V-500k_10ma-to-3A5-to-10mA_Auto.gif
VIN = 24 V VOUT = 12 V fSW = 500 kHz
10 mA to 3.5 A to 10 mA Auto Mode
Figure 81. LM76003 Load Transient
LM76002 LM76003 Load-Transient_LM76002_5V-500k_10mA-to-2A5-to-10ma_auto.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
10 mA to 2.5 A to 10 mA Auto Mode
Figure 83. LM76002 Load Transient
LM76002 LM76003 D011-LM76003-eff-3v3-500k-f-snvsak0.gif
VOUT = 3.3 V fSW = 500 kHz FPWM Mode
Figure 24. LM76003 Efficiency
LM76002 LM76003 D014-LM76003-eff-5v0-500k-f-snvsak0.gif
VOUT = 5 V fSW = 500 kHz FPWM Mode
Figure 26. LM76003 Efficiency
LM76002 LM76003 D016-LM76003-eff-5v0-1000k-f-snvsak0.gif
VOUT = 5 V fSW = 1000 kHz FPWM Mode
Figure 28. LM76003 Efficiency
LM76002 LM76003 D018-LM76003-eff-5v0-2200k-f-snvsak0.gif
VOUT = 5 V fSW = 2200 kHz FPWM Mode
Figure 30. LM76003 Efficiency
LM76002 LM76003 D020-LM76003-eff-12v0-500k-f-snvsak0.gif
VOUT = 12 V fSW = 500 kHz FPWM Mode
Figure 32. LM76003 Efficiency
LM76002 LM76003 D022-LM76003-eff-24v0-300k-f-snvsak0.gif
VOUT = 24 V fSW = 300 kHz FPWM Mode
Figure 34. LM76003 Efficiency
LM76002 LM76003 D024-LM76002-eff-5v0-500k-b-snvsak0.gif
VOUT = 5 V fSW = 500 kHz FPWM Mode
Figure 36. LM76002 Efficiency
LM76002 LM76003 D012-LM76003-load-line-reg-3v3-500k-f-snvsak0.gif
VOUT = 3.3 V fSW = 500 kHz FPWM Mode
Figure 38. LM76003 Load and Line Regulation
LM76002 LM76003 D015-LM76003-load-line-reg-5v0-500k-f-snvsak0.gif
VOUT = 5 V fSW = 500 kHz FPWM Mode
Figure 40. LM76003 Load and Line Regulation
LM76002 LM76003 D017-LM76003-load-line-reg-5v0-1000k-F-snvsak0.gif
VOUT = 5 V fSW = 1000 kHz FPWM Mode
Figure 42. LM76003 Load and Line Regulation
LM76002 LM76003 D019-LM76003-load-line-reg-5v0-2200k-f-snvsak0.gif
VOUT = 5 V fSW = 2200 kHz FPWM Mode
Figure 44. LM76003 Load and Line Regulation
LM76002 LM76003 D021-LM76003-load-line-reg-12v0-500k-f-snvsak0.gif
VOUT = 12 V fSW = 500 kHz FPWM Mode
Figure 46. LM76003 Load and Line Regulation
LM76002 LM76003 D023-LM76003-load-line-reg-24v0-300k-f-snvsak0.gif
VOUT = 24 V fSW = 300 kHz FPWM Mode
Figure 48. LM76003 Load and Line Regulation
LM76002 LM76003 D025-LM76002-load-line-reg-5v0-500k-f-snvsak0.gif
VOUT = 5 V fSW = 500 kHz FPWM Mode
Figure 50. LM76002 Load and Line Regulation
LM76002 LM76003 D027-LM76003-dropout-5v0-500k-snvsak0.gif
VOUT = 5 V fSW = 500 kHz Auto Mode
Figure 52. LM76003 Dropout Curve
LM76002 LM76003 D029-LM76003-dropout-5v0-2200k-snvsak0.gif
VOUT = 5 V fSW = 2200 kHz Auto Mode
Figure 54. LM76003 Dropout Curve
LM76002 LM76003 D031-LM76003-dropout-12v0-500k-snvsak0.gif
VOUT = 12 V fSW = 500 kHz Auto Mode
Figure 56. LM76003 Dropout Curve

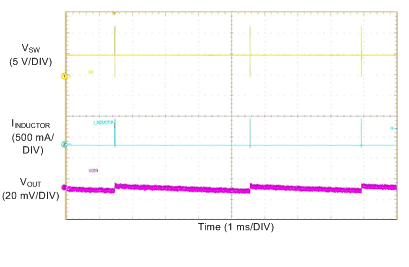

LM76002 LM76003 Switching_waveform_5v_500k_no_load_Auto_mode.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
No Load Auto Mode
Figure 58. LM76003 Switching Waveform and Output Ripple
LM76002 LM76003 Switching-waveform_5v_500k_100mA_load_Auto_mode.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
100-mA Load Auto Mode
Figure 60. LM76003 Switching Waveform and Output Ripple
LM76002 LM76003 Startup_vin12v_3V3_500k_no-load_auto.gif
VIN = 12 V VOUT = 3.3 V fSW = 500 kHz
No Load Auto Mode
Figure 62. LM76003 Start-up Waveform
LM76002 LM76003 Startup_vin12v_5V_500k_no_load_auto.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
No Load Auto Mode
Figure 64. LM76003 Start-up Waveform
LM76002 LM76003 Startup_vin12v_3V3_500k_3a5-load_fpwm.gif
VIN = 12 V VOUT = 3.3 V fSW = 500 kHz
3.5-A Load
Figure 66. LM76003 Start-up Waveform
LM76002 LM76003 Startup_LM76002_5V_500k_no-load_auto.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
No Load Auto Mode
Figure 68. LM76002 Start-up Waveform
LM76002 LM76003 Startup-Prebiased_vin12v-5V-500k_no-load_fpwm.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
No Load Auto Mode
Figure 70. LM76003 Start-up With Pre-Biased Output
LM76002 LM76003 Short-Circuit-Hiccup-behavior.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
Auto Mode
Figure 72. LM76003 Short-Circuit Behavior With Hiccup
LM76002 LM76003 LoadTransient_3V3-500k_10ma-to-3A5-to-10mA_FPWM.gif
VIN = 12 V VOUT = 3.3 V fSW = 500 kHz
10 mA to 3.5 A to 10 mA FPWM Mode
Figure 74. LM76003 Load Transient
LM76002 LM76003 LoadTransient_5V-500k_10ma-to-3A5-to-10mA_FPWM.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
10 mA to 3.5 A to 10 mA FPWM Mode
Figure 76. LM76003 Load Transient
LM76002 LM76003 LoadTransient_5V-1M0_10ma-to-3A5-to-10mA_FPWM.gif
VIN = 12 V VOUT = 5 V fSW = 1000 kHz
10 mA to 3.5 A to 10 mA FPWM Mode
Figure 78. LM76003 Load Transient
LM76002 LM76003 LoadTransient_5V-2M2_10ma-to-3A5-to-10mA_FPWM.gif
VIN = 12 V VOUT = 5 V fSW = 2200 kHz
10 mA to 3.5 A to 10 mA FPWM Mode
Figure 80. LM76003 Load Transient
LM76002 LM76003 LoadTransient_12V-500k_10ma-to-3A5-to-10mA_FPWM.gif
VIN = 24 V VOUT = 12 V fSW = 500 kHz
10 mA to 3.5 A to 10 mA FPWM Mode
Figure 82. LM76003 Load Transient
LM76002 LM76003 Load-Transient_LM76002_5V-500k_10mA-to-2A5-to-10ma_fpwm.gif
VIN = 12 V VOUT = 5 V fSW = 500 kHz
10 mA to 2.5 A to 10 mA FPWM Mode
Figure 84. LM76002 Load Transient
