Typical Applications

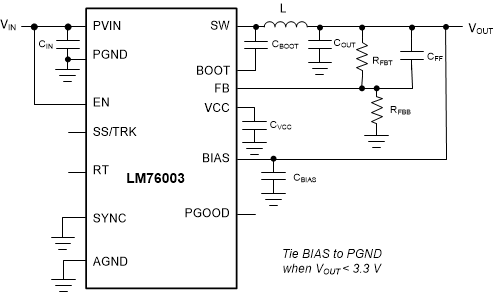

The LM76002/LM76003 only requires a few external components to convert from a wide range of supply voltage to output voltage, as shown in Figure 21:

LM76002 LM76003 snvsak0a-basic-schematic.gifFigure 21. LM76002/LM76003 Basic Schematic

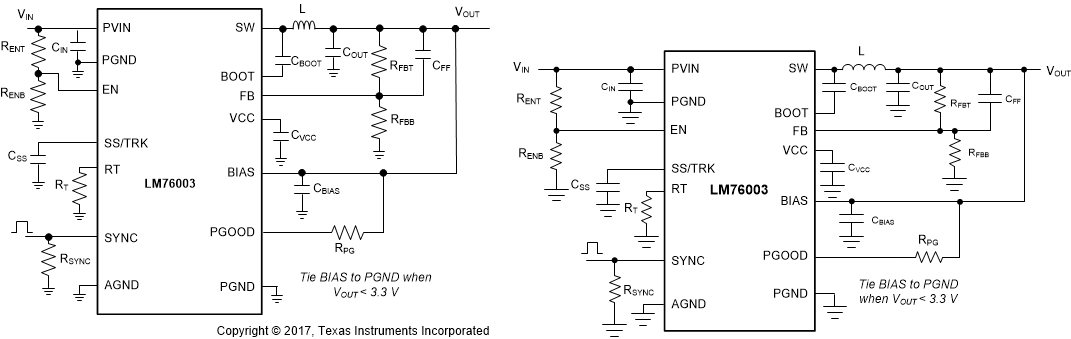

The LM76002/LM76003 also integrates a full list of features to aid system design requirements, such as VCC UVLO, programmable soft start, start-up tracking, programmable switching frequency, clock synchronization, and a power-good indication. Each system can select the features needed in a specific application. A comprehensive schematic with all features utilized is shown in Figure 22:

LM76002 LM76003 snvsak0a-comprehensive-schematic.gifFigure 22. LM76002/LM76003 Comprehensive Schematic

The external components must fulfill the requirements of the application, but also the stability criteria of the device control loop. The LM76002/LM76003 is optimized to work within a range of external components. Inductance and capacitance of the LC output filter each create poles that have to be considered in the control of the converter. Table 2 can be used to simplify the output filter component selection.

Table 2. Typical Component Selection

fSW (kHz) VOUT (V) L (µH) COUT (µF) RFBT (kΩ) RFBB (kΩ)
300 1 2.5 680 100 OPEN
500 1 1.5 470 100 OPEN
1000 1 0.68 200 100 OPEN
2200 1 0.47 120 100 OPEN
300 3.3 6.8 200 100 43.5
500 3.3 4.7 150 100 43.5
1000 3.3 2.5 88 100 43.5
2200 3.3 1.2 44 100 43.5
300 5 10 150 100 25
500 5 6.8 100 100 25
1000 5 3.3 66 100 25
2200 5 1.5 44 100 25
300 12 22 66 100 9.09
500 12 15 44 100 9.09
1000 12 6.8 22 100 9.09
2200 12 3.3 22 100 9.09
300 24 47 40 100 4.37
500 24 27 33 100 4.37
1000 24 15 22 100 4.37
2200 24 6.8 22 100 4.37
