10.2.3 Application Curves

TPS2660 Start-up With Load_48ohm.png
Figure 56. Start-Up With VIN—48-Ω Load
TPS2660 Power Fail with 24ohm Load.png
1.

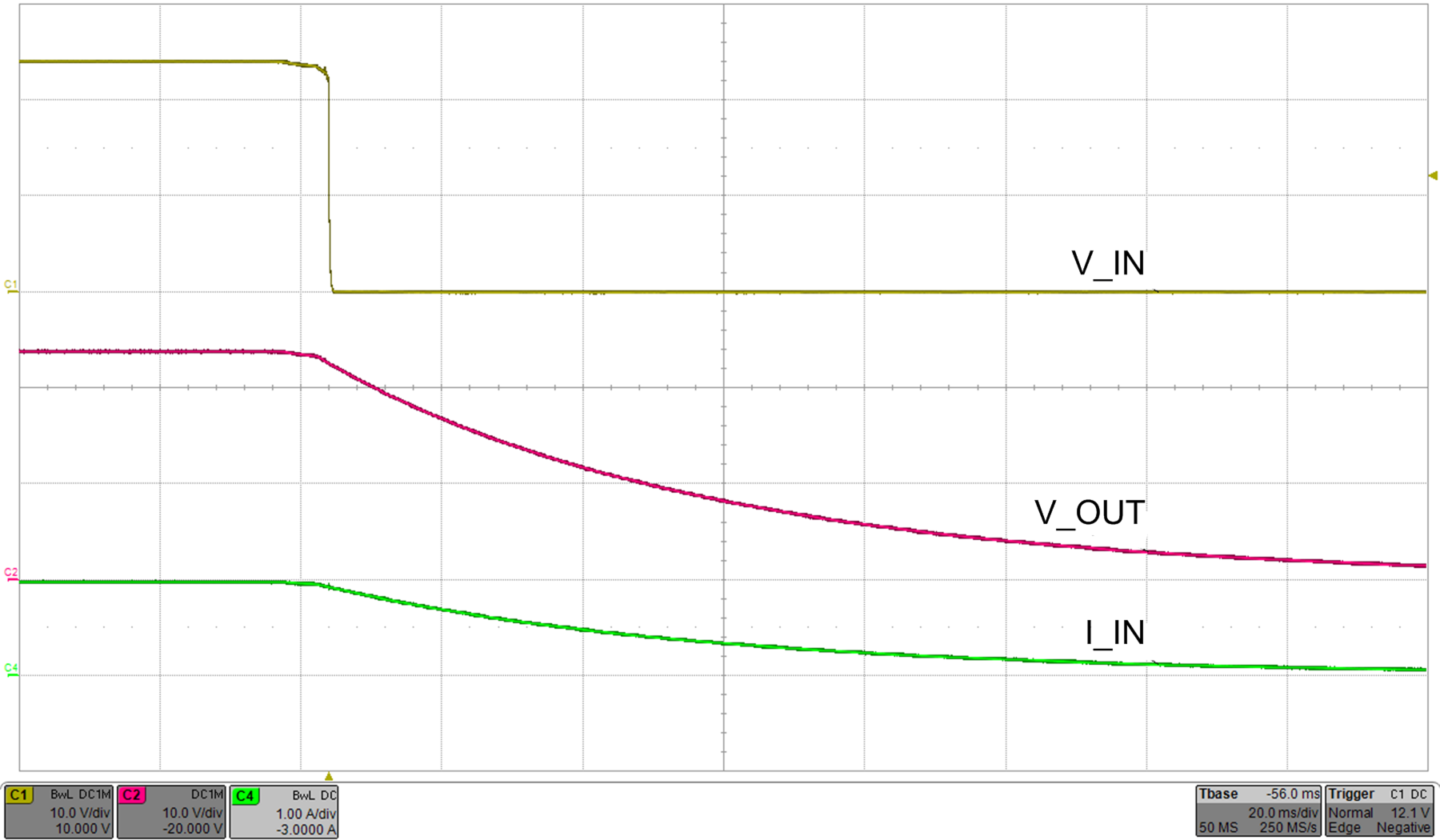

Figure 58. Power Fail With 24-Ω Load—Supports 1-A Load for 10-ms Power Fail
TPS2660 Shutdown with 48ohm load.png

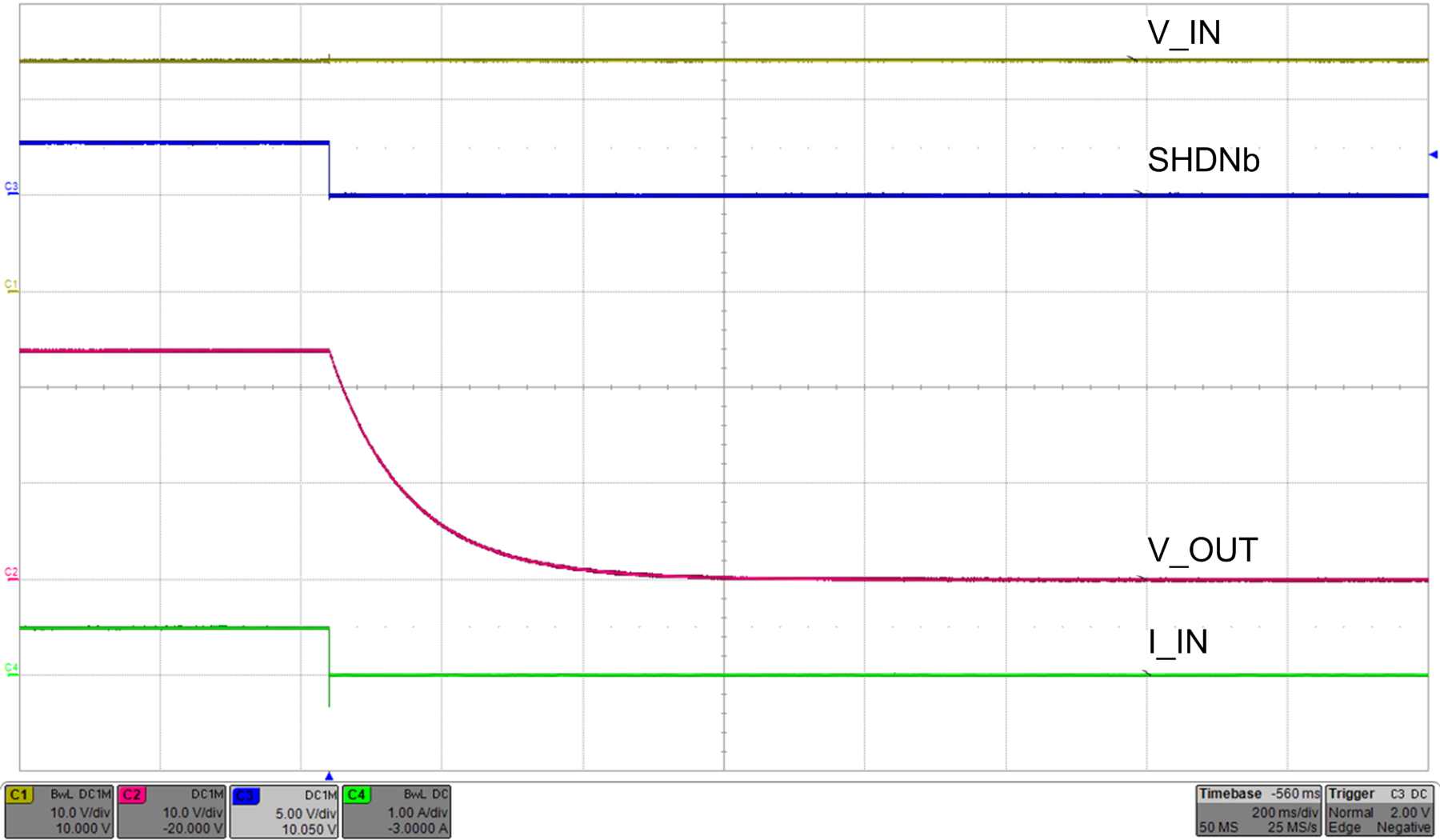

Figure 60. Power Down With Shutdown Pin—48-Ω Load
TPS2660 turnon_with_shortcircuit.png
Figure 62. Turnon With Short Circuit on Output
TPS2660 Start with noload.png
Figure 57. Start-Up With VIN—No Load
TPS2660 Start-up With Shutdown Pin_Load_48ohm.png
1.

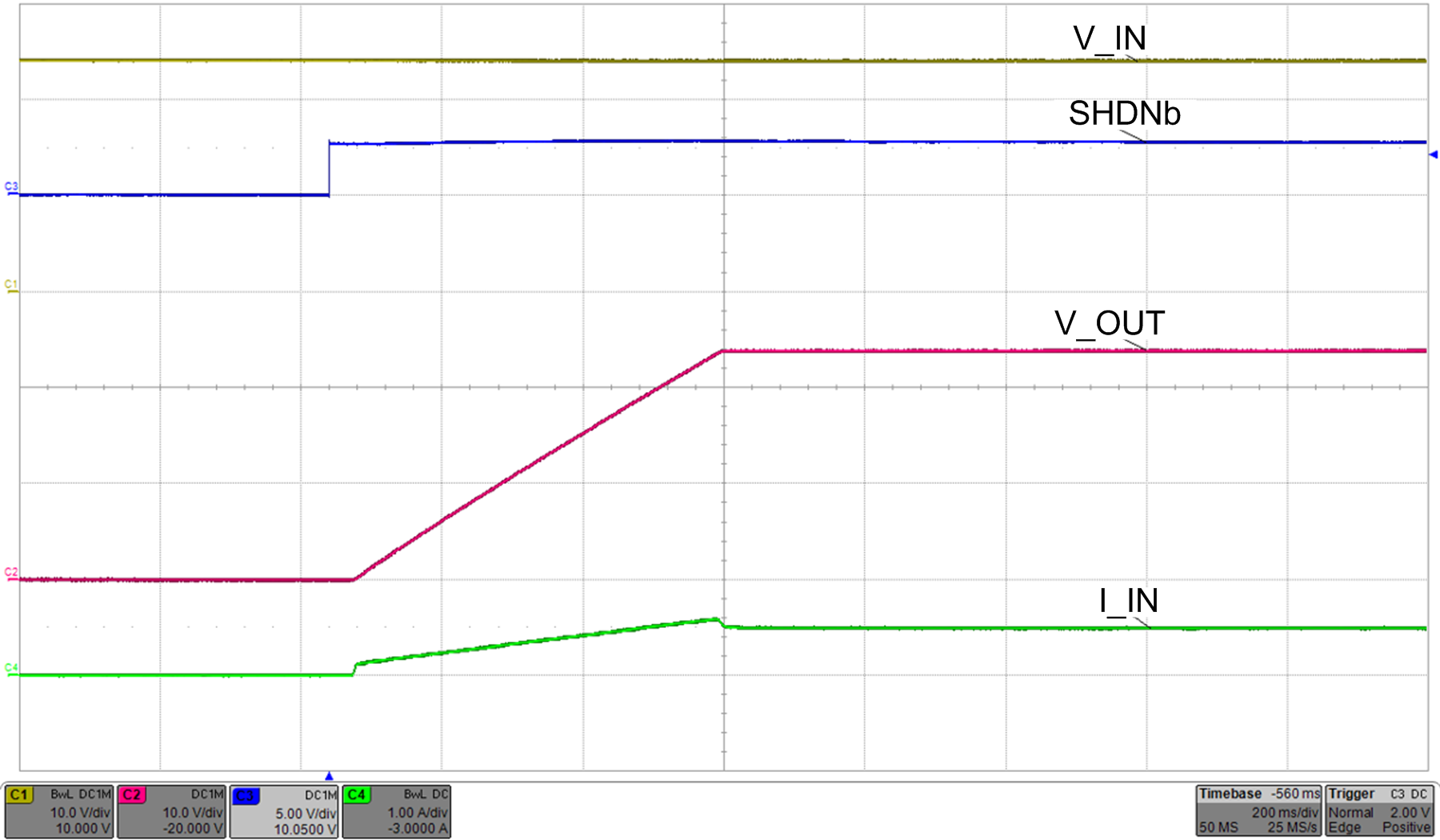

Figure 59. Start-Up With Shutdown Pin—48-Ω Load
TPS2660 overload_response.png

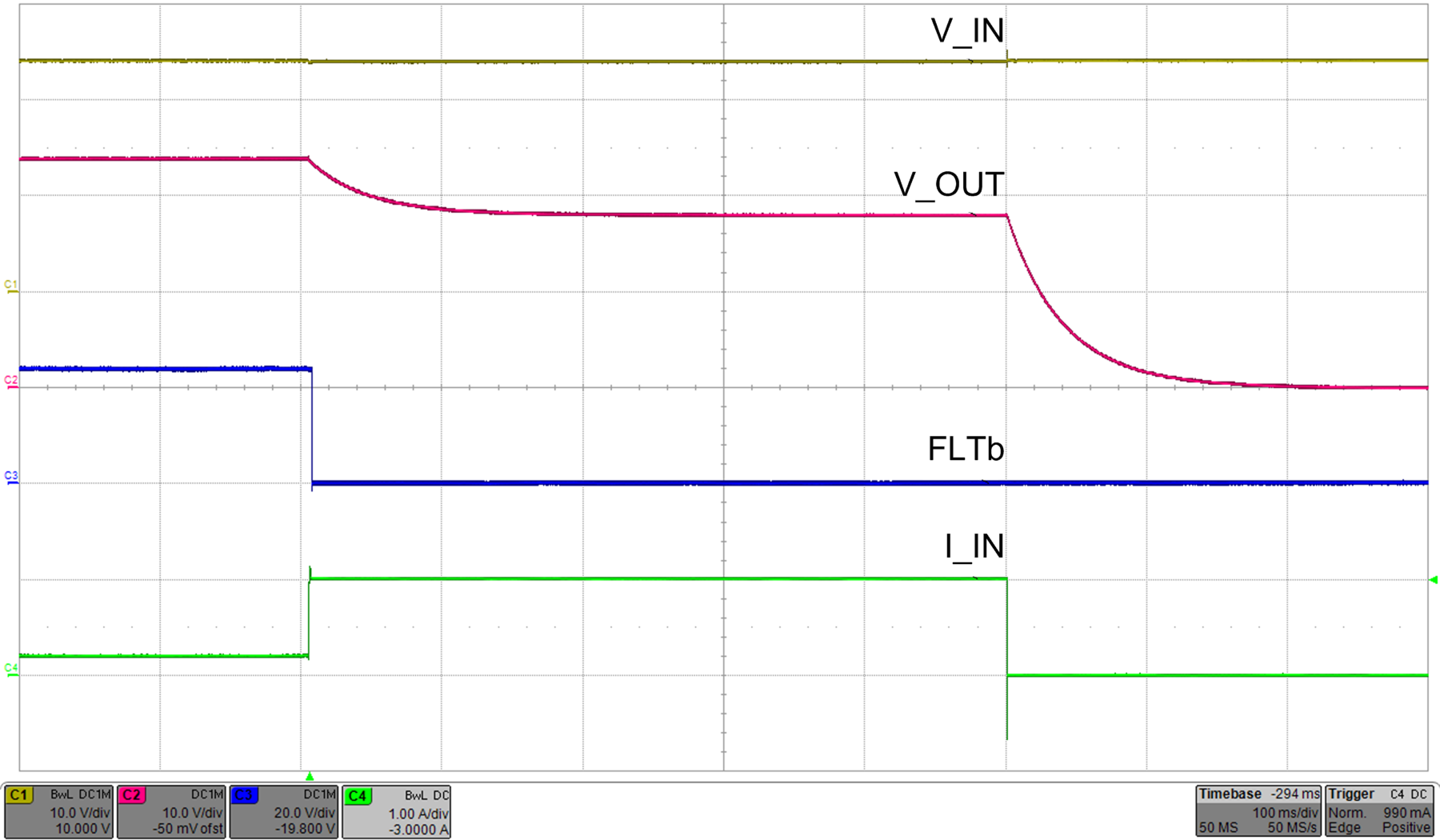

Figure 61. Over Load Response—Load Stepped from
100-Ω to 18-Ω Load
TPS2660 reverse_polarity_detection.png
Figure 63. Reverse Polarity Protection
