4.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

CSD19534KCS Transient Thermal ImpedanceFigure 4-1 Transient Thermal Impedance
CSD19534KCS Saturation Characteristics
Figure 4-2 Saturation Characteristics
CSD19534KCS Gate Charge
ID = 30AVDS = 50V
Figure 4-4 Gate Charge

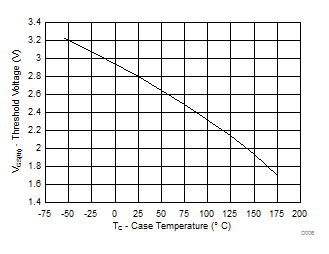

CSD19534KCS Threshold Voltage vs Temperature
ID = 250µA
Figure 4-6 Threshold Voltage vs Temperature
CSD19534KCS Normalized On-State Resistance vs Temperature
ID = 30A
Figure 4-8 Normalized On-State Resistance vs Temperature
CSD19534KCS Maximum Safe Operating Area
Single Pulse, Max RθJC = 1.3°C/W
Figure 4-10 Maximum Safe Operating Area
CSD19534KCS Maximum Drain Current vs Temperature
Figure 4-12 Maximum Drain Current vs Temperature
CSD19534KCS Transfer Characteristics
VDS = 5V
Figure 4-3 Transfer Characteristics
CSD19534KCS Capacitance
Figure 4-5 Capacitance
CSD19534KCS On-State Resistance vs Gate-to-Source Voltage
Figure 4-7 On-State Resistance vs Gate-to-Source Voltage
CSD19534KCS Typical Diode Forward Voltage
Figure 4-9 Typical Diode Forward Voltage
CSD19534KCS Single Pulse Unclamped Inductive Switching
Figure 4-11 Single Pulse Unclamped Inductive Switching
