The following images illustrate the PMP23123 output voltage step waveforms.

Tie J3 pin 1 and J4 pin 1 together. Short and open the J3 and J4 pin, 1. 24-V input. A 2.5-A load is at both the 19-V and 40-V output.

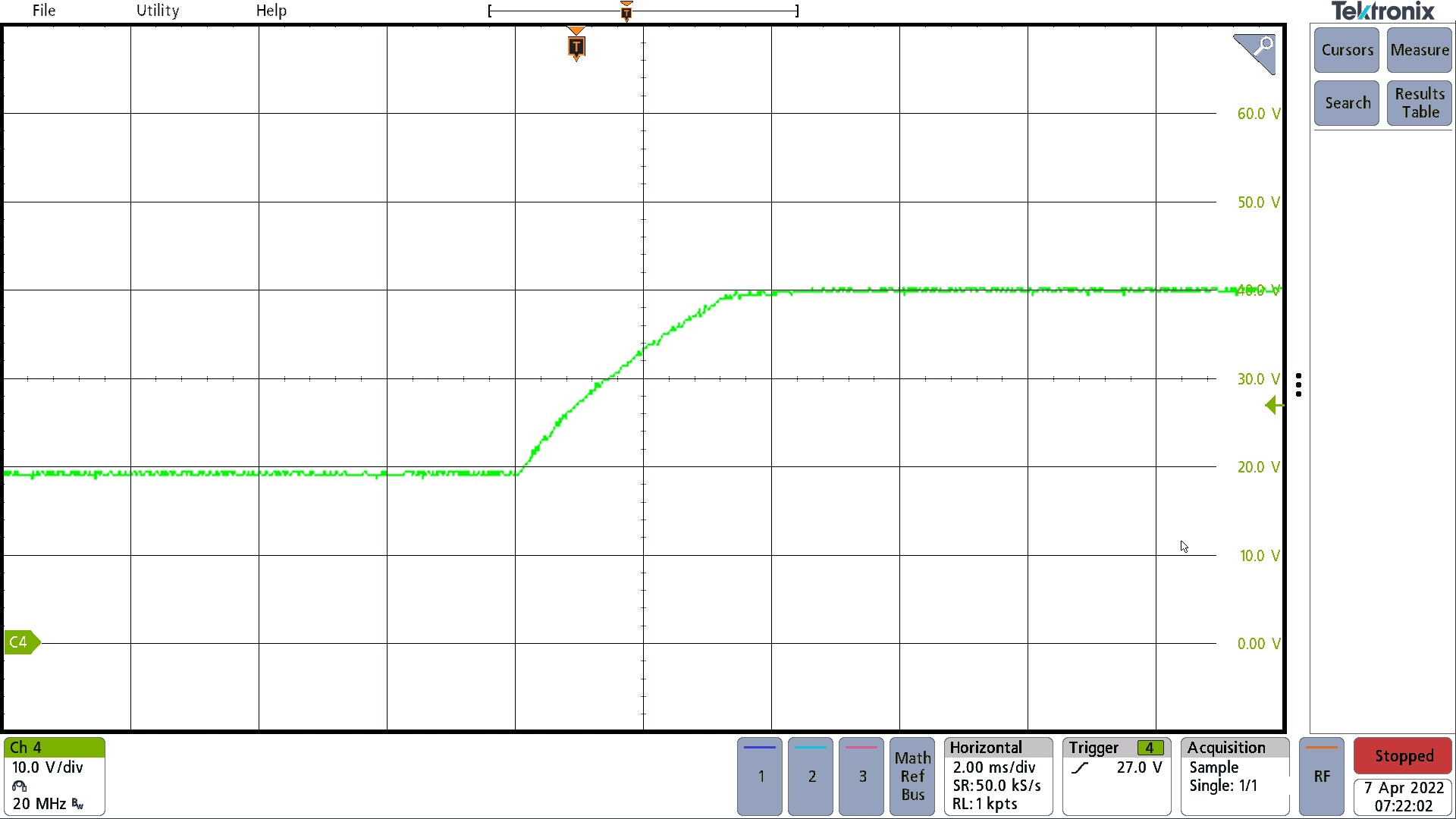

GUID-20220815-SS0I-60TB-JFKM-DSN5TMCSCPWX-low.pngFigure 3-27 19-V to 40-V Output Voltage Transition, 10 V/div, 2 ms/div
GUID-20220815-SS0I-KXTX-KCH5-1JXMSMSSKC0Q-low.pngFigure 3-28 40-V to 19-V Output Voltage Transition. 10 V/div, 2 ms/div
