3 Device Markings

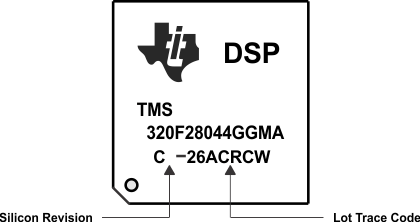

Figure 1 provides an example of the TMS320F28044 device markings and defines each of the markings. The device revision can be determined by the symbols marked on the top of the package as shown in Figure 1. Some prototype devices may have markings different from those illustrated. Figure 2 shows the TMS320F28044 device nomenclature.

TMS320F28044 dev_marks_prz255.gifFigure 1. Example of Device Markings
TMS320F28044 nomenclature_prz255.gifFigure 2. Device Nomenclature

Table 1. Determining Silicon Revision From Lot Trace Code (F28044)

SECOND LETTER
IN PREFIX OF
LOT TRACE CODE		 SILICON REVISION REVISION ID
Address: 0x0883		 F28044 COMMENTS
Blank (no second letter in prefix) Indicates Revision 0 0x0000 This silicon revision is available as TMX or TMS
