Load Regulation

This section provides efficiency plots for the board with LMQ61460AAS populated for Auto mode efficiency and LMQ61460AFS populated for FPWM mode efficiency. For 2.1-MHz data, the output stage has to be changed from the default BOM. The inductor (L1) selected was XEL5030-102MEB.

GUID-D7DEC057-8F32-416F-B0D6-6CC26D48E64B-low.gifFigure 6-15 FSW = 400 kHz, 5 VOUT, Auto Mode

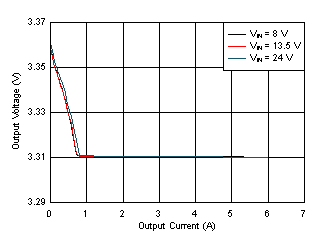

GUID-A3776023-76F6-4283-84C1-BAD70C31D16B-low.gifFigure 6-17 FSW = 400 kHz, 3.3 VOUT, Auto Mode
GUID-08DCA4A2-168F-42A5-A058-5B12C4BD05A0-low.gifFigure 6-19 FSW = 2.1 MHz, 5 VOUT, Auto Mode
GUID-2DFCE3A6-40DB-4846-8D69-A575F9C08508-low.gifFigure 6-21 FSW = 2.1 MHz, 3.3 VOUT, Auto Mode
GUID-D576EDD4-FBFC-4437-92F0-9DB820390B8B-low.gifFigure 6-16 FSW = 400 kHz, 5 VOUT, FPWM Mode

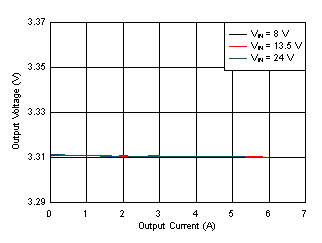

GUID-C522BBB6-6511-4A8F-929C-B5EBC1FC4333-low.gifFigure 6-18 FSW = 400 kHz, 3.3 VOUT, FPWM Mode

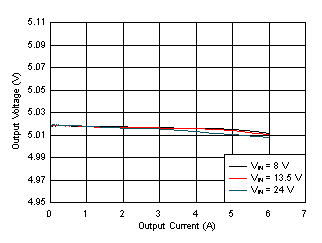

GUID-70B06B04-2E82-40BA-82C4-5C641A23155D-low.gifFigure 6-20 FSW = 2.1 MHz, 5 VOUT, FPWM Mode
GUID-728CB0B5-1329-4C3D-8FF5-ABAEC36D1496-low.gifFigure 6-22 FSW = 2.1 MHz, 3.3 VOUT, FPWM Mode
