6.7 Typical Characteristics

LMG3410R050 LMG3411R050 tDelay.gif

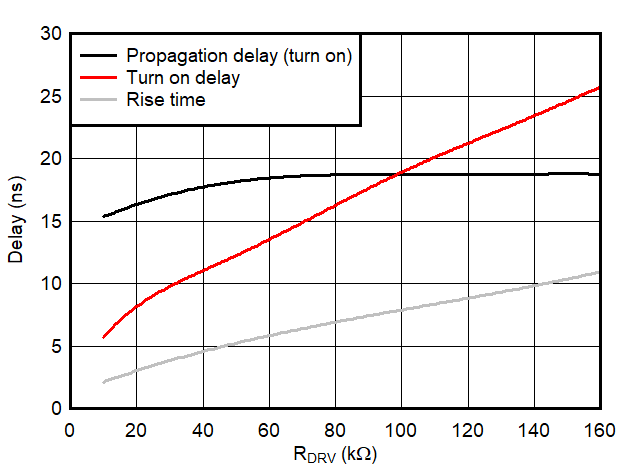

Figure 1. Turn-on Delays vs Drive-Strength Resistor
LMG3410R050 LMG3411R050 IDSVDS_adjusted.gif

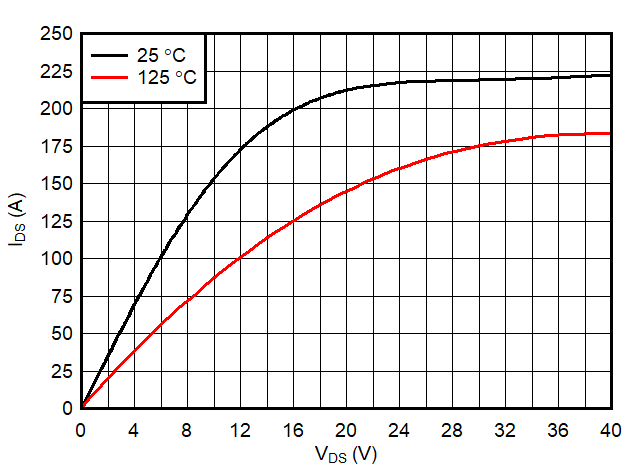

Figure 3. IDS - VDS curve
LMG3410R050 LMG3411R050 RdsonvsTemp.gif
Figure 5. Normalized On Resistance vs Temperature
LMG3410R050 LMG3411R050 Coss_smoothed.gif
Figure 7. Output Capacitance
LMG3410R050 LMG3411R050 Eon_RDRV.gif
Figure 9. Hard-switched Half-Bridge Turn-On Switching Energy vs Slew Rate Resistor

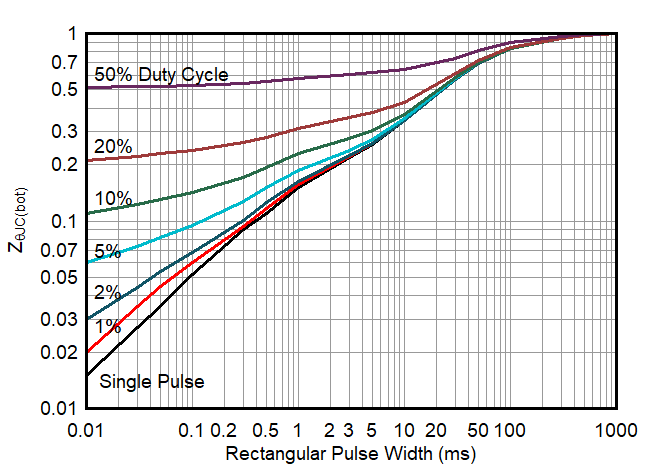

LMG3410R050 LMG3411R050 JP_transient_fixed_2.gifFigure 11. Transient Thermal Impedance
LMG3410R050 LMG3411R050 SlewratevsRdrv.gif
Figure 2. Drain Slew Rate vs Drive-Strength Resistor
LMG3410R050 LMG3411R050 VSDvsISD.gif
Figure 4. Source-Drain Voltage in Third-quadrant Operation
LMG3410R050 LMG3411R050 Ivdd_OPvsFreq.gif

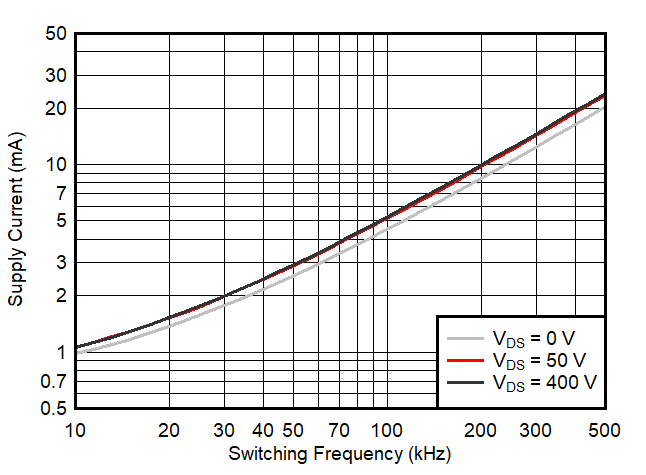

Figure 6. VDD Supply Current vs Switching Frequency
LMG3410R050 LMG3411R050 EonEoff.gif
Figure 8. Hard-switched Half-Bridge Turn-on and Turn-off Switching Energy vs Drain Current
LMG3410R050 LMG3411R050 tblank.gif

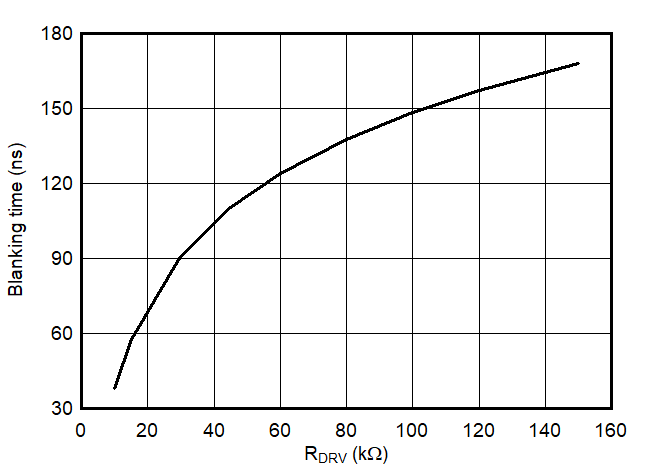

Figure 10. Blanking time vs RDRV
LMG3410R050 LMG3411R050 SOA.gifFigure 12. Safe Operation Area
