2.1 Default Transmit Equalization Coefficients

SAS-3 defines a pair of Reference waveforms, Reference 1 (left side) and Reference 2 (right side). In many cases Reference 1 is used as a starting point for link training.

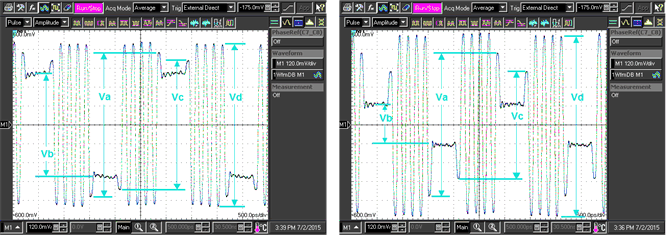

typical_host_transmitter_reference_waveforms_snla236.gifFigure 2. Typical Host Transmitter Reference Waveforms

The voltage specifications for Reference 1 and Reference 2 waveforms are listed in Table 2.

Table 2. SAS-3 Reference Waveform Characteristics

WAVEFORM Va Vb Vc Vd Va/Vb Vc/Vb POST CURSOR PRE CURSOR
Reference 1 1.03 0.725 0.915 1.20 1.42 1.262 -3 dB 2 dB
Reference 2 0.84 0.23 0.61 1.20 3.65 2.652 -11.2 dB 8.5 dB
No Tx Eq 1.20 1.20 1.20 1.20 1 1 0 dB 0 dB
